High Quality Cross-Linked Polyolefin Insulated XLPE Electrical Wire

Name: High Quality Cross-Linked Polyolefin Insulated XLPE Electrical Wire
Brand: all-electronics-online.com
SKU: 830860085
Availability: InStock
Rating: 5 (39 reviews)

Price:	US $ 0.1-0.5/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3265
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	XLPE
Certification:	CSA, Ts16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Sheath Material:	XLPE
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

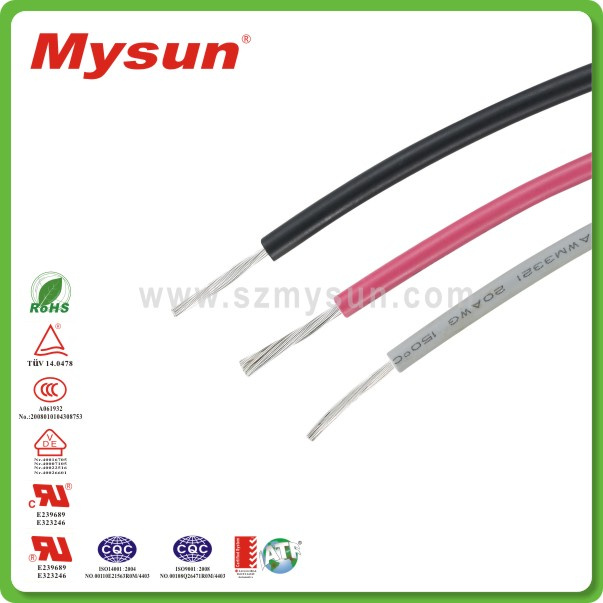

High quality cross-linked polyolefin insulated XLPE Electrical wire

Product Description:

CONDUCTOR			INSULATION		MAX.COND RESISTANCE (Ω/KM)	UNIT LENGTH(M)(Ft)
SIZE (AWG)	CONSTRUCTION (NO./mm)	DIAMETER (mm)	NOMINAL THICKNESS (mm)	DIAMETER (mm)	MAX.COND RESISTANCE (Ω/KM)	UNIT LENGTH(M)(Ft)
32	7/0.08	0.24	0.26	0.76	563	610(2000)
30	7/0.10	0.30		0.82	361
28	7/0.127	0.38		0.90	227
26	7/0.16	0.48		1.00	143	305(1000)
24	11/0.16	0.60		1.12	89.3
22	17/0.16	0.76		1.27	56.4
20	21/0.18	0.94		1.46	35.2
18	16/0.254	1.18		1.70	22.2
16	26/0.254	1.50		2.02	14

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
