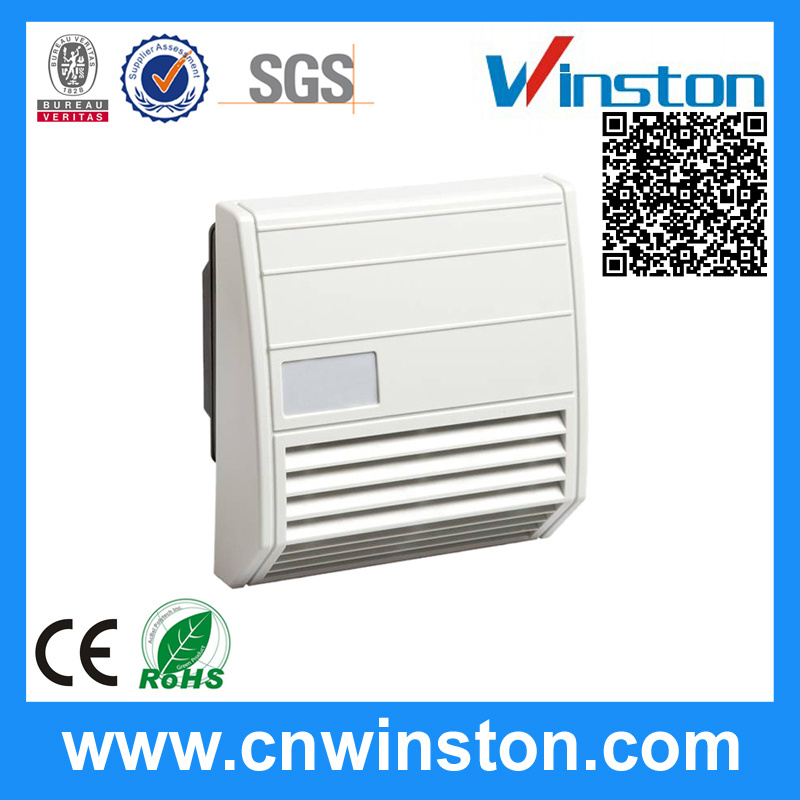

High Quality Different Cfm Mini Industrial Filter Fan with CE
| Price: |
US $ 21.77-27.27/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
FF 018 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Perating Temperature: |
-45 to 70 Degree |
| Controlling Protection Class: |
IP54(Earthed) |
| Voltage: |
AC110V .220V.380V./DC220V.380V |
| Operating Frequency: |
50Hz |
| Power Source: |
Electric |
| Manufacturer: |
OEM |
| Condition: |
Original New |
| Filter: |
Filtering Degree 94% |
| Accuracy: |
100% |
| Usage: |
Air Purifier |
| Certification: |
CE |
| Control Type: |
Mechanical |
| Type: |
Fan Heater |
| Material: |
Plastic |
| Brand: |
Winston |
Product Description
Product Description
The self-adhesive seal of the mounting frame prevents dust and water from entering the cabinet.
Functional design of the intake and exit fan hoods very effectively prevents direct intrusion of falling water and dust. The advantage is that the filter mat does not get so quickly contaminated with dirt and thus does not need to be exchanged so often.
The air channeling makes the filter fan particularly quiet in operation.
Functional and modern design enables time-saving assembly and maintenance. EMC versions and other voltages on request.
The direction of air flow can easily be switched by reversing the axial fan (sizes 1 to 3)
Technic data
Axial fan, ball bearing | service life min.50 000h at 25°C /77°F(65%RH) |
| fan body aluminium, rotor plastic |
| Connection | 2 wires with pressure clamps 2.5mm², length 100mm |
| Casing (filter fan and exit filter) | plastic according to UL94 V-0, light grey |
| Hood (filter fan and exit filter) | plastic according to UL94 V-0, light grey, weather proof and UV light resistant according to UL746C (f1) |
| Mounting frame | with double-side industrial adhesive band for fixing to the outside of enclosure; certain operating circumstances can make the additional use of screws necessary (see drilling template); included in the delivery of the filter fans is a template for the enclosure cut-out. |
| Filter mat | G4 acc. to DIN EN 779, filtering degree 94% |
| Filter material | synthetic fibre with progressive construction, temperature resistant to 100°C, self-extinguishing class F1; moisture resistant to 100% RH; reusable - cleaning by washing or vacuuming |
| Operating/Storage temperature | -45 to +70°C (-40 to +158°F) |
| Protection type/Protection class | IP54 / I (earthed) |
*Using fine filter mats type F5 increases the protection type to Ip55, but reduces the air volume.
Art. No. | Operating voltage | Air volume, free flow | Air volume with exit filter | Current consumption | Power consumption | Average noise level (DIN EN ISO4871) | Depth in enclosure | Enclosure cut-out | Weight (approx.) |
| 01800.0-00 | 230VAC, 50Hz | 21m³/h | 16m³/h | 80mA | 13W | 31dB (A) | 45mm | 97 x 97mm + 0.4 | 0.6kg |
| 01801.0-00 | 230VAC, 50Hz | 55m³/h | 42m³/h | 100mA | 15W | 40dB (A) | 58mm | 125 x 125mm + 0.4 | 1.0kg |
| 01802.0-00 | 230VAC, 50Hz | 102m³/h | 68m³/h | 100mA | 15W | 39dB(A) | 86mm | 176 x 176mm + 0.4 | 1.3kg |
| 01800.0-01 | 120VAC, 60Hz | 24m³/h | 18m³/h | 160mA | 13W | 31dB (A) | 45mm | 97 x 97mm + 0.4 | 0.6kg |
| 01801.0-01 | 120VAC, 60Hz | 63m³/h | 48m³/h | 180mA | 15W | 40dB (A) | 58mm | 125 x 125mm + 0.4 | 1.0kg |
| 01802.0-01 | 120VAC, 60Hz | 117m³/h | 78m³/h | 180mA | 15W | 39dB (A) | 86mm | 176 x 176mm + 0.4 | 1.3kg |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
