High Quality Finned Air Heater Element

Prod Model:	3000W. 230V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Jiangsu, China(Mainland)
Voltage:	220V
Power:	3000W
Diameter:	Customized
Condition:	New
Usage:	Air Heating Elements
Application:	Heater
Structure Material:	Metal Material
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Heating Resistance Wire Inside Heating

Product Description

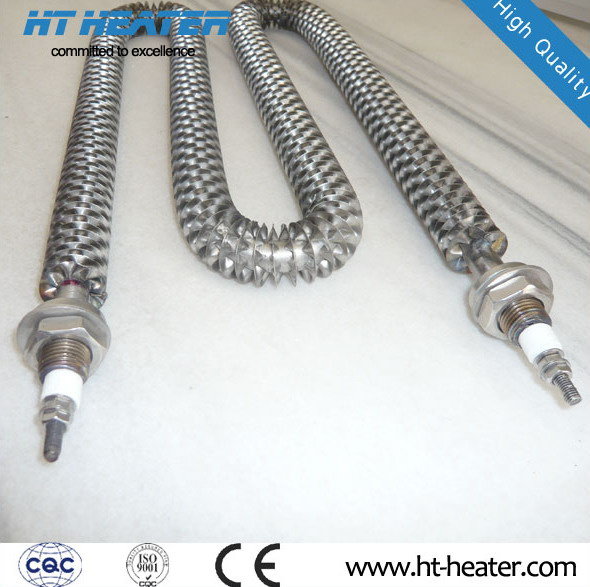

High quality finned air heater element

1 General introduction

The finned armoured heaters have been developed to satisfy the need of temperature controlled air or gas flows which is present in several industrial processes. They are also suitable to keep a closed ambient at a specified temperature. The are designed to be inserted into ventilation ducts or air conditioning plants and are directly flown by the process air or gas. They can also be installed directly inside the ambient to be heated since they are suitable to heat static air or gases. These heaters are finned to increase the heat exchange. However, if the heated fluid contains particles (which could clog the fins) these heaters cannot be used and smooth armoured heaters shall be used in place. The heaters undergo dimensional and electrical controls all along the production phase, as required by the company quality control system for the industrial standard.

2 Products and service

1. CE certification;
2. Small orders are accepted;
3. Factory direct sale;
4. Timely delivery;
5. Samples are available.

3 Features of finned tubular heater

1. Machanically-bonded contiuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities;
2. Several standard formations and mounting bushings available;
3. Standard fin is high temperature painted steel with steel sheath;
4. Optional stainless steel fin with stainless steel or incoloy sheath for corrosion resistance;
5.120V, 220V, 280V, 480V available;

4 Application of finned tubular heater

These heaters are used in the heating of closed areas, in air
Conditioning plants, in the forced ventilation used as part of packaging
Processes and in drying ovens. A proper choice of the construction materials allows to reach fluid operating temperatures up to 120 ~ 200 ° C.
1. Terminal Stud threaded M4 (heaters with 11.2mm diameter sheath) or M3.5 (heaters with 8.2 mm diameter sheath) made of stainless steel
AISI304.
2. Nuts made of stainless steel AISI304.
3. Washer made of stainless steel AISI304.
4. Insulating Bush made of Ceramic Bead.
5. Silicon Sealing suitable for high temperatures.
6. Sheath made of stainless steel 304 or Incoloy 840, particularly suitable for high temperatures.
7. Electric insulation obtained by a high purity MGO powder, suitable for high temperature, with a grains size distribution optimised for this application.
8. Resistive winding spiral made of nickle/chrome 80/20, executed with automatic tools which insure long duration.
9. External fin obtained by wounding a 0.4mm thick ribbon(pitch=5mm) made of stainless steel ANSI 304 (in case of heaters with AISI 304 or Incoloy 804 sheath).
