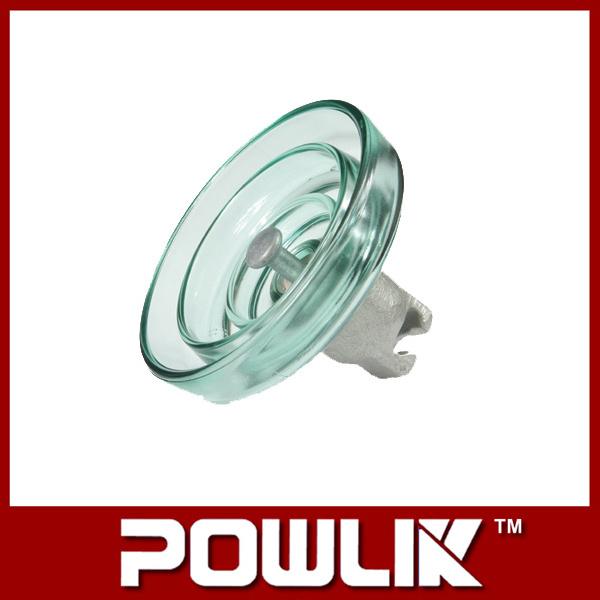

High Quality Fog Type Glass Insulator (LXHP-300)

Name: High Quality Fog Type Glass Insulator (LXHP-300)
Brand: all-electronics-online.com
SKU: 676112565
Availability: InStock
Rating: 4.5 (37 reviews)

Price:	US $ 1.88/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXHP-300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	380mm
Height:	195mm
Creepage Distance:	635mm
Bending Load:	300kn
Application:	High-voltage
Structure:	Suspension Insulator
Material:	Glass
Type:	Suspension
Color:	Glass
Brand:	Powlik

Product Description

High Quality Fog Type Glass Insulator (LXHP-300)

Currency designation	U300BP/195H	U300BP/195H	U300BP/195H
designation	LXHP-300	LXHP2-300	LXHP3-300
( mm ) Diameter D	390	340	380
( mm ) Spacing H	195	195	195
( mm ) Creepage L	690	550	635
( mm ) Socket soupling	24	24	24
( kN ) Mechanical failing load	300	300	300
( kN ) Mechanical routine test	150	150	150
( kV ) Wet power frequency withstand voltage	60	55	60
( kV ) Dry lightning impulse withstand voltage	155	140	155
( P.U ) Impulse puncture voltage	2.8	2.8	2.8
( kV ) Power frequency puncture voltage	* 130	* 130	* 130
( µV ) Radio influence voltage	50	50	50
( kV ) Corona visual test	18/22	18/22	18/22
Power frequency electric arc voltage	0.12s/20kA	0.12s/20kA	0.12s/20kA
( kg ) Net weight per unit	15	12.5	14.5

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
