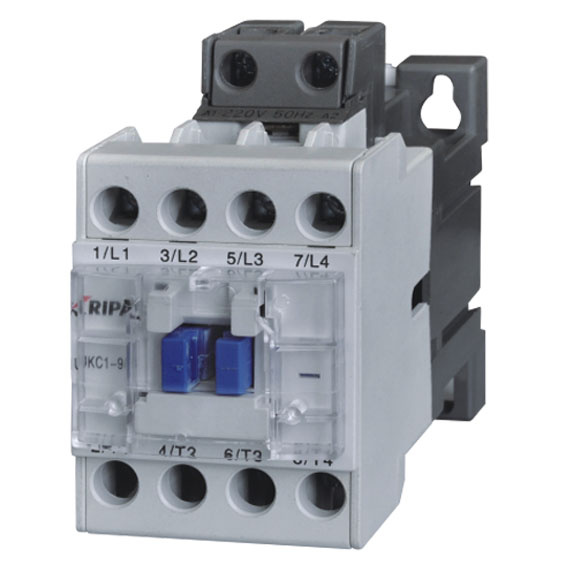

High Quality Gmc-40 Magnetic Contactor AC Contactor

Prod Model:	GMC-40
Service:	ODM OEM
Standard:	IEC 60947-1
Coil Voltage:	24, 48, 110, 220, 230, 240, 380, 415, 440V
Rated Current:	9, 12, 18, 25, 32, 40, 50, 65, 75, 85A,100A,...800
Frequency:	50Hz/60Hz
Delivery Time:	20 Days After Deposit

Product Description

Product Description
GMC series ac contactor is suitable for 50hz or 60hz, with special coil can be used for 40-400hz, voltage to 660V, current to 630A circuit.The GMC series is used for main circuit connected and breaking, and is suitable for the frequent starting of motor and control, can be used with all kinds of relay such as general electric equipment form a complete set, for a variety of electrical equipment, motor, control circuit, but also with auxiliary hoe group, air delay head, mechanical interlocking of mechanical interlocking contactor, star delta starter, and can be assembled into magnetic starter with thermal relay. The Contactor is produced according to IEC60947-4.

ALL Model for this item,

Rated current	AC3(IEC60947)				AC1 lth	Type
	220~240V	380~440V	500~550V	690v
9A	2.5KW 11A	4KW 9A	4KW 7A	4KW 5A	20A	GMC-9
12A	3.5KW 13A	5.5KW 12A	7.5KW 12A	7.5KW 9A	20A	GMC-12
18A	4.5KW 18A	7.5KW 18A	7.5KW 13A	7.5KW 9A	25A	GMC-18
22A	5.5KW 22A	11KW 22A	15KW 22A	15KW 18A	32A	GMC-22
32A	7.5KW 32A	15KW 32A	18.5KW 28A	18.5KW 20A	50A	GMC-32
40A	11KW 40A	18.5KW 40A	22KW 32A	22KW 23A	60A	GMC-40
50A	15KW 55A	22KW 50A	30KW 43A	30KW 28A	80A	GMC-50
65A	18.5KW 65A	30KW 65A	33KW 60A	33KW 35A	100A	GMC-65
75A	22KW 75A	37KW 75A	37KW 64A	37KW 42A	110A	GMC-75
85A	25KW 84A	45KW 85A	45KW 75A	45KW 45A	135A	GMC-85
100A	30KW 105A	55KW 105A	55KW 85A	55KW 65A	150A	GMC-100
120A	37KW 125A	60W 120A	60KW 90A	60KW 70A	150A	GMC-125
150A	45KW 150A	75W 150A	90KW 140A	90KW 100A	200A	GMC-150
180A	55KW 180A	90W 180A	110KW 180A	110KW 120A	230A	GMC-180
220A	75KW 250A	132W 250A	132KW 200A	132KW 150A	260A	GMC-220
330A	110KW 330A	150W 300A	200KW 310A	200KW 200A	400A	GMC-330
400A	110KW 400A	200W 400A	257KW 400A	280KW 305A	500A	GMC-400
500A	147KW 500A	295KW 500A	355KW 450A	335KW 335A	700A	GMC-500
630A	200KW 630A	400KW 630A	400KW 600A	450KW 460A	1000A	GMC-600
800A	220KW 800A	450KW 800A	450KW 650A	475KW 500A	1600A	GMC-800

WHY CHOOSE US:

Fast delivery
Competitive price
Good after-service
OEM/ODM available
Continuance service and support
Quality reliability and long product life.
18-year manufacturing&export experience
Attending more than 5 kinds of international exhibition per year
Do business with world famous company

FAQ
     Q1: Can I get a sample for testing?
           A: Yes, warm-welcomed for sample purchase
     Q2: Can I print my logo on the products?
           A: Yes, OEM and ODM are available.
     Q3: How can I get the after-service?
          A: Full-refund policy in case of bad quality.
     Q4: Do you have inspection procedures for products?
          A: Our products100% self-inspection and testing before packing.
     Q6: How about delivery time of the order?
          A: 15-20 days after getting deposit.
     Q7: How about payment terms?
          A:  30% deposit, the rest payment balance against B/L copy .

We hope we can be your honest supplier in china, in case we do not have chance to serve you in your business, we hope we can be good friends. "Betty Hu" CALL me on +8618267833685
