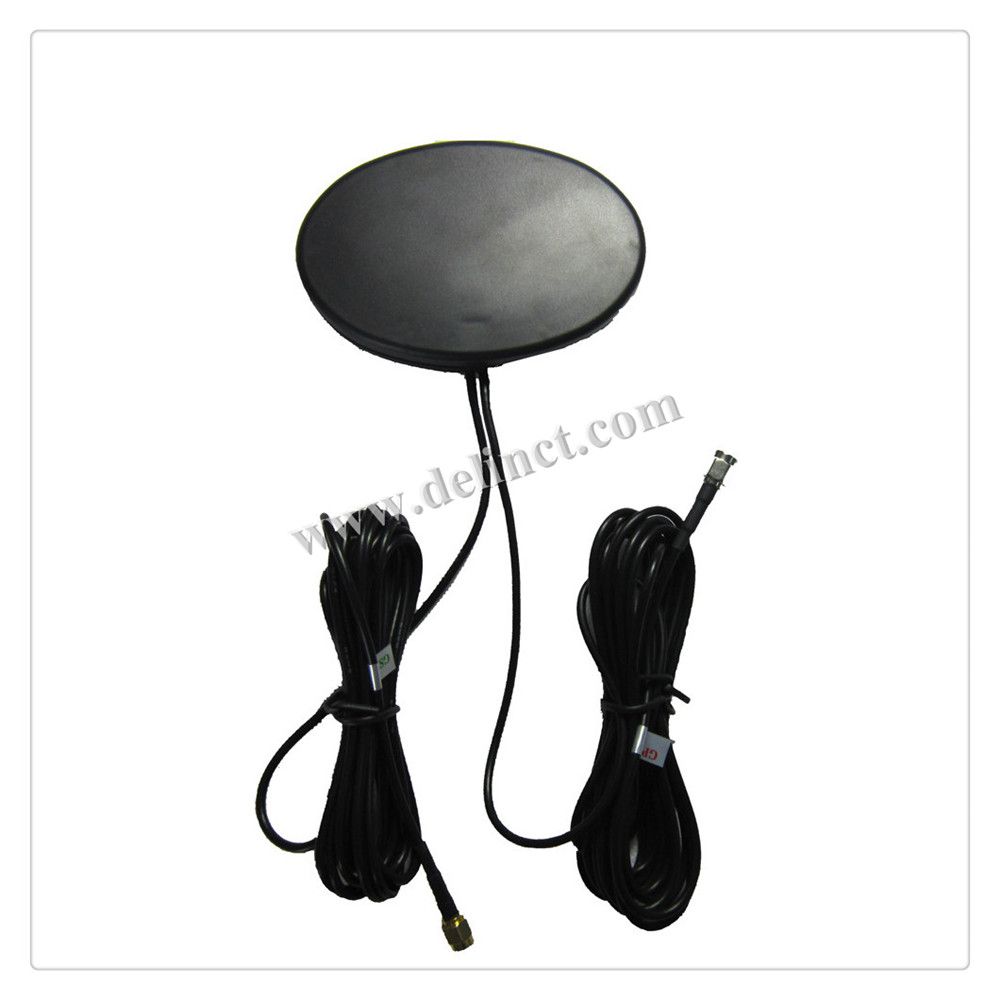

High Quality GPS&Gms Combined Antenna

Name: High Quality GPS&Gms Combined Antenna
Brand: all-electronics-online.com
SKU: 821975635
Availability: InStock
Rating: 4.5 (56 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL-CA-011
Usage:	Car Antenna
Operating Wavelength:	Myriametric Wave
Material:	Cu
Directionality:	Directional Antenna
VSWR:	<1.5

Product Description

Black SMA Our car-carrying GPS/GSM combined antenna can simultaneously receive GPS satellite navigation signal and GSM network signal. High gain, High sensitivity,Stable working . And it has many specifications like tiny size,light weight,sturdy and durable,high accuracy and sensitivity,low power consumption, high reliability . This kind of antenna can use with several kinds of GPS/GSM receivers.
Main technology specifications of GPS/GSM combined antenna:
GPS/GSM combined antenna integrates GPS with GSM with low profile antenna design scheme to make it possible using GPS and GSM at the same time.
Product Appearance
Size: 102*66*21 Mounting: sticking
Weight: <200 Connector:SMA
Color: Black Cable: RG174   3meters
GPS Characteristics
Range of Receiving Frequency: 1575.42±5 (Post Environmental Tolerance ±2.5)
Center Frequency: 1575.42 ( (Post Environmental Tolerance ±3.0)
Retum Loss≤-10dB: (Post Environmental Tolerance )
V.S.W.R: ≤1.5
Gain: 3.0 (Post Environmental Tolerance±0.5)
Axial Ratio(Db) : ≤4
Impedance: 50
GPS Band Aplifier features
Frequency range: 1575.42±5   LNA gain: 28±2
V.S.W.R: ≤2.0 Noise figure: ≤1.5
DC voltage: 3 DC current: 10±1
out-of-band rejection: ≤-25(fo+100MHz); ≤-40(fo-100MHz)
GPS KU Index
Frequency band: 890~960;1720-1920
antenna directivity: dipole
gain: 2
V.S.W.R: ≤2.0;
normal impedance: 50
Polarization:linear polarization
Max input power: 20
Operation Condition
Temperature:-45ºC~+85ºC
Humidity: 95%~100%
Storage Condition
Temperature:-45ºC~+85ºC
Humidity: 95%~100%
