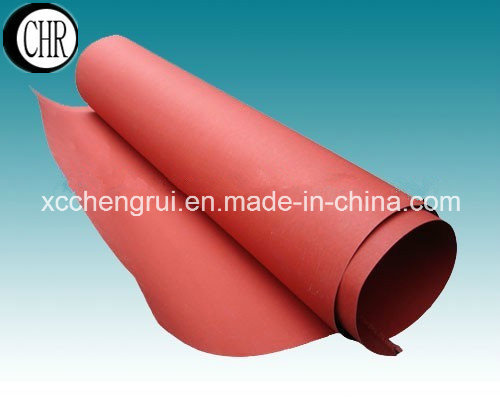

High Quality Grey Red Insulation Vulcanized Fiber

Name: High Quality Grey Red Insulation Vulcanized Fiber
Brand: all-electronics-online.com
SKU: 703632362
Availability: InStock
Rating: 4.8 (116 reviews)

Price:	US $ 3.5kg
Trade Terms:	FOB,CFR,CIF
Min Order:	500kg
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.8mm-2.0mm
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.8mm-2.0mm
Width:	1200mm-1600mm
Density:	1.0-1.45g/cm3
Rated Voltage:	<10 Kv
Application:	Insulating Varnish
Type:	Insulation Paper
Chemistry:	Organic Insulation
Maximum Voltage:	<10KV
Material:	Fiber
Color:	Red,Dark Green
Brand:	Chr

Product Description

Vulcanized fibre is a laminated plastic composed of only cellulose. The material is a tough, resilient, hornlike material that is lighter than aluminium, tougher thanleather, and stiffer than most thermoplastics. The newer wood-laminating grade of vulcanized fibre is used to strengthen wood laminations used in skis,skateboards, support beams and as a sub-laminate under thin wood veneers.

Applications of Vulcanized Fibre

Commercial Grade; standard grey, black or red, used for many applications such as washers, gaskets, gears, handles, etc.
Electrical Grade: high dielectric grey, 100% cotton, very flexible, (historically called fishpaper), this grade is suitable for layer and ground insulation and has variations including top-stick grade used for wedges in small motors.
Trunk Fibre: Tough and abrasion resistant; used to surface steamer trunks, drum cases, wear and skid panels.
Bone Fibre: Exceptionally hard and dense, used for tight machining, tubing, pool cue ferrules (tips), cut out fuses.
Wood Laminating: Tough, multi-directional tensile and torsion strength, provides support and strength wherever wood laminations are used, particularly used under thin and exotic veneers as a stabilizer/strengthener.

Items		Unit	Standard			result
Thickness		mm	0.6±0.05			0.634
Density		g/cm3	0.5mm-0.9mm 1.0mm-2.0mm 2.1mm-5.9mm ≥6.0mm		≥1.1 ≥1.15 ≥1.15 ≥1.20	1.17
Breakdown Voltage (In (23±1)°Ctemperature)		KV/mm	0.5mm-0.9mm		≥6.0	__
			1.0mm-2.0m		≥5.0 ≥3.0

Cross-section tensile strength		kN/m2	0.5mm-0.9mm	MD	≥5.5X104	MD 1.31X105 CMD 6.31X105
				CMD	≥3.5X104
			1.0mm-2.0mm	MD	≥6.0X104
				CMD	≥3.5X104
			2.1mm-3.5mm	MD	≥6.0X104
				CMD	≥4.0X104
			≥6.0mm	MD	≥5.0X104
				CMD	≥3.0X104
Elongation percentage	MD	%	_____			2.1
	CMD		_____			2.6
Volume Resistance		Ω.cm	≥108			1.9x1011
Water Absorption		%	≤65			82.5
Gluing Coefficient		N/m	≥200			231
Zinc chloride content		%	≤0.20			0.07
Moisture content		%	6-10			6.5
Ash content		%	≤2.5			0.59

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
