| Prod Model: |
HLLS- |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Pump Model: |
Hlls- |
| Heat Pump Indoor Power Supply: |
220V/50Hz/1pH |
| Heat Pump Outdoor Power Supply: |
220V/50Hz/1pH / 380V/50Hz/1pH |
| Heat Pump Noise Level: |
Ultra Low |
| Heat Pump Condition: |
New |
| Indoor Unit Weight: |
20kg-50kg |
| Outdoor Unit Dimension: L*W*H: |
443&645&360mm |
| Evaporator Type: |
Tube in Tube Type Heat Exchanger |
| Compressor Type: |
Rotary / Scroll |
| Usage: |
Air Conditioner |
| Certification: |
CE |
| Control Type: |
Digital |
| Type: |
Heat Pump |
| Display Type: |
LED |
| Material: |
Stainless Steel |
| Brand: |
Huali |
Product Description

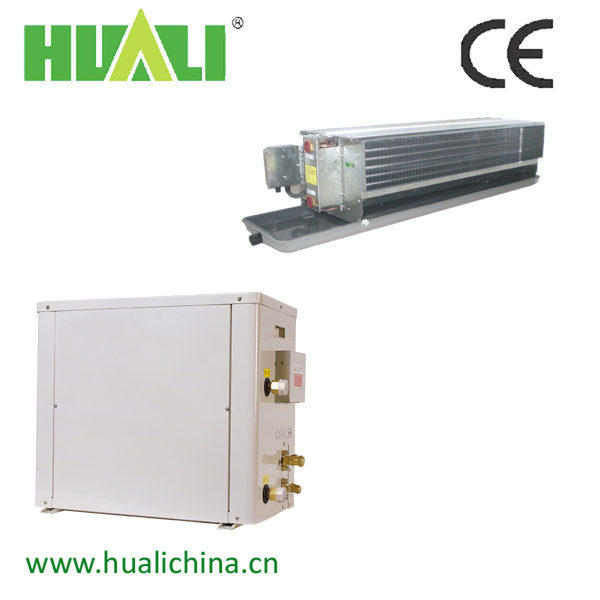

High quality Whole sale Heat Pump,Split Water Source Heat Pump AC
1. Air Coil: Die formed plate type aluminum fins mechanically bonded to high efficiency inner grooved copper tubes.
2. Galvanized steel construction, closed cell foam lined compressor and fan compartments, with an insulated and powder coated drain tray for complete moisture protection.
3. The units are well insulated to minimize condensation and attenuate noise.
4. Units are fitted with a high and low pressure lockout protection.
5. Each unit is intelligently controlled by PC as split model through remote and line control; Or at most 32 units can be controlled centralized also.
6. When the system is used for rent apartment or office building, shops and residential compartments, each unit can have independent ammeter.
Service
1. we can send engineers to hep installation
2. we will keep in touch with the buyers after sales to follow up the use of our machine.
3. The welding workers we employed are qualified with certificate and have more than 10 years working experience in the Refrigeration industrial industry.
4. We have specializing in Refrigeration equipment more than 10 years with may patents
5. Guarantee period:1 year .we promise to replace the parts for free due to damage for non-human factors.
Package and delivery:
1.delivery: Within 35 working days afer we receive the 100% payment.
2. Package: wooden cases or carton cases but it depends on the requirement of you
Model HLLS~ | 25G | 30G | 35G | 40G | 50G | 60G | 70G | 80G | 95G | 100G | 120G | 140G |
| Power supply | Indoor | 220V/ 50HZ/ 1PH |
| Outdoor | 220V/ 50HZ/ 1PH | 380V/ 50HZ/ 3PH |
| Cooling/heating capacity | KW | 2.7/ 3.13 | 3.1/ 3.5 | 3.4/ 3.75 | 4.3/ 4.5 | 5.1/5.4 | 5.7/6 | 7.3/8.4 | 8.1/9.5 | 9.27/12.7 | 10/12.8 | 12.6/15.4 | 14/16.2 |
| Input power (Cooling/heating) | KW | 0.75/ 0.78 | 0.78/0.81 | 0.82/0.9 | 1.0/1.1 | 1.4/1.5 | 1.5/1.6 | 2.1/2.2 | 2.2/2.3 | 2.45/2.84 | 2.6/3 .0 | 3.23/3.86 | 3.4/4.0 |
| Rated current (Cooling/heating) | A | 3.6/3.9 | 3.7/4.0 | 3.8/4.2 | 4.5/5.0 | 7.1/7.4 | 7.3/7.6 | 10.3/11.2 | 11/11.8 | 4.8/5.3 | 5.0/5.4 | 6.0/6.8 | 6.1/7.2 |
| Dimension: L*W*H | mm | 248×665×565 | 248×915×565 | 248×1050×565 | 248×1335×565 | 248×1505×565 | 248×1755×565 |
| Air flow volume | m3/h | 540 | 540 | 580 | 780 | 1010 | 1010 | 1250 | 1250 | 1800 | 1800 | 2200 | 2200 |
| Indoor unit | External Static Pressure | Pa | 30/12 | 30 |
| Noise level | dB(A) | 31/32/33 | 33/34/35 | 34/35/36 | 34/36/38 | 35/37/39 |
| Unit Weight | kg | 20 | 20 | 20 | 27 | 29 | 29 | 35 | 35 | 43 | 43 | 50 | 50 |
| Dimension: L*W*H | mm | 443×645×360 | 535×678×410 |
| Water presure drop | kPa | 16 | 16 | 21 | 35 | 8\33 | 8\33 | 11\12 | 12 | 18 | 18 | 45 | 45 |
| Water flow | m3/h | 0.6 | 0.65 | 0.75 | 0.85 | 1.2 | 1.2\1.25 | 1.5 | 1.6 | 2 | 2.2 | 2.7 | 2.8 |
