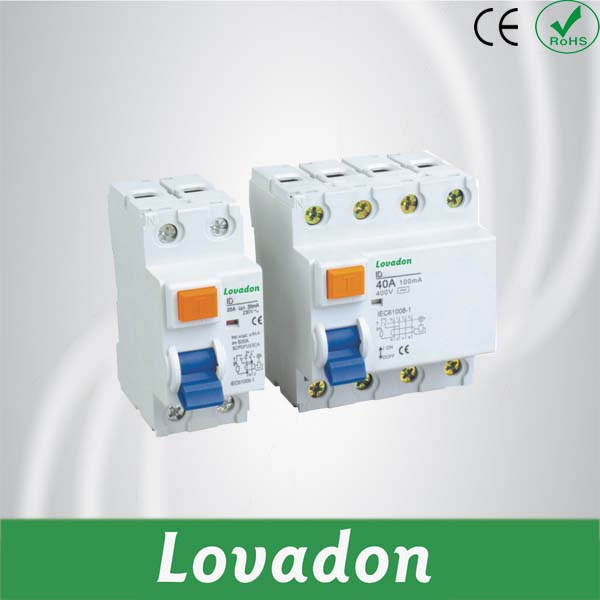

High Quality ID Series RCCB Residual Current Circuit Breaker

Name: High Quality ID Series RCCB Residual Current Circuit Breaker
Brand: all-electronics-online.com
SKU: 684076962
Availability: InStock
Rating: 4.7 (38 reviews)

Price:	US $ 5-7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ID
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage Ue:	230/400
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CE
Breaking Capacity:	4.5 Ka 6ka 10ka
Operation:	Electrical Type / Magnetic Type
Installation:	DIN Type
Structure:	RCCB
Poles Number:	2p,4p

Product Description

ID RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk,thus,it is suitable to avoid the shock hazard and fire caused by earth leakage.
The RCCB is mainly suitable for use in varieties of plants and enterprises,building constructon 1 phase 230V and 3 phase 400V 50/60Hz.RCCB is not suitable for use in DC pulse system.

Electrical Feature	Standard		IEC61008-1
	Type(wave form of the earth leakage sensed)		AC,A
	Rated current In	A	25,40,63
	Poles	P	2,4
	Rated voltage Ue	V	230/400
	Rated sensitivity I n	A	0.03,0.1,0.3 0.5
	Insulation voltage Ui	V	500
	Rated residual making and	A	500(In=25A/40A)
	breaking capacity I m		630(In=63A)
	Short-circuit current I c	A	6000/10000
	SCPD fuse	A	10000
	Break time under I n	s	<0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage(1.2/50)Uimp	V	6000
	Dielectric test voltage at ind Freq for 1 min	kV	2.5
	Pollution degree		2
MechanicaI features	Electrical life	t	4000
	MechanicaI Iife	t	20000
	Fault current indicator		Yes
	Protection degree		IP20
	Ambient temperature	C	-5~+40
	(with daily average 35 )

It is found wide use to protect residual, functional industrial buildings and hotels etc. Against earth leakage, insulation fault and fire accident caused by direct or indirect contact with electric parts(including human or other animal getting a electric shock.)
It will trip free under rated value, or current delay angle of 0°,90°,135° residual pulsating direc current, or pile pulsating direct current up to 0.006A direct current.
