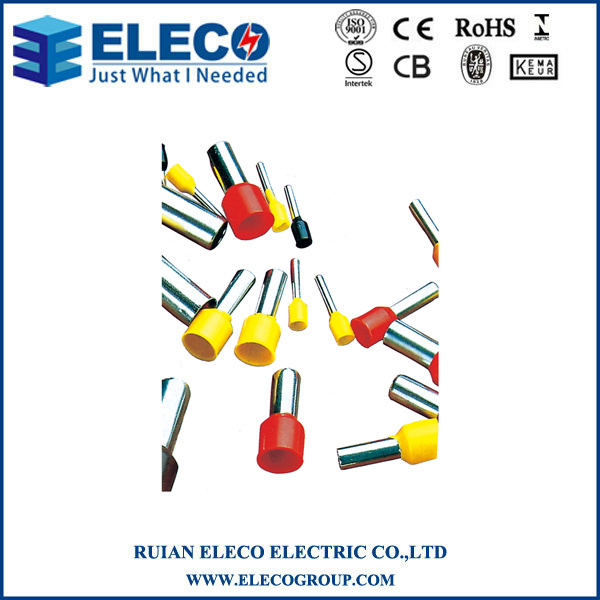

High Quality Insulated Core End Terminals

Prod Model:	Insulated Core End Terminals
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Sq. Mm.:	1.5,2.5,4,6,10,16
Stud Hole E:	4.2,5.2,6.5,4.2
Feature:	High Wall Thickness, Giving Termination
Finish:	Electro-Tin Plated for Operating Temperature 150
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Eleco

Product Description

Application

Item No.	Dimension						A.W.G	mm2	Insulation color
	F(mm)	L(mm)	W(mm)	B(mm)	D(mm)	C(mm)
E0506	6.0	12.0	2.6	6.0	1.3	1.0	#22	0.5	Orange White
E0508	8.0	14.0
E0510	10.0	16.0
E0512	12.0	18.0
E7506	6.0	12.4	2.8	6.4	1.5	1.2	#20	0.75	White Blue
E7508	8.0	14.6
E7510	10.0	16.4
E7512	12.0	18.4
E7518	18.0	24.4
E1006	6.0	12.4	3.0	6.4	1.7	1.4	#18	1.0	Yellow Red
E1008	8.0	14.6
E1010	10.0	16.4
E1012	12.0	18.4
E1508	8.0	14.6	3.5	6.4	2.0	1.7	#16	1.5	Red Blue
E1510	10.0	16.4
E1518	18.0	24.4
E2508	8.0	15.2	4.0	7.5	2.6	2.3	#14	2.5	Blue Grey
E2512	12.0	19.0
E2518	18.0	25.0
E4009	9.0	16.5	4.4	7.5	3.2	2.8	#12	4.0	Grey Qrange
E4012	12.0	19.5
E4018	18.0	25.5
E6012	12.0	20.0	6.3	8.0	3.9	3.5	#10	6.3	Black Green
E6018	18.0	26.0
E10-12	12.0	21.5	7.6	9.5	4.9	4.5	#7	10.0	Milky white Brown green
E10-18	18.0	27.5
E16-12	12.0	22.0	8.8	10.2	6.2	5.8	#5	16.0	Green Milky white
E16-18	18.0	28.2
E25-16	16.0	29.0	11.2	13.0	7.9	7.5	#4	25.0	Brown green Black
E25-22	22.0	35.0
E35-16	16.0	30.0	12.7	14.0	8.7	8.3	#2	35.0	Greyish Brown
E35-25	25.0	39.0
E50-20	20.0	36.0	15.3	16.0	10.9	10.3	#1	50.0	Olive
E50-25	25.0	41.0
