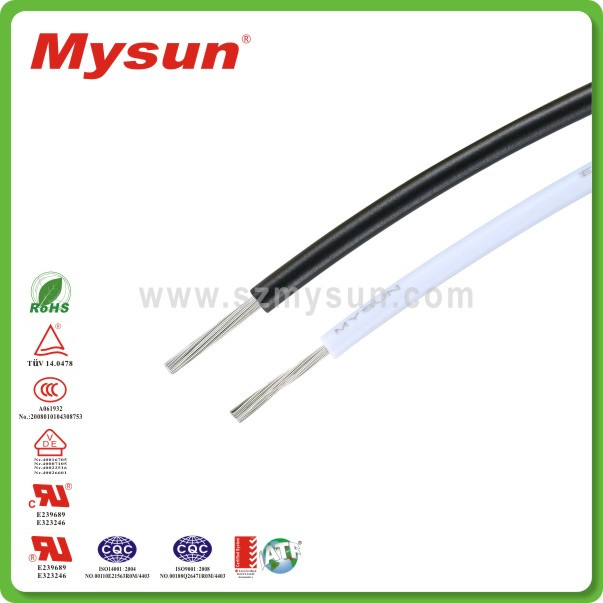

High Quality Insulated Stranded PVC Electrical Wire for Home Appliance

Name: High Quality Insulated Stranded PVC Electrical Wire for Home Appliance
Brand: all-electronics-online.com
SKU: 832017755
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	US $ 0.05-0.21/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3351
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	PVC
Certification:	CSA, Iatf16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

High quality insulated stranded PVC Electrical wire for home appliance

Product Description:

CSA Type	Conductor		Insulation thickness	Overall Diameter	Standard put-up		Conductor Resistance at 20°C
CSA Type	AWG	No./mm	mm	mm	ft/coil	m/coil	ohm/kft
UL 1015 (Stranded)	26	7/0.160	0.76	2.10±0.10	2000	610	45.20
	24	11/0.160		2.25±0.10	2000	610	29.30
	22	17/0.160		2.40±0.10	2000	610	16.70
	20	21/0.180		2.55±0.10	2000	610	10.50
	18	34/0.180		2.80±0.10	2000	610	6.64
	16	26/0.254		3.10±0.10	1000	305	4.18
	14	41/0.254		3.50±0.10	1000	305	2.62
	12	65/0.254		3.90±0.10	1000	305	1.65
	10	105/0.254		5.10±0.10	1000	305	1.04
UL 1015 (Top-coated)	22	7/0.254	0.76	2.38±0.10	2000	610	16.70
	20	7/0.320		2.55±0.10	2000	610	10.40
	18	7/0.404		2.80±0.10	2000	610	7.06
UL 1015 (Solid)	26	1/0.404	0.76	2.00±0.10	2000	610	43.53
	24	1/0.511		2.10±0.10	2000	610	27.25
	22	1/0.643		2.25±0.10	2000	610	16.50
	20	1/0.813		2.40±0.10	2000	610	10.30
	18	1/1.024		2.65±0.10	2000	610	6.25
	16	1/1.290		2.90±0.10	1000	305	4.10
	14	1/1.630		3.25±0.10	1000	305	2.57
	12	1/2.050		3.65±0.10	1000	305	1.62
	10	1/2.588		4.20±0.10	1000	305	1.02

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days

About us:

Shenzhen MYSUN Insulation Materials Co. Ltd. is a comprehensive enterprise integrated with manufacture, distribution and trade. We specialize in production of all sorts of wire of high temperature and connecting which have been subjected to test of UL, cUL, VED, CE, CCC and SGS, and supply enterprises such as home appliance, electronics, lighting and so on with connecting wiring harness and processing service.

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
