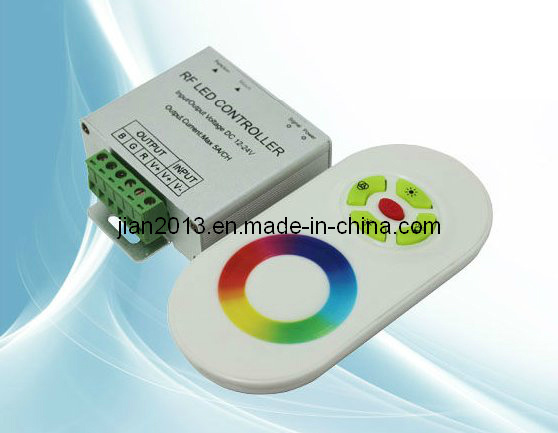

High Quality LED RGB Touch Controller

Name: High Quality LED RGB Touch Controller
Brand: all-electronics-online.com
SKU: 689245982
Availability: InStock
Rating: 4.4 (135 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JA-RF301
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Load Power:	288W
Weight:	185g
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Rubber
Battery Type:	AAA Battery

Product Description

Specifications

RGB controller
1. High quality and best servie
2. Touch 60 kinds of color mode select
3. All kinds of use
4. CE ROHS

RGB Touch controller

Technical Parameters

Controller

Working temperature: -20-60° C
Supply voltage: DC12V-24V
Output: 3 channels
Connection mode: Common anode
External dimension: L84 * W64 * H23mm
Packing size: L200 * W146 * H36mm
Net weight: 78g
Gross weight: 200g
Static power consumption: <1W
Output current: <5A (each channel)
Output power: 12V: <180W, 24V: <360W

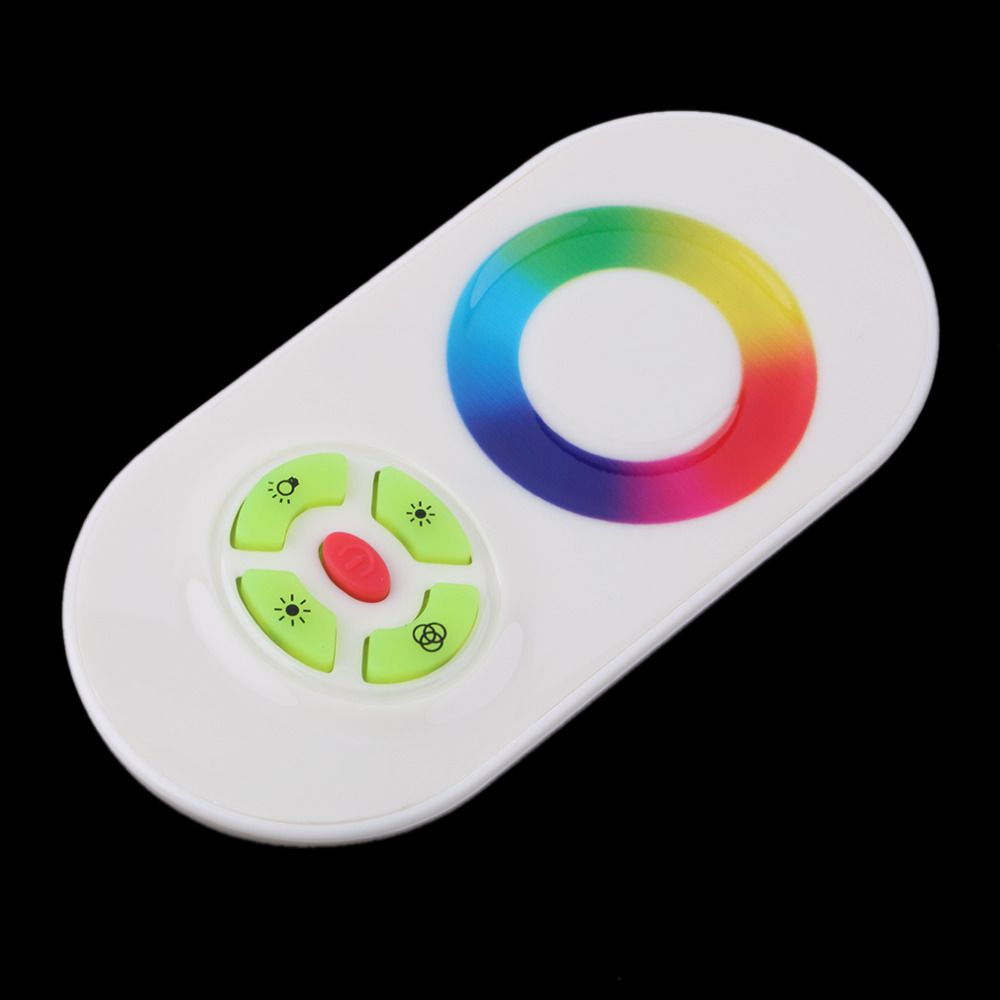

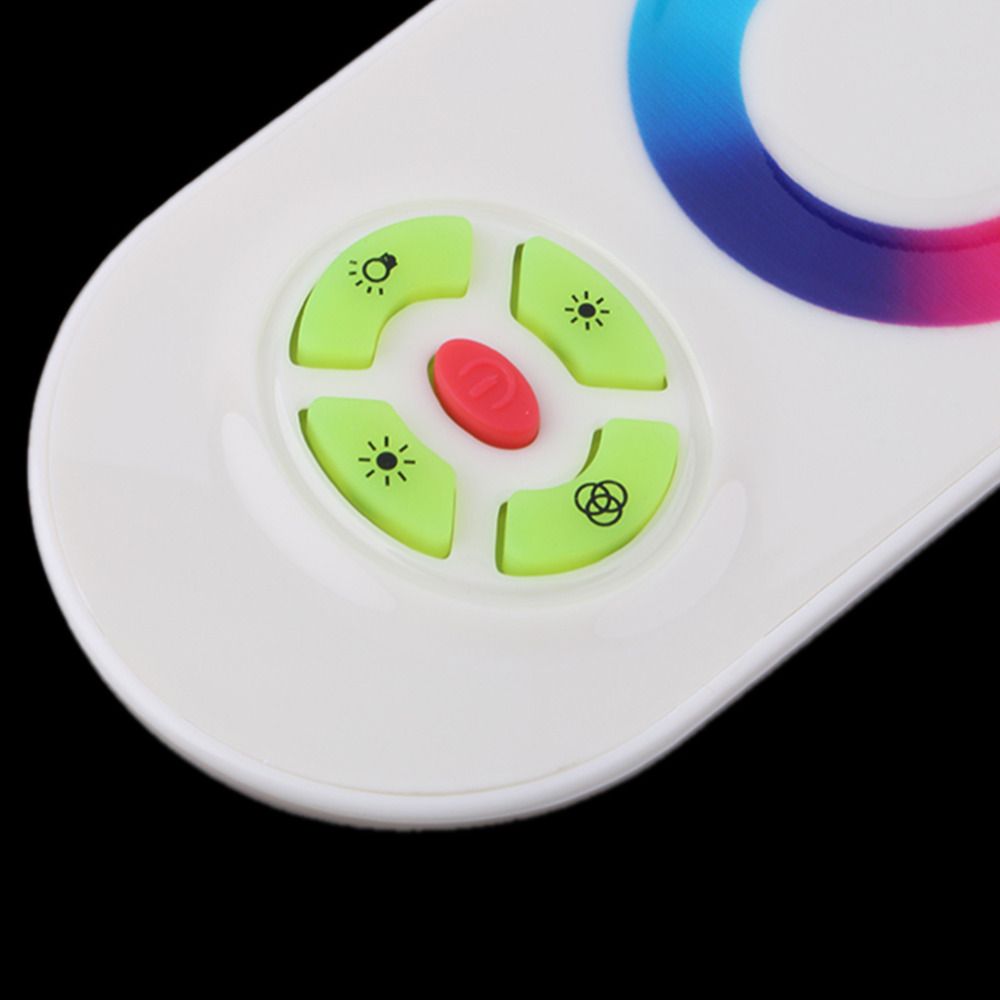

Touch Remote Control

Working temperature: -20-60° C
Power supply mode: AAA * 3
Supply voltage: 1.5V * 3
Transmission frequency: 433.92 Mhz
Standby power consumption: 0.015mW
Standby current: 3uA
Working current: 200uA
Emission current: 10mA
Remote distance: About 30m
Standby time: 6 months
Remote control weight: 85g

Summarization

Five key touch controller is wireless small volume controller which newly introduced by our company,
Touch remote control adopts high precision capacitance touch control technology, you can select the
Color you need by one button. It is convenient and easy. It is used for controlling a variety of lamp
Whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp,
Glass wall light etc. It has many advantages such as convenient to connect, easy to use and others.
According to the actual need of customers, it can carry out jumpy changing, gradual changing,
Stroboflash and other effects of change.

Model Number: JA-RF301

Length: L84 * W64 * H23mm

Rated Power: 360W

Holiday Name: any day

Voltage: DC12V-24V

output current: <5A (each channel)

supply voltage: DC12-24V

gross weight:: 200g

remote distance: 30m

transmission frequency: 433.92 Mhz

Tianjin Zhongyijian Technology Co., Ltd. Is a high technology enterprise located in Tianjin, China. Being a professional manufacturer, it is dedicated in designing, manufacturing and marketing of LED products.

Our products cover a wide range from components to finished products: LED flashlight, LED grow lamp, LED auto lamp, LED Strip, LED indoor light, LED panel light, LED floodlight, LED Bay light, LED outdoor light, LED Tube, LED auto lamp, LED Ceiling Lamp, LED underwater light, LED Acoustic Control Lamp and other related products, all our products comply with CE standards and RoHS Directives. Besides, we are also able to meet customer's special demands, if the customer has any idea about the LED light, we can realize it to products for you.

With the professional R & D engineers, advanced equipments, skillful workers, strict quality control system, excellent after-sales service, we provide to our customers high quality products with competitive price, more than 80% of our products are exported to international market, such as Italy, Germany, America, Australia, Sweden, United Kingdom, Norway etc., we have gained a good reputation from our customers in the world and established long term cooperation with them.

We believe that quality, price and service are the most important elements for the product, "TOTAL CUSTOMER SATISFACTION WITH OUR FULL HONESTY" is the principle of our enterprise, we hope to become your business partner and make mutual benefits together with you.
