| Prod Model: |
LM12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Lm12 |
| Output: |
Switching Sensor |
| Usage: |
Position Sensor |
| Theory: |
Magnetic Sensor |
Product Description

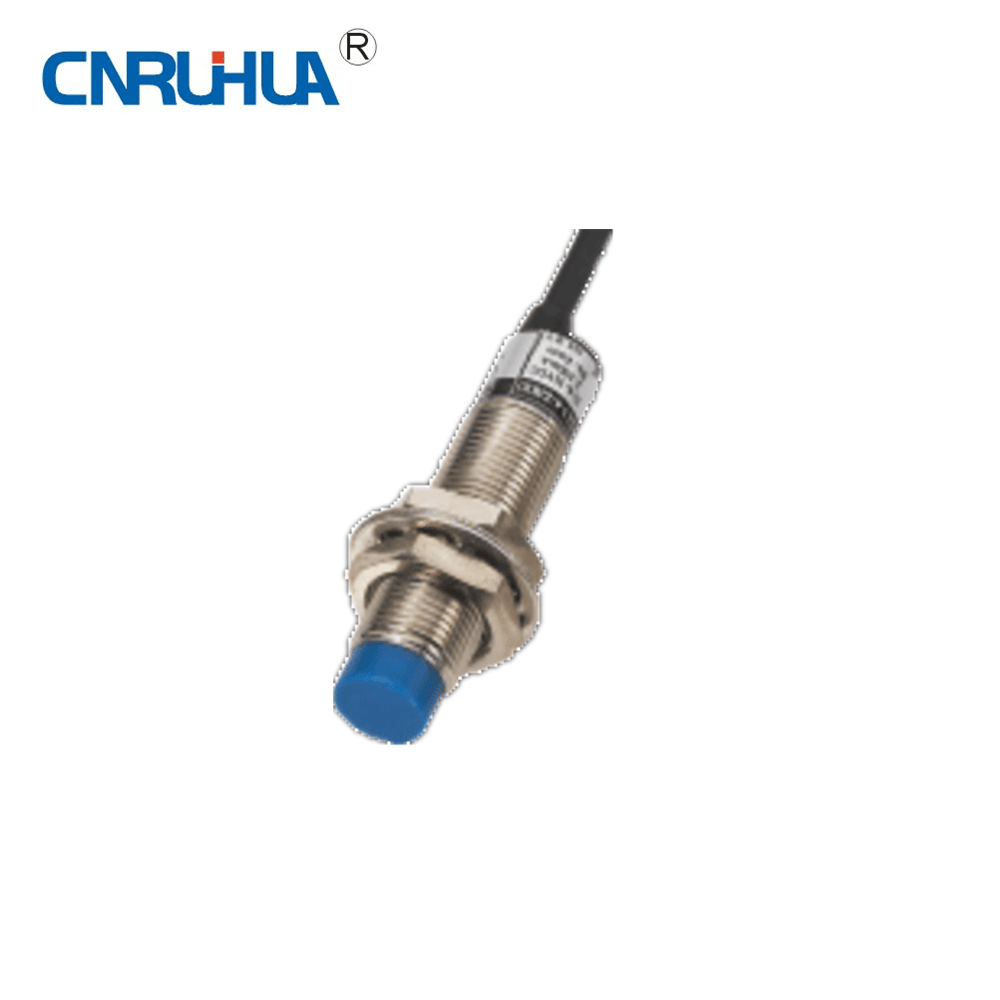

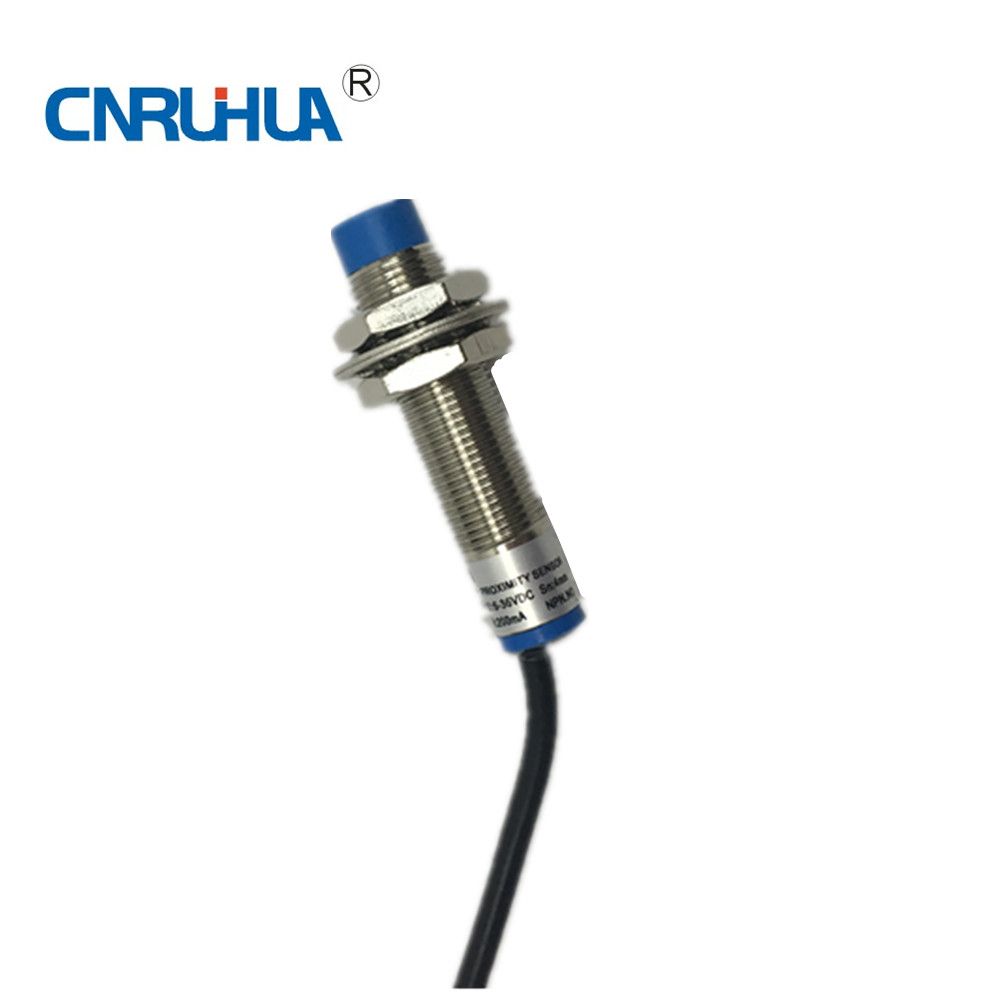

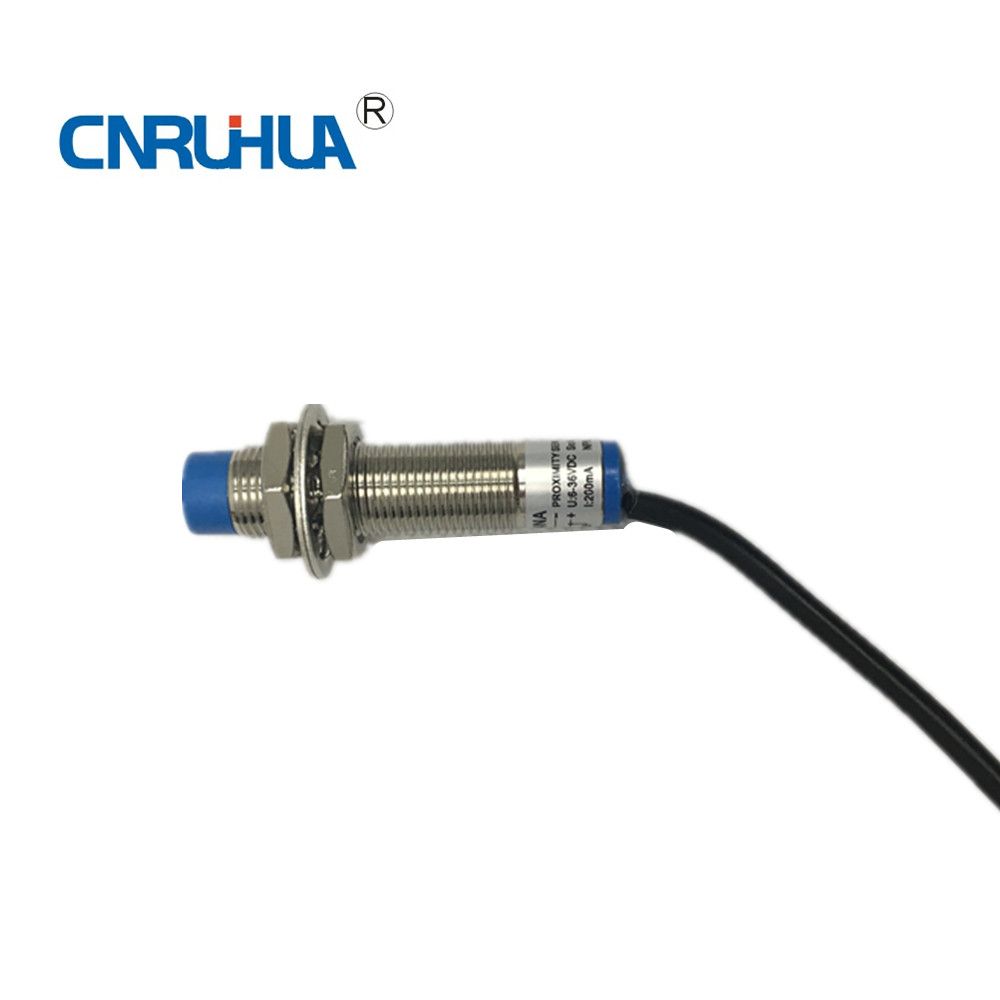

LM12 Cylinder type inductance switch
CE, OEM, ODM
Long service life
High on-off frequency
Dust proof
LM12 Cylinder type inductance switch
Main features:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Model explanation of proximity switch
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)
5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)
Technical Parameters:
| INDUCTIVE PROXIMITY SWITCH |
| Structural category | Cylinder type |
| Outward appearance code | LM12 |
| Appearance | |
|
|
|
|
|
|
|
|
|

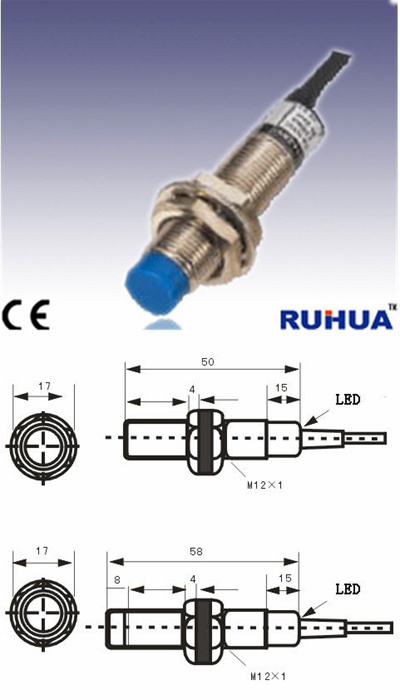

| Dimension | |
|
|
|
|
|
|
|
|
|
| Flush | Detection distance | 2mm |
| | NPN | NO | 3002NA |
| DC | NC | 3002NB |
| 6 | NO+NC | 3002NC |
| ~ | PNP | NO | 3002PA |
| 36 | NC | 3002PB |
| V | NO+NC | 3002PC |
| | two wire system | NO | 3002LA |
| | NC | 3002LB |
| AC | SRC Control label silicon | NO | 2002A |
| 90 | NC | 2002B |
| ~250 | NO+NC | |
| V | Relay output | |
| Non-flush | Detection distance | 4mm |
| | NPN | NO | 3004NA |
| | NC | 3004NB |
| DC | NO+NC | 3004NC |
| 6 | PNP | NO | 3004PA |
| ~ | NC | 3004PB |
| 36 | NO+NC | 3004PC |
| V | two wire system | NO | 3004LA |
| | NC | 3004LB |
| AC | SRC Control label silicon | NO | 2004A |
| 90 | NC | 2004B |
| ~250 | NO+NC | |
| V | Relay output | |
| Control output | DC | 200mA |
| SCR/Relay | 300mA |
| Output voltage dropDC/AC | DC<2V DC(Two wire system) <3.9V AC<10V |
| Consumption current | DC<15mA AC<10mA |
| Standard detected object | 15×15×1(A3 iron) |
| Repeated precision | 0.01 |
| DC/AC Response frequency | 400Hz/25Hz |
| Working environment temperature | -25~75 |
| Insulation resistance | ≥50MΩ |
| Shell material | Metal |
| Protection grade | IEC standard IP67 |
| Altemative model at home and abroad | E2E-X5M |
