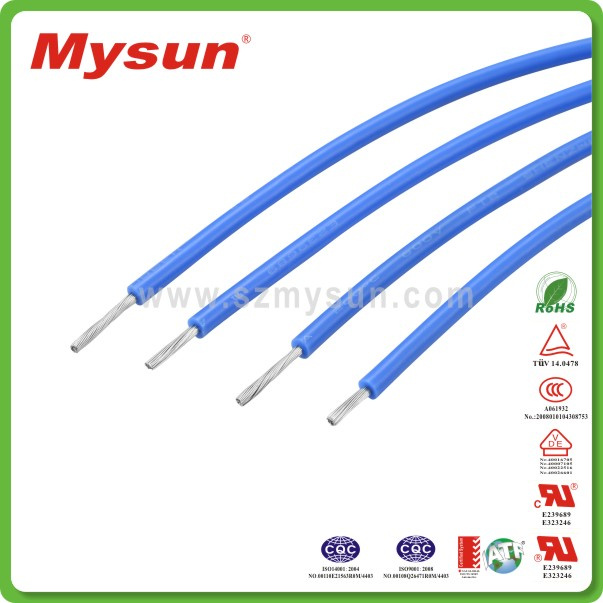

High Quality Low Price VDE Certificated Silicone Rubber Cable

Name: High Quality Low Price VDE Certificated Silicone Rubber Cable
Brand: all-electronics-online.com
SKU: 830591915
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	US $ 0.1-0.14/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VDEH05S-K
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	CSA, Ts16949
Sheath Material:	Silicone Rubber
Range Of Application:	Home Appliance,LED,Metro
Brand:	Mysun

Product Description

Specifications:

Nominal voltage: 450/750V

Temperature range: 180C

Standard: VDE 0282-3

Conductor: Tinned copper

Insulation: Silicone Rubber

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Section (mm²)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
0.50	20/0.18	0.92	0.80	2.52	40.1	305/1000
0.75	30/0.18	1.13		2.73	26.7
1.00	40/0.18	1.31		2.91	20
1.25	50/0.18	1.46		3.06	14.35
1.50	30/0.254	1.60	0.90	3.40	13.7
2.00	41/0.254	1.87	0.90	3.67	8.78
2.50	50/0.254	2.08	1.00	4.08	7.16

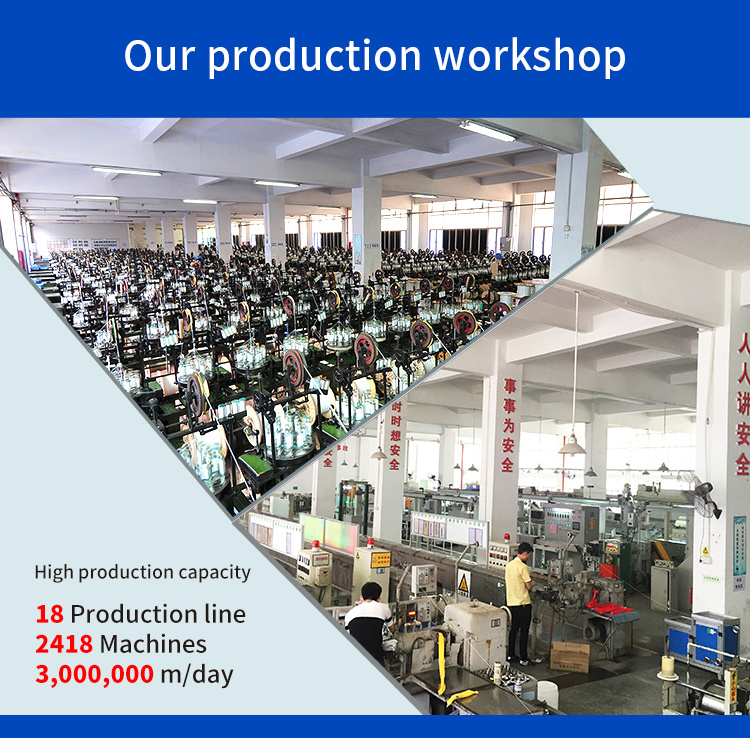

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
