| Prod Model: |
GYFTC8Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulation Material: |
PE |
| Conductor Material: |
Optical Fiber |
| Number Of Cores: |
2--48 |
| Mode: |
Single Mode |
| Tube Type: |
Multi Loose Tube Stranded |
| Outer Sheath: |
PE |
| Color: |
Black |
| Operating Temperature: |
-40--60 |
| Company: |
Xingfa Transmission Equipment Co., Ltd |
| Certification: |
RoHS\ETL\ISO\CE |
| Application: |
Fiber Optic Cable |
| Type: |
>10 |
| Connection Structure: |
Gyftc8y |
| Sheath Material: |
PE |
Product Description
High Quality Optical Fiber Cable GYFTC8Y

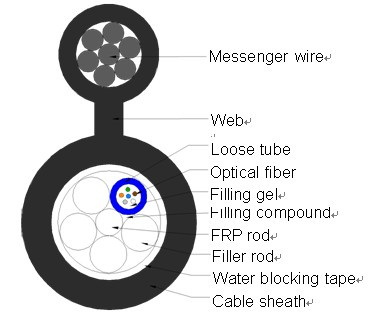

The fibers,either of single-mode or multimode type, are placed in a loose tube made of high modulus plastic. The tubes are filled with a water
resistant filling compound. A FRP locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After water blocking tape is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.
Features
- High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
Description
Ø low dispersion and attenuation.
Ø Proper design, precise cotrol for fiber excess length and distinct stranding process render the cable excellent mechanincal and environmental characteristics.
Ø Anti-electromagnetism ability.
Ø Samall cable diameter, light cable weight, self-supporting, easily to install.
Technical characterision
Very strict material and manufacturing control guarantees the cable can work stably for more than 30 years.
Total cross-section water-resistant structure makes cable have excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
Figure-8 self-supporting structure, high tension strength, facilitate in aerial, low installation costs
copper wires in the cable for electric communication.
Color Code
No | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Slate | White |
No | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
Technical Parameter
Fiber count | Cable dia.(mm) | Cable net weight(Kg/km) | Min. bending radius(mm) | Min. tensile strength(N) | Min. crush pressure(N/100mm) |
Static state | Dynamic state | Short term | Long term | Short term | Long term |
2~36 | 11.6 | 144 | 120 | 240 | 3000 | 1000 | 1000 | 300 |
38~60 | 12.3 | 155 | 130 | 260 | 3000 | 1000 | 1000 | 300 |
62~72 | 13.1 | 190 | 140 | 280 | 3000 | 1000 | 1000 | 300 |
74~84 | 13.9 | 208 | 140 | 280 | 3000 | 1000 | 1000 | 300 |
86~96 | 14.7 | 228 | 150 | 300 | 3000 | 1000 | 1000 | 300 |
98~108 | 15.5 | 247 | 160 | 320 | 3000 | 1000 | 1000 | 300 |
110~120 | 16.3 | 268 | 170 | 340 | 3000 | 1000 | 1000 | 300 |
122~132 | 17.1 | 290 | 180 | 360 | 3000 | 1000 | 1000 | 300 |
134~144 | 17.9 | 313 | 180 | 360 | 3000 | 1000 | 1000 | 300 |
Messenger | Diameter: 5.1 mm, Weight: 86 kg/km |
Connecting part | Dimension :3.5×2.6 mm, Weight: 9 kg/km |
Cable photo

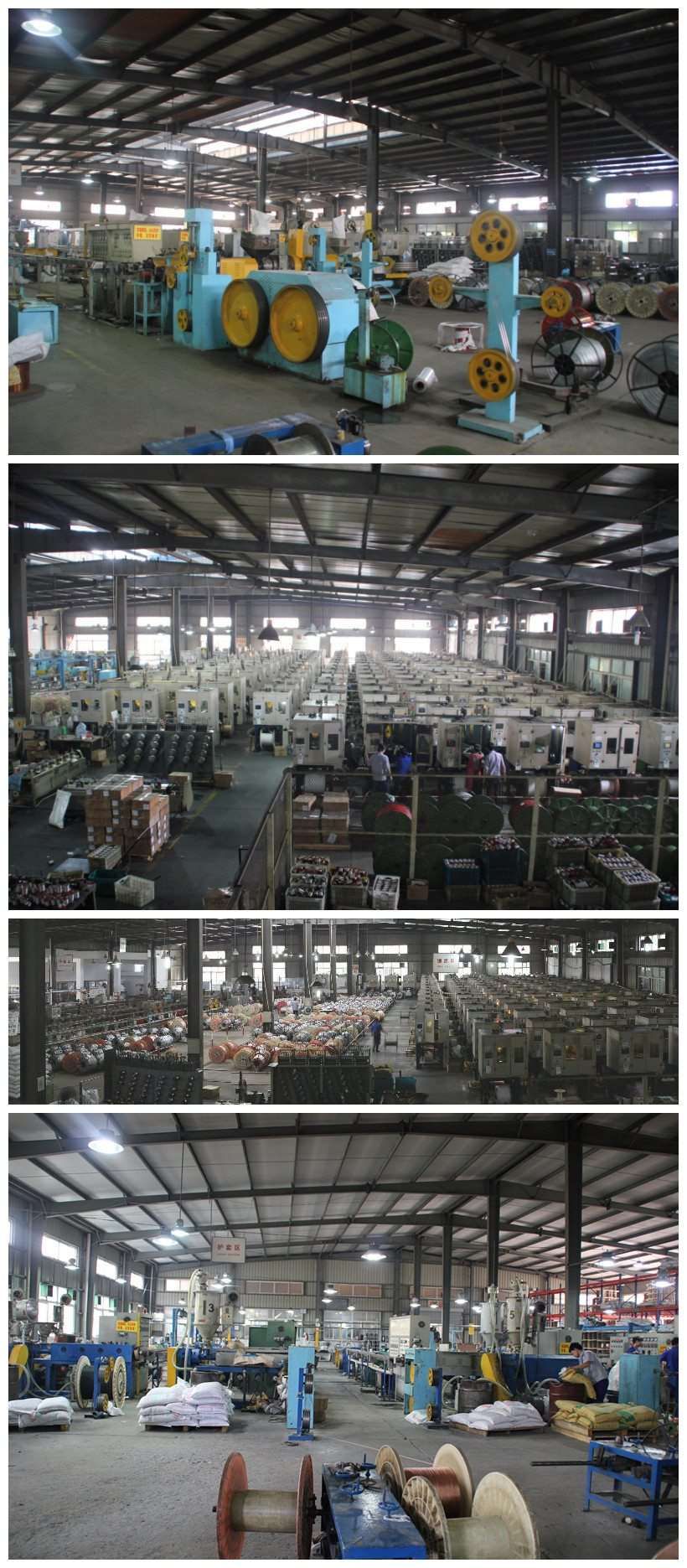

Production Flow
Packing
