High Quality PCM Board For29.6V Lithium Battery Pack (AYAA-PCM-L08S15-810(8S))

Name: High Quality PCM Board For29.6V Lithium Battery Pack (AYAA-PCM-L08S15-810(8S))
Brand: all-electronics-online.com
SKU: 733563425
Availability: InStock
Rating: 4.4 (146 reviews)

Price:	US $ 1.8-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	AYAA-PCM-L08S15-810(8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green
Base Material:	FR-4
Mode Of Production:	SMT
Metal Coating:	Copper

Product Description

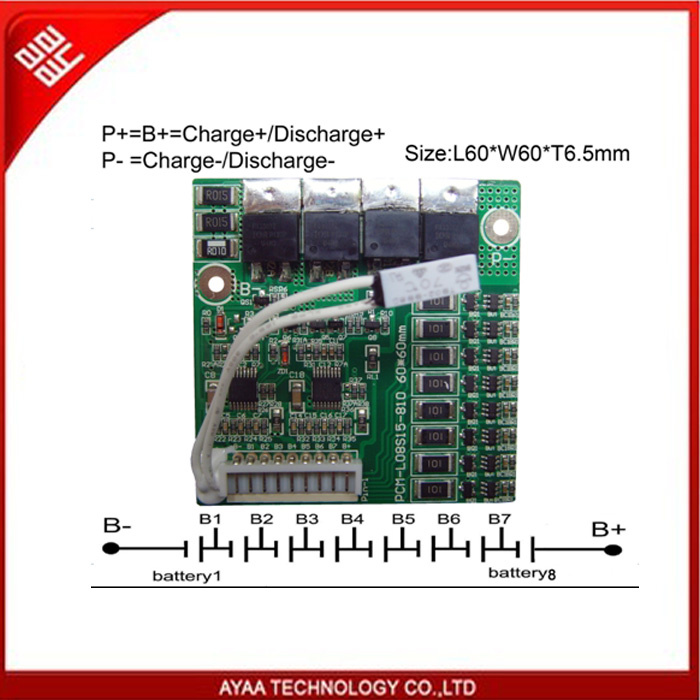

PCM Board For29.6V Lithium Battery Pack (AYAA-PCM-L08S15-810(8S))
Maximal continuous charging current: 12A
Maximal continuous Discharging current: 12A
1)Safe & reliable
2)12 months warranty
3)Eco-friendly

No.	Test Item		Criterion
1	Voltage	Charging voltage	DC:28.8V 3.6V/Cell
		Balance voltage for single cell	3.60±0.05V
2	Current	Balance current for single cell	72±10mA
		Current consumption for single cell	≤100μA
		Maximal continuous charging current	12A
		Maximal continuous Discharging current	12A
3	Over charge Protection	Over charge detection voltage	3.90±0.05V
		Over charge detection delay time	0.5S_2S
		Over charge release voltage	3.6±0.1V
4	Over discharge protection	Over discharge detection voltage	2.0±0.1V
		Over discharge detection delay time	10mS_400mS
		Over discharge release voltage	2.7±0.1V
5	Over current protection	Over current detection current	40±10A
		Detection delay time	5ms_60ms
		Release condition	Cut load, Auto Recovery
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-800us
		Release condition	Cut load,Auto Recovery
7	Resistance	Protection circuitry	≤20mΩ
8	Temperature	Operating Temperature Range	-40~+125 degree
		Storage Temperature Range	-40~+125 degree
