High Quality Porcelain Post Insulator (P-70 P-13)

Name: High Quality Porcelain Post Insulator (P-70 P-13)
Brand: all-electronics-online.com
SKU: 662936042
Availability: InStock
Rating: 4.5 (89 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	P-70 P-13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chemistry:	Organic Insulation
Thermal Rating:	250 250
Creepage Distance:	500mm
Rated Voltage:	22kv
Application:	Insulators
Material:	Porcelain
Structure:	Post Insulator
Type:	Solid
Color:	Brown
Brand:	Powlik

Product Description

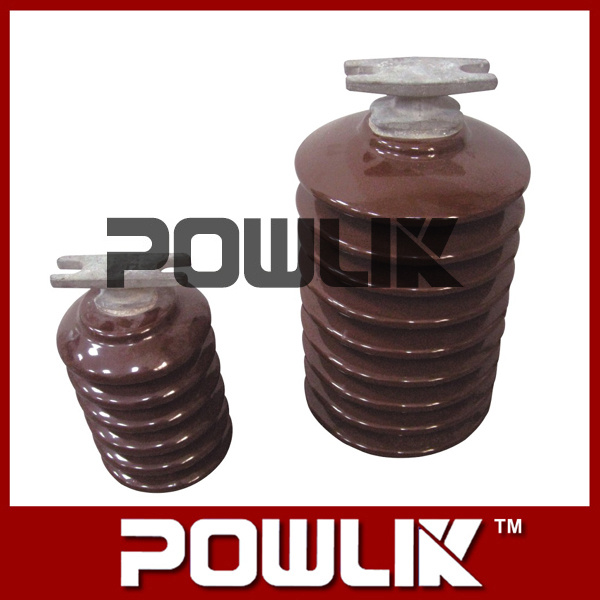

Post Insulator (P-70 P-13)

P-70:
1. Nominal system votlage: 22KV
2. Impulse flashover voltage: 270KV
3. P. F. Withstand dry: 95KV
4. P. F. Withstand wet: 60KV
5. Impulse withstand POS.: 140KV
6. Creepage distance: 490mm
7. Bending strength: 364Kg
8. Tension strength: 1140Kg
9. Ultimate torsion strength: 3460Kg. Cm
10. Net weight: 5 Kg/PC

P-13 :
1. Nominal system voltage: 38KV
2. Impulse withstand voltage: 200KV
3. Ultimate bending strength: 220Kg
4. Ultimate Torsion strength: 5600Kg.
5. Creepage distance: 1000mm

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
