| Prod Model: |
YCB6RL-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
Overcurrent Protection |
| Color: |
White |
| Rted Current: |
16-63A |
| Rated Frequency: |
50/60Hz |
| Rated Breaking Capacity: |
6000A |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
2 |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Residual Current Circuit Breaker |
| Certification: |
IEC61009-1 |
| Installation: |
DIN Rail |
Product Description

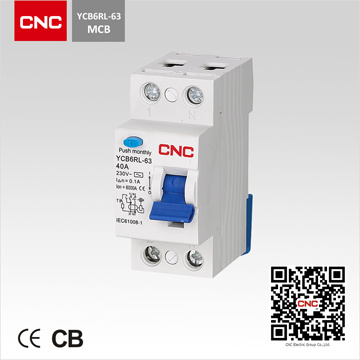

YCB6RL-63 types of circuit breaker
1. Protect fire hazard
2. Controlling and Swittching
3. ISO9001, ISO9004, CB
General
1. Protection against the effects of sinusoidal alternating earth fault currents
2. Protection against indirect contacts and additional protection against direct contacts
3. Protection against fire hazard caused by insulation faults
4. Controlling and Switching
5. Used in residential building, non-residential building, energy sources, industry and infrastructure
Do you know about us?
1. China Top 100 Industrial Electrical Enterprise
2. Netion High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 500 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T, Paypal (extra 4% commission charge)
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment
Warranty:
1.6 months.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
We provide 1 year warranty.
If the item is defective, please notify us within 3 days of delivery.
All item please be returned in their original condition in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
|
Type |
Standard |
|
lEC/EN 61009-1 |
|
Electrical features |
Leakage type |
|
Electromagnetic type |
|
|
Rated current In |
A |
16,25,32,40,50,63 |
|
|
Type (wave form of the earth leakage sensed) |
|
A,AC |
|
|
Poles |
P |
2,4 |
|
|
Rated voltage Ue |
V |
240/415 |
|
|
Insulation voltage Ui |
V |
500 |
|
|
Rated frequency |
Hz |
50/60 |
|
|
Rated breaking capacity Inc=IΔc |
A |
6000 |
|
|
SCPD fuse |
A |
6000 |
|
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
2.5 |
|
|
Dielectric test voltage at ind. Freq. for 1min |
kV |
0.01,0.03,0.1,0.3,0.5 |
|
|
Rated sensitivity IΔn |
A |
500(In≤40A); 630(In>40A) |
|
|
Rated residual making and breaking capacity IΔm |
A |
6000 |
|
|
Pollution degree |
|
2 |
|
Mechanical features |
Electrical life |
t |
4000 |
|
|
Mechanical life |
t |
8000 |
|
|
Protection degree |
|
IP20 |
|
|
Storage temperature |
°C |
-25~+70 |
|
|
Ambient temperature (with daily average≤35°C) |
°C |
-25~+40 |
|
Installation |
Terminal connection type |
|
Cable/U-type bar/Pin-type busbar |
|
|
Terminal size top / bottom for cable |
mm² |
25 |
|
|
|
AWG |
18-3 |
|
|
Terminal size top / bottom for busbar |
mm² |
25 |
|
|
|
AWG |
18-3 |
|
|
Tightening torque |
N*m |
2.5 |
|
|
|
In-Ibs |
22 |
|
|
Mounting |
|
On DIN rail EN 60715(35mm)by means of fast clip device |
|
|
Connection |
|
From top |
