| Prod Model: |
LYD-TC-02 |
| Net Weight: |
227g |
| Gross Weight: |
379g |
| RF Frequency: |
433.92MHz |
| Connection Mode: |
Common Anode |
| Static Power Consumption: |
<1W |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AAA Battery |
| Voltage: |
DC5V, 12V~24voptional |
| Material: |
Iron |
Product Description
Basic Info| place of origin: | Shenzhen,China | brand name: | louita | model mo.: | LYD-TC-02 |
| Connection mode: | Common anode | Gross weight: | 379g | RF frequency: | 433.92Mhz |
| Static power consumption : | <1W | Output Current: | <6A(each circuit) | | |

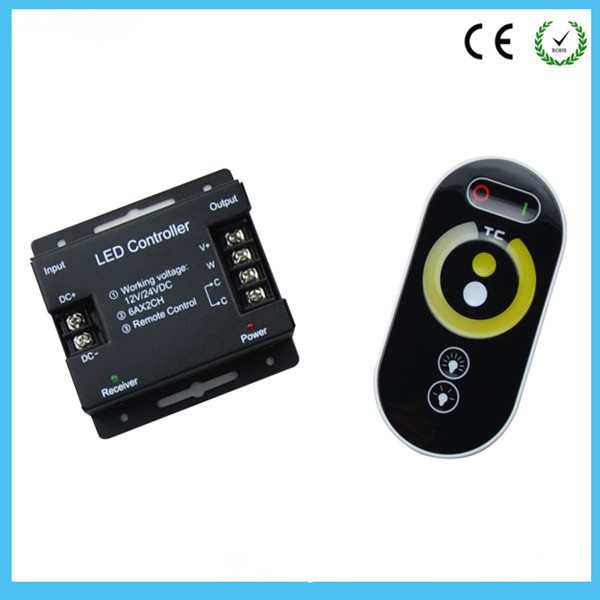

Product DescriptionThis productis one of our newestintelligent color temperature controller by our company adopting the newestcapacitance touch and wireless technology. With elegant color wheel and full touch panel under Humanized design for easy installation and operation. The steady wireless control mode technology makes theremote and free direction controlcome true by finger touch the corresponding button softly. Meanwhile the RF remote controller can control the color mode and change speed with light-dimmer turningon turningoff and pause in long distance high sensitivity strongpower-drive ability steadyand reliable performanceit has the functionof matching the code of the only RF remote control and any one of the controller or cancelIt. And it has a memo function. This Controller can be matchedwith all kinds of color temperature adjustable lights such as color temperature adjustable LED rigid light bars flexible strip panel lights modules etc.
Features1. Capacitance and wireless touch technology no mechanical wear overcoming the lifespan problems caused by Physical buttons.
2. Visiblecolor wheel t ouched by finger then, What you see is What you get.
3. Auto adaptation of 12-24V DC working voltageand with input polarity protection function.
4.Thenewest PWM controltechnology delicate light performance no flicker.
5. High power dimmer control MOS tube with stable and reliable performance strong. Power- drive ability with max.12A of 2 channels.
6. Wireless RF control free direction and long distance morethan 20 m.
7. MuIti-type memory functions for color and brightness.
8. Smart appearance standard input and output port easy installation and high cost performance.
Techniacal parameters| Controller |
| Supply voltage | 12V-24VDC |
| Loadable current | 6Ax2CH |
| Output channels | 2CH |
| Output power | 144W/288W(12V/24V) |
| Control method | RF |
| Connection mode | common anode |
| Color Choice | 2 (warm white andcoldwhite) |
| Dimmering method | PWM |
| Grey steps | 256 steps per channel |
| Protection | The power input polarity protection |
| Remote |
| Working voltage | 4.5VDC |
| Remote controlway | RF |
| Launch frequency | 433Mhz |
| Controllable distance | more than 20 meters |
| Battery types | 3 pcs AAA type batteries |
| Standby power | 0.08mW |
| Powerconsumption | 6mW |
| Transmission power | 40mW |
| Key Number | 6 touch keys 1 touch wheel |
| Whole machine |
| Working temperature | -20ºC -60ºC |
| Identification | CE, RoHS |
| Weight | 380g |

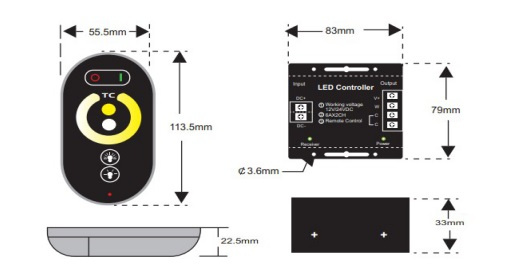

| Packing size | L206.5xW136xH43mm |

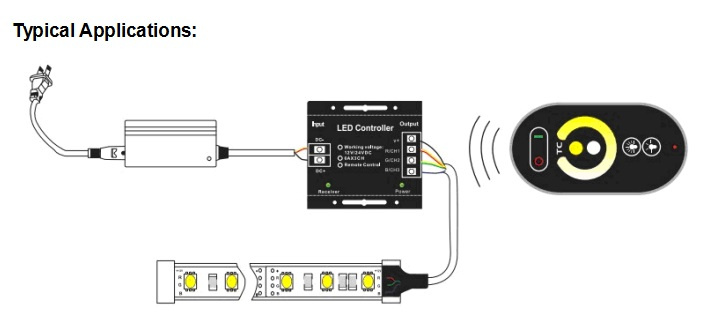

Applications1. Construction decoration: commercial buildings airports or subways.
2 .lndoor decoration: hotels shopping malls squares restaurants bars houses .
3.0utdoor decoration: advertising boards parks bridges roads andover passes scenic spots.
4.0thers:decoratingformotor vehicles the places needingRGB lights.
