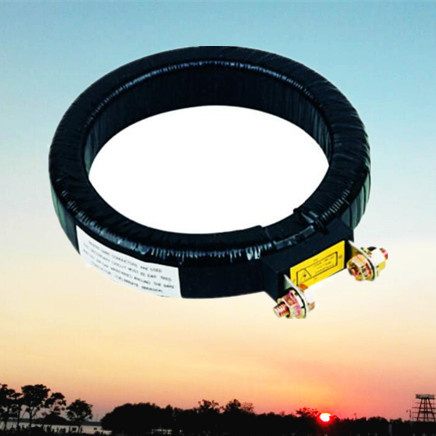

High Quality Ring Type Current Transformer (MR)

Name: High Quality Ring Type Current Transformer (MR)
Brand: all-electronics-online.com
SKU: 720920812
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 2.3-11/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MR
Accuracy Class:	0.5, 1
Insulation Voltage:	0.72kv
Color:	Black
Coil Structure:	Toroidal
Primary Current:	5A-5000A
Secondary Current:	1A, 5A
OEM:	Available

Product Description

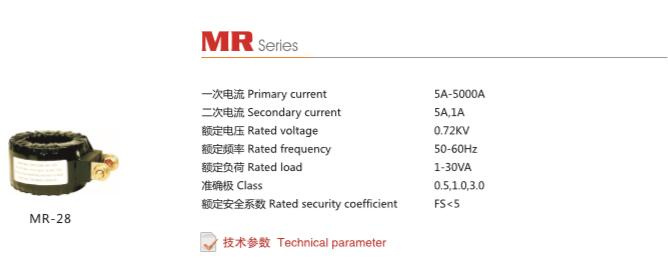

MR Series:

-Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:

30A-5000A
5A, 1A
IEC44-1,IEC185,BS7626

0.72KV
50-60Hz
5VA-15VA
3.0,1.0,0.5

Ith=60 X Ih
FS<5

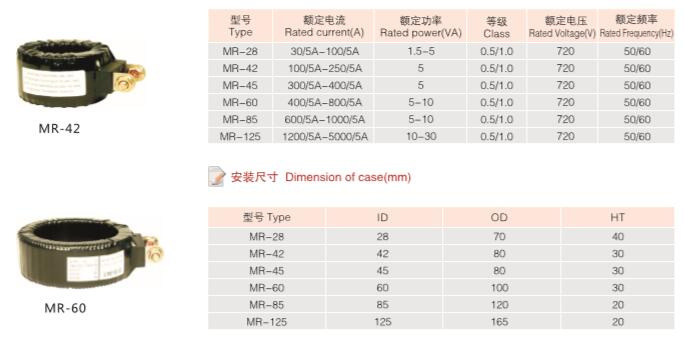

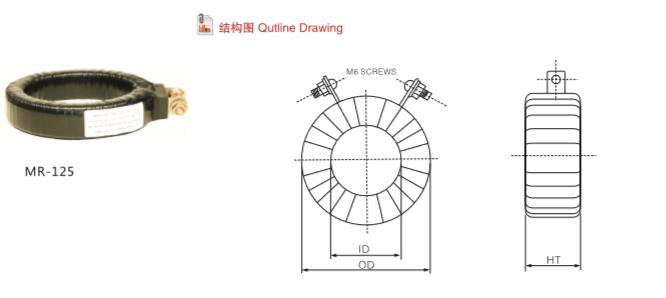

Specification & Dimensions (mm)

Model	Specification	ID	CD	HT
MR-28	30/5A-60/5A	28	70	40
MR-42	100/5A-250/5A	42	80	30
MR-45	300/5A	45	80	30
MR-60	400/5A	60	100	30
MR-60	500/5A 600/5A	60	100	30
MR-85	800/5A-1600/5	85	120	20
MR-125	2000/A-5000/5	165	165	20

Noted: For measuring current transformers, the accuracy class is designated by
the highest permissible percentage current (ratio) error at the rated current
prescribed for the accuracy class concerned.

Note: When the MR add with shell ,it will be called MRT
