High Quality Silicone Flexible Heater Element

Name: High Quality Silicone Flexible Heater Element
Brand: all-electronics-online.com
SKU: 685441112
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Silicone Flexible Heater Element
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size & Shape:	Customized
Maximum Thickness:	1.5-4mm
Working Temperature:	-60-250 C
Rated Voltage:	12-360V
Lead Length:	200mm
Min Size:	20*20mm
Withstand Voltage:	1.5 Kv
Wire Type:	Silicone Braided Wire
Wire Tension:	15n*15n

Product Description

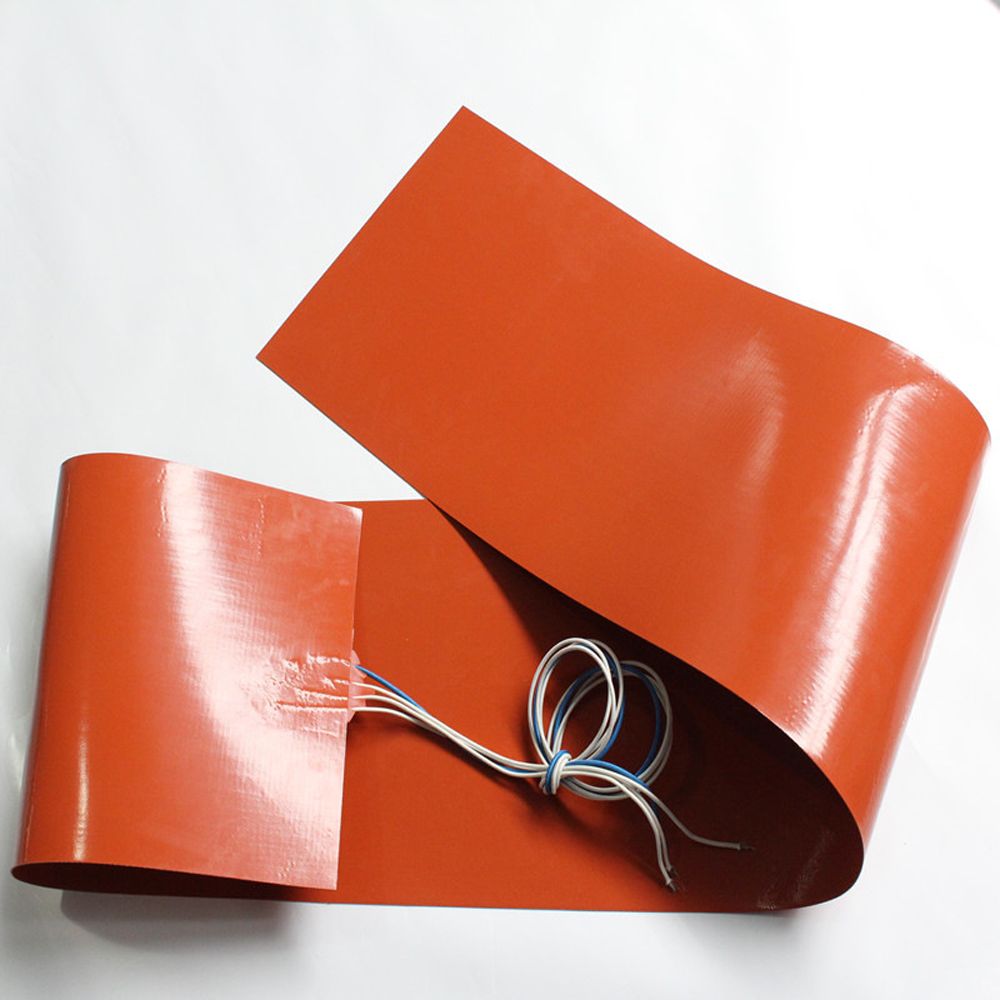

Silicone Flexible Heater Element

General Introduction

Silicon rubber heater produced by our company is extremely thin, light and flexible. And the heater with the silicon rubber electric heating plate can transfer heat to any required place. In processing, it can improve heat transfer, accelerate temperature rising and reduce power need. Glass fiber-reinforced silicon rubber can ensure the heater to be stable in dimension, without losing flexibility.
(1) Design according to actual shape and dimension, and adopt three-dimensional geometry to satisfy the requirements of your equipment.
(2) Moisture-proof chemical defense silicon rubber material makes the service life of heater much longer.
(3) It can be simply pasted or attached to your component by vulcanizing, adhesive or fastener, etc.

Silicone rubber heater band

It is beneficial to take out liquid and coagulum in drums easily by heating, such as adhesive, oil, asphalt, paint, paraffin wax, oil and various resin raw materials in the drum. It can make viscosity of materials descending and uniform by heating the drum, and reduce the power of pump. Therefore, the heater does not be restricted by seasons, and can be used throughout the year.

Application

(1) Freezing and compression prevention for various instruments and devices.
(2) Medical equipment such as blood analyzer, test tube heater.
(3) Computer auxiliary equipment, such as laser printer.
(4) Vulcanized surface of plastic film.

Rated Power	W	Lead Length	200mm
Rated voltage	12V_380V	Wire tension	15N×15N
Maximum size	1000m_1200m	Minimum size	20mm×20mm
Ambient Temperature	--60-----250C	Highest temperature	250C
Maximum thickness	1.5mm_4mm	Withstand voltage	1.5KV
Insulation resistance	≥5MΩ	Size deviation	±0.5
Power deviation	±5	Wire Type	Silicone braided wire

Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).

With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.

We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.

We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.

Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.

Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.

We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
