High Quality Single Phase Current Transformer

Name: High Quality Single Phase Current Transformer
Brand: all-electronics-online.com
SKU: 704858115
Availability: InStock
Rating: 5 (43 reviews)

Price:	US $ 1.67/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Class:	0.5/1.0
Primary Current:	5A~5000A
Colour:	Grey
Frequency:	50/60Hz
Type:	Current Transformer

Product Description

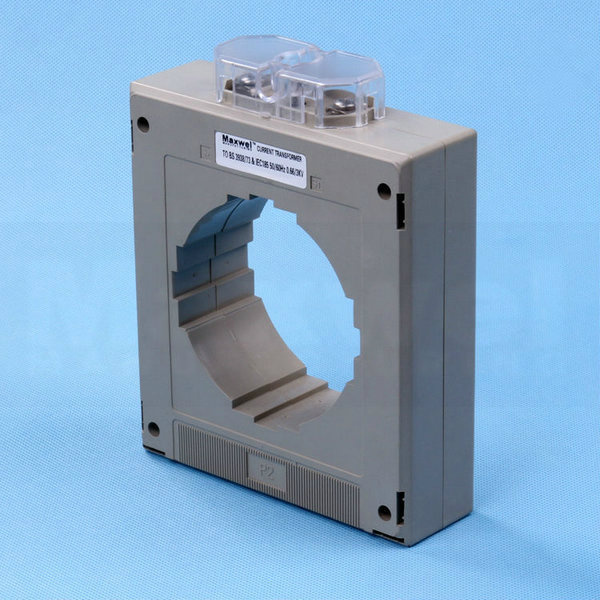

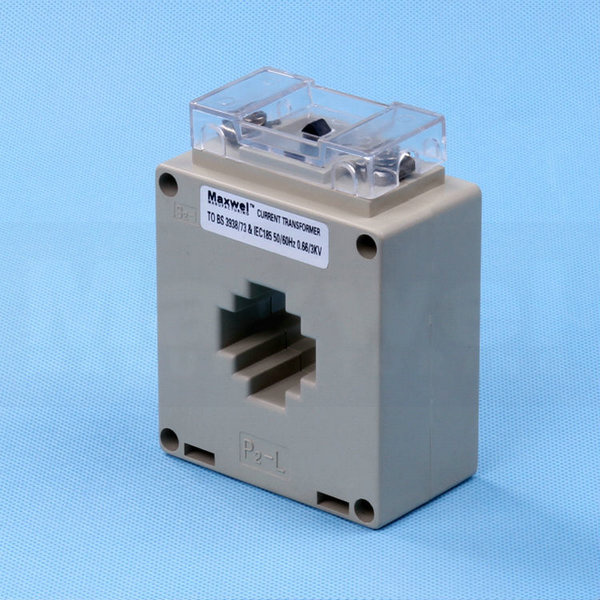

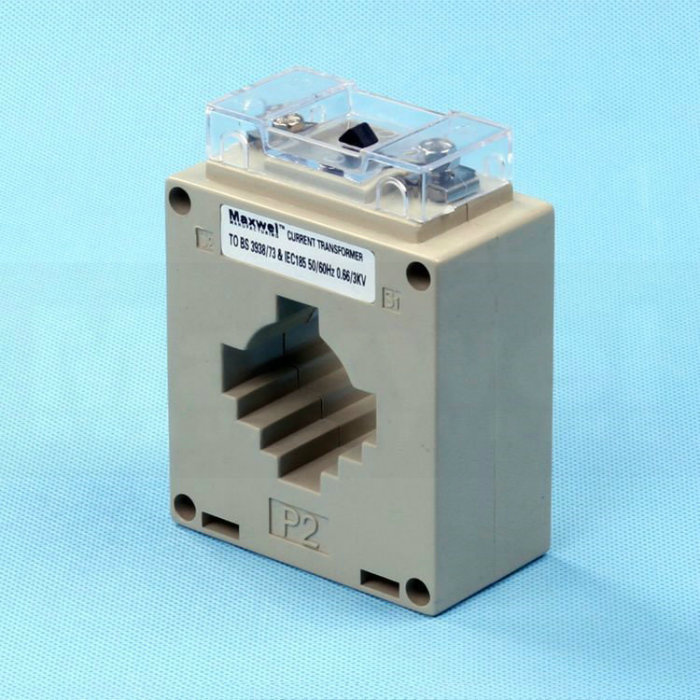

Window type current transformer MSQ-85

Description of MSQ current transformers:
Can be applied to test, control display and record the running of the electrical equipment
Protects the equipment against the damage in the AC circuit with the rated voltage value below 720V and the frequency of 50 to 60Hz
Can also be applied to form complete set of mine transformer
Comply with VDE 0414, BS7626 and IEC 44-1 standards
Sell very well in Greece,Italy,Russian,South African,Egypt etc.
Specification:

Primary current: 5A-5000A

Secondary current: 5A,1A

Standard appoval: VDE0414,BS7626,IEC44-1

Maximum voltage: 720V/AC

Freguency :50-60HZ

Rate load: 5VA-10VA

Class:0.5,1.0

Rated security coefficient: FS<5

Current Transformers Data Sheet

Type	Rated current (A)	Rated power (VA)		Weight (kg)
Type	Rated current (A)	Class: 0.5	Class: 1	Weight (kg)
MSQ-125	1500/5	15	15	1
	2000/5	15	15	1.15
	2500/5	15	15	1.45
	3000/5	15	15	1.6
	4000/5	15	15	1.9
	5000/5	15	15	2.2

Product Detail:

About Warranty:

At least A year!

Delivery Time:

Whin 15 Days After you place an Order!

A: Standard export package and we can make special designed for you if need.

Maxwel Manufacturing Co.,Limited Welcome to you!

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.
