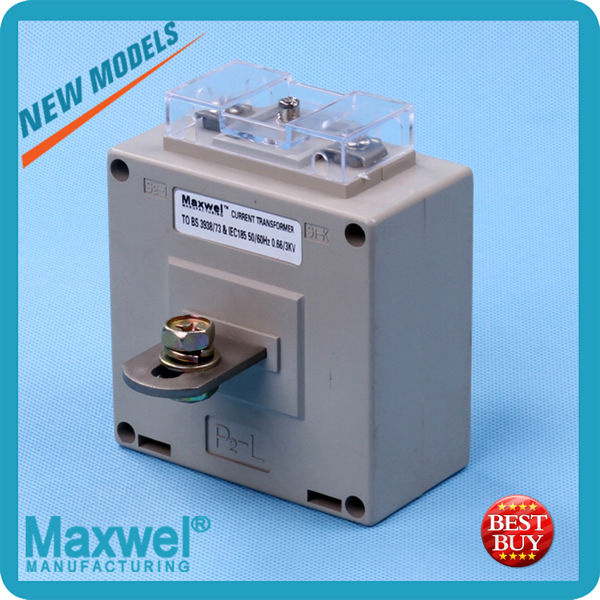

High Quality Single Phase Toroidal Current Transformer (MSQ)

Prod Model:	MSQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Blue, Grey, etc
Primary Current:	5A~5000A
Class:	0.5/1.0
Frequency:	50/60Hz
Type:	Current Transformer
Phase:	Single
Application:	Instrument

Product Description

MSQ-30B Current Transformers 5A~250A

Description of MSQ current transformers:
Can be applied to test, control display and record the running of the electrical equipment
Protects the equipment against the damage in the AC circuit with the rated voltage value below 720V and the frequency of 50 to 60Hz
Can also be applied to form complete set of mine transformer
Comply with VDE 0414, BS7626 and IEC 44-1 standards
Sell very well in Greece, Italy, Russian, South African, Egypt etc.

Specification:
Primary current: 5A-5000A
Secondary current: 5A, 1A
Standard appoval: VDE0414, BS7626, IEC44-1
Maximum voltage: 720V/AC
Freguency: 50-60HZ
Rate load: 5VA-10VA
Class: 0.5, 1.0
Rated security coefficient: FS<5


Type	Ralted Current (A)	Rated Power (VA) class :0.5	class:1	Weight(kg)
MSQ-30T	100/5 125/5 150/5 160/5 200/5 250/5	2.5-5 3-5 5-10 5-10 5-10 5-10	5 5-10 5-10 5-10 5-10 5-10	0,62 0,62 0,62 0,62 0,62 0,62
