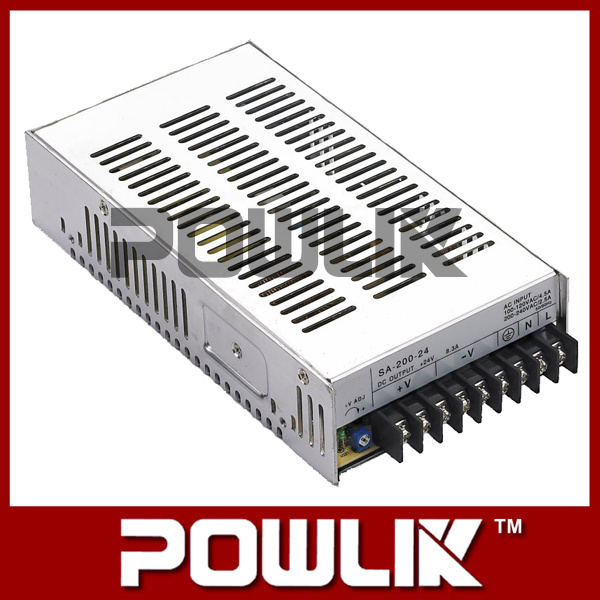

High Quality Switching Power Supply 200W /24V (SA-200-24)

Prod Model:	SA-200-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	200W
Frequency:	47-63Hz
Output Stability:	8%
Insulation Resistance:	50
Output Type:	Single
Warranty:	2 Years
Output Power:	101 - 200W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Powlik

Product Description

SA-200-24 Switching Power Supply 200W /24V

1)Principle & Characteristics

The universal switch power supply adopts power semiconductor as the switching element, the output voltage is adjusted by making and breaking the switch periodically and control the time ratio of off to on of the switch elements. Meanwhile, it has over-current and over-voltage protection function; It has the advantages as small output wave, high efficiency, small volume, light weight, elegant
Appearance and so on.

2)Scope of Application

It is suitable in the industrial automatic control, communication, post and telecommunication, instruments and meters, armarium, semiconductor cooling and heating etc. Fields.

3)Main advantage

A, Adopt imported accessories, with high reliability;
B, Built-in EMI filter, with strong anti-reference ability;
C, AC surge current limit;
D, Wide input voltage range, meet the international standard;
E, Low working temperature, long service life.

4)Main Technical Parameter

Output power: 15W, 25W, 30W, 35W, 40W, 50W, 60W, 100W, 120W, 150W,
180W, 200W, 240W, 280W, 320W, 350W
AC input voltage: 176V~ 264V, 85V~ 162V(Switch Selection)
AC input frequency: 47Hz~ 63Hz
Electric network adjusting rate: ≤ ± 1%
Load adjusting rate: ≤ ± 8%
Output stability: ≤ ± 8%
Frequency(Full load): ≥ 78%
Readjustment range of output voltage: ± 10%(main circuit)
Output wave(resistive load)peak: ≤ 120mV
Output over-voltage protection: 115%~ 135%
Output over-current protection: 110%~ 150%
Insulation resistance: 50MΩ
Remark: Special specification can be made to order
