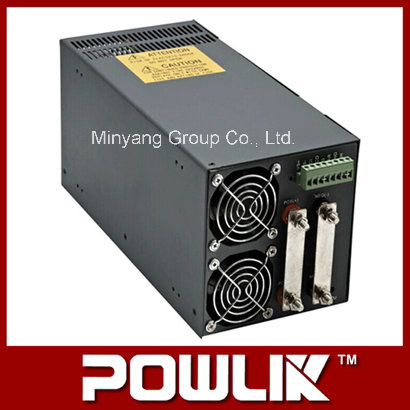

High Quality Switching Power Supply for 1500W

Name: High Quality Switching Power Supply for 1500W
Brand: all-electronics-online.com
SKU: 743179925
Availability: InStock
Rating: 4.3 (98 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCN-1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	291*132
Frequency:	47-63Hz
Capacity:	1500W
Weight:	4.5kgs
Output Type:	Single
Warranty:	1 Year
Output Power:	>500W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	12V/15V/24V/48V
Brand:	Powlik

Product Description

Switching Power Supply For 1500W(SCN-1500)

100% full load burn-in test
Universal AC input: 110/220VAC± 20% selectable by switch
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Size:291*132*132(mm)

Specification	SCN-1500-12	SCN-1500-15	SCN-1500-24	SCN-1500-48
DC output	12V 125A	15V 100A	24V 62.5A	48V 32A
Wave and noise	120mVp-p	150mVp-p	240mVp-p	480mVp-p
Inlet stability	±1%	±1%	±1%	±1%
Load stability	±1%	±1%	±1%	±1%
Efficiency	83%	84%	85%	87%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	200-260VAC/290-370VDC 47-63Hz

OverLoad protection	110%-135% hiccup mode,auto-recovery
Over-Voltage protection	110%-135% rated output voltage
Setup,rise,hold up time	800ms,50ms,16ms at full load and 230VAC
Withstand voltage	I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistanc	I/P-O/P IP/FG OP-FG:500VDC/100MΩ
Working temperature	-10ºC_+65ºC
Safety Standards	Design refer to UL1950,CSA22.2,IEC60950
EMC Standards	Design refer to FCC PART 15 CLASS A
Weight	4.5KG
