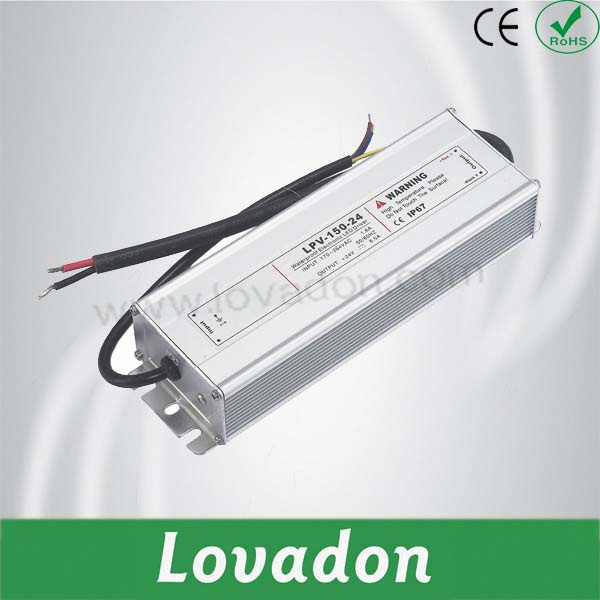

High Quality Switching Power Supply (LPV-150)

Name: High Quality Switching Power Supply (LPV-150)
Brand: all-electronics-online.com
SKU: 686204032
Availability: InStock
Rating: 4.4 (45 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	12/24VDC
Output Frequency:	47-63Hz
Output Current:	0-12.5A
Protection:	Short Circuit/Overload/Over Voltage/ Over Temperat
Output Type:	Single
Warranty:	1 Year
Input Voltage:	220V
Certification:	CE
Output Power:	200W

Product Description

100W switching power supply waterproof
1. Small size, light weight, high efficiency, long life, safety and reliability
2. Built-in PFC function
3. Protections: Over voltage, Over current, Over temperature., Short Circuit
4. Waterproof Rank: IP67
5. Size: 222*69*43mm

Model Specification	LPV-150-12	LPV-150-15	LPV-150-24	LPV-150-48
DC Output voltage	12V	15V	24V	48V
Rated output current	12.5A	10A	6.3A	3.2A
Output current range	0~12.5A	0~10A	0~6.3A	0~3.2A
Error	±5%	±5%	±5%	±5%
Wave and noise(Note:3)	120mVp-p	120mVp-p	120mVp-p	150mVp-p
DC output power	150W	150W	151W	153.6W
Efficiency	81%	81%	84%	84%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	100~130VAC/170~264VAC ,47~63Hz,240~370VDC
Input current	1.6A/230V
AC Inrush current	Cold-start current 40A/230V
Leakage current	<3.5mA/240VAC
Overload protection	115%-135% Type: hiccup mode Reset: auto-recovery
Over-voltage protection	115%-135% cut off the output, Reset: auto-recovery
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each axes
High-temperature protection	≥85degree cut off the output,Reset: auto-recovery
Water level	IP67
Setup, rise, hold up time	200ms 100ms 30ms
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10degree~+60degree,20%~90%RH
Overall dimension	2226943mm
Weight	1.15kgS 20pcs/ctns
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25degree 70% RH. Temperature. 2. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
