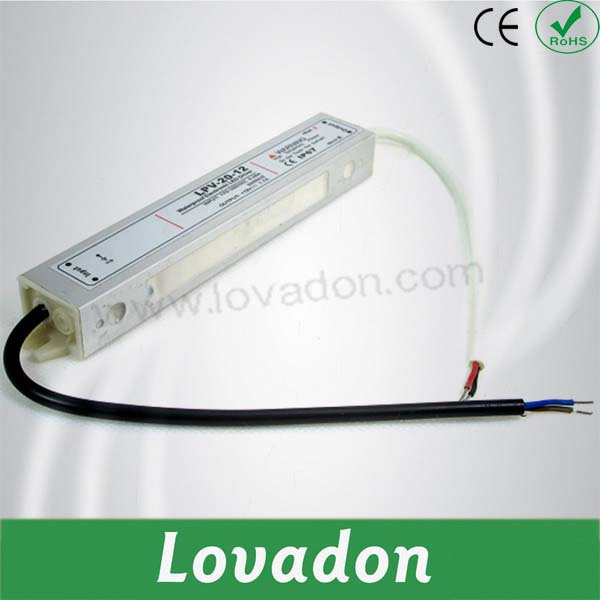

High Quality Switching Power Supply Lpv-20W

Name: High Quality Switching Power Supply Lpv-20W
Brand: all-electronics-online.com
SKU: 686204282
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	US $ 4.5-5.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	2226943mm
Input Current:	0.28A/230V
Water Level:	IP67
Input Efficiency:	≥80%
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE

Product Description

100W switching power supply waterproof
1. Small size, light weight, high efficiency, long life, safety and reliability
2. Built-in PFC function
3. Protections: Over voltage, Over current, Over temperature., Short Circuit
4. Waterproof Rank: IP67
5. Size: 222*69*43mm

Model Specification	LPV-20-12	LPV-20-15	LPV-20-24
DC Output voltage	12V	15V	24V
Rated output current	1.7A	1.4A	0.8A
Output current range	0~1.7A	0~1.4A	0~0.8A
Error	±5%	±5%	±5%
Wave and noise(Note:3)	100mVp-p	100mVp-p	150mVp-p
DC output power	20.4W	21W	19.2W
Efficiency	83%	83%	83%
Adjustable range for DC voltage	±10%	±10%	±10%
AC input voltage range	100~250VAC ,47~63Hz,240~370VDC
Input current	0.28A/230V
AC Inrush current	Cold-start current 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	115%-135% Type: hiccup mode Reset: auto-recovery
Over-voltage protection	............................................
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each axes
High-temperature protection	≥105degree hiccup mode,Reset: auto-recovery
Water level	IP67
Setup, rise, hold up time	200ms 100ms 30ms
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10degree~+60degree,20%~90%RH
Overall dimension	1823020mm
Weight	0.23kgS 100pcs/ctns
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25degree 70% RH. Temperature. 2. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
