High Quality Temperature Fiberglass Rice Cooker Silicone Electrical Wire

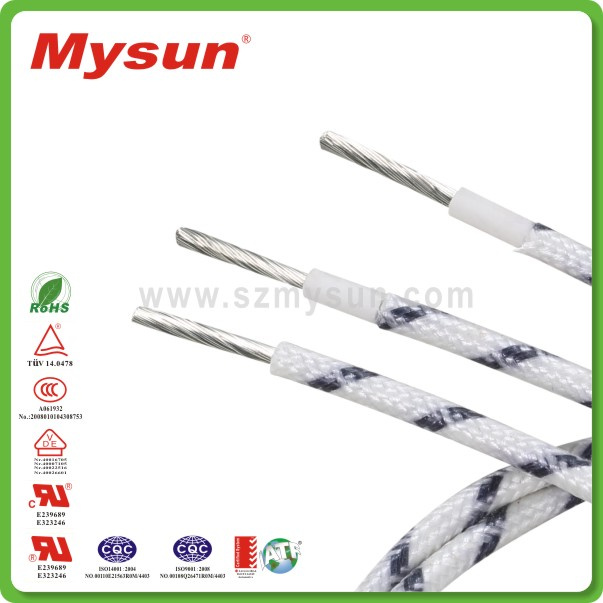

Name: High Quality Temperature Fiberglass Rice Cooker Silicone Electrical Wire
Brand: all-electronics-online.com
SKU: 830631745
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	US $ 0.1-2/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3122
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Fiberglass
Certification:	CSA, Ts16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Sheath Material:	Silicone Rubber
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

High temperature silicone fiberglass wire rice cooker wire electrical wire

Specifications:

Nominal voltage: 300V

Temperature range: 200C

Standard: UL 758

Conductor: Tinned copper wire

Insulation: Silicone RubberInsulation: Fiber Glass

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
26	7/0.16	0.48	0.60	1.68	143	305/1000
24	7/0.20	0.61		1.81	89.3
22	7/0.254	0.77		1.97	56.4
20	7/0.31	0.94		2.14	35.2
18	7/0.39	1.19		2.39	22.2
16	7/0.49	1.49		2.69	14
24	1/0.50	0.50	0.65	1.80	89.3	305/1000
22	1/0.65	0.65		1.95	56.4
20	1/0.81	0.81		2.11	35.2
18	1/1.02	1.02		2.32	22.2
16	1/1.20	1.20		2.50	14
24	11/0.16	0.61	0.60	1.81	89.3	305/1000
22	17/0.16	0.76		1.96	56.4
20	26/0.16	0.94		2.14	35.2
18	41/0.16	1.18		2.38	22.2
16	26/0.254	1.49		2.69	14
0.30mm²	12/0.18	0.71	0.60	1.91	59.78	305/1000
0.50mm²	20/0.18	0.92		2.12	40.1
0.75mm²	30/0.18	1.13		2.33	26.7
1.00mm²	40/0.18	1.31		2.51	20
1.25mm²	50/0.18	1.46		2.66	14.35

Service:

Shipment:

1. by express

2. by sea

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
