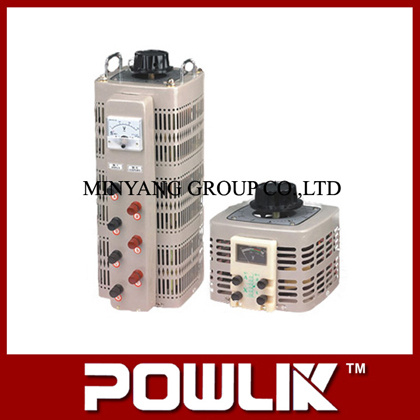

High Quality Three Phase Voltage Regulator (TDGC2/TSGC2)

Name: High Quality Three Phase Voltage Regulator (TDGC2/TSGC2)
Brand: all-electronics-online.com
SKU: 676148905
Availability: InStock
Rating: 4.6 (70 reviews)

Price:	US $ 0.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSGC2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220V/380V
Rated Capacity:	0.2kVA-15kVA
Efficiency:	95%
Output Voltage:	0-250V/ 0-430V
Current Type:	AC
Phase:	Three Phase
Frequency:	Industrial Frequency
Usage:	Tsgc2
Brand:	Powlik

Product Description

TDGC2\TSGC2 Series Voltage Regulator

1.Feature:
This series energy-saying voltage regulator are made of imported silicon steel, it can successively adjust the output voltage(single-phase 0~250V), with the features of no waveform distortion, small volume, light weight, high efficiency, convenient use, reliable performance and so on.

2.Application:
It can be applied in industry, scientific experiment, public facilities and domestic appliances to achieve the goal of voltage regulating, temperature controlling, light regulating, power controlling and so on.

3.Specification:
A.Phase No.: Single phase
B.Input voltage: 220V/1Phase
C.Output voltage: 0~250V/1Phase
D.Frequency: 50Hz/60Hz
F.Efficiency: >95%

Specification & Capacity	Max Output Capacity KVA	Phase	Input Voltage	Output Voltage	Max Output Current	Overall Size (WxDxL)mm	Weight KG
Specification & Capacity	Max Output Capacity KVA	Phase	Input Voltage	Output Voltage	Max Output Current	Overall Size (WxDxL)mm	Weight KG
TDGC2-0.2	0.2	1	220V	0-250V	0.8	108x125x132	2.1
TDGC2-0.5	0.5				2	130x140x135	3.2
TDGC2-1	1				4	180x200x170	5.9
TDGC2-2	2				8	197x210x180	8.2
TDGC2-3	3				12	205x230x205	10.8
TDGC2-5	5				20	245x300x255	17
TDGC2-10	10				40	235x310x440	33.1
TDGC2-15	15				60	235x310x640	54.1
TSGC2-1.5	1.5	3	380V	0-430V	2	130x160x340	9.5
TSGC2-3	3				4	175x235x435	17.5
TSGC2-6	6				8	197x260x440	24.3
TSGC2-9	9				12	205x260x480	32.7
TSGC2-15	15				20	235x310x640	51.5

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
