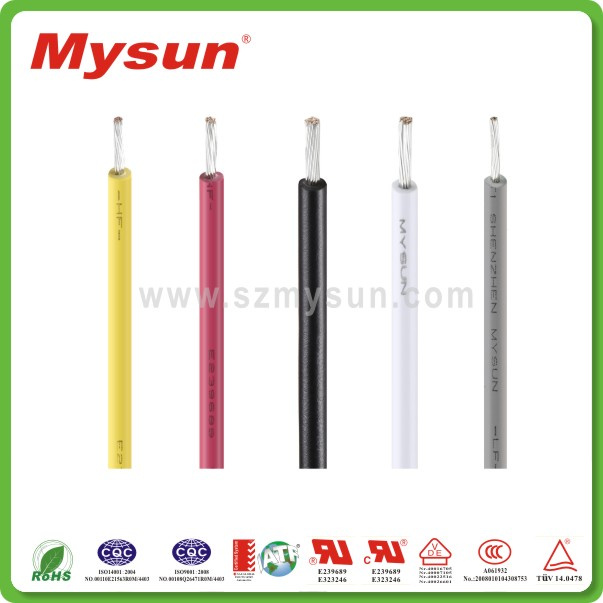

High Quality UL Certificated PVC Wire and Cable, UL1015

Name: High Quality UL Certificated PVC Wire and Cable, UL1015
Brand: all-electronics-online.com
SKU: 830412435
Availability: InStock
Rating: 4.7 (109 reviews)

Price:	US $ 0.05-0.14/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL1015 600V 105C
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CSA, Ts16949
Range Of Application:	Home Appliance,LED,Metro
Brand:	Mysun

Product Description

Specifications:

Nominal voltage: 600V

Temperature range: 105C

Standard: UL 758

Conductor: Tinned copper

Insulation: PVC

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
30	7/0.10	0.30	0.80	1.90	347	305/1000
28	7/0.127	0.38		1.98	218
26	7/0.16	0.48		2.08	138
24	11/0.16	0.61		2.21	85.9
22	17/0.16	0.76		2.36	54.3
20	21/0.18	0.95		2.55	33.9
18	34/0.18	1.21		2.81	21.4
16	26/0.254	1.50		3.10	13.5
14	41/0.254	1.89		3.49	8.45
12	65/0.254	2.37		3.97	5.31
10	105/0.254	3.02		4.62	3.343
9	133/0.254	3.39		4.99	2.652
8	133/0.280	3.75	1.15	6.05	2.102
6	84/0.45	4.79	1.53	7.85	1.323
4	133/0.45	6.02		9.08	0.8315
2	212/0.45	7.60		10.66	0.5231

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
