High Reliability Easy Mounting Split Core Current Transformer

Name: High Reliability Easy Mounting Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 704670735
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	US $ 13.53-14.59/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Primary Current:	100-5000A
Colour:	Black
Class:	0.5 and 1.0
Standard Certificate:	IEC44-1/BS7626/VDE0414/Vl94
Rated Load:	1-30va
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

Split Core CT Features:
-Small size and easy mounting
-Wide inner window, allowing clamping of big cables or bus bar
-Wide range of sizes to accommodate all the existing installation
-High accurancy and reliability

Tecnicial specifications:
-Primary current: 100A-5000A
-Secondary current: 5A/1A
-Standard approval: IEC44-1/BS7626/VDE0414/VL94
-Maximum voltage: 0.72/3kv
-Frequency: 50/60Hz
-Rated load: 1VA-30VA
-Class: 0.5/1.0
-Short-time thermal current: Ith=100*in
-Rated security coefficient Fs<5

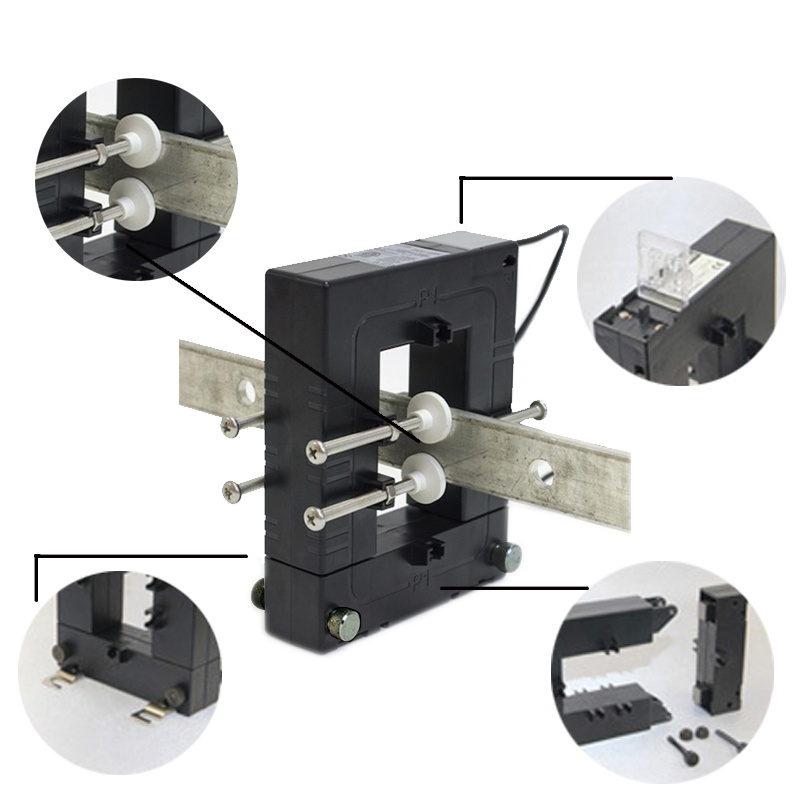

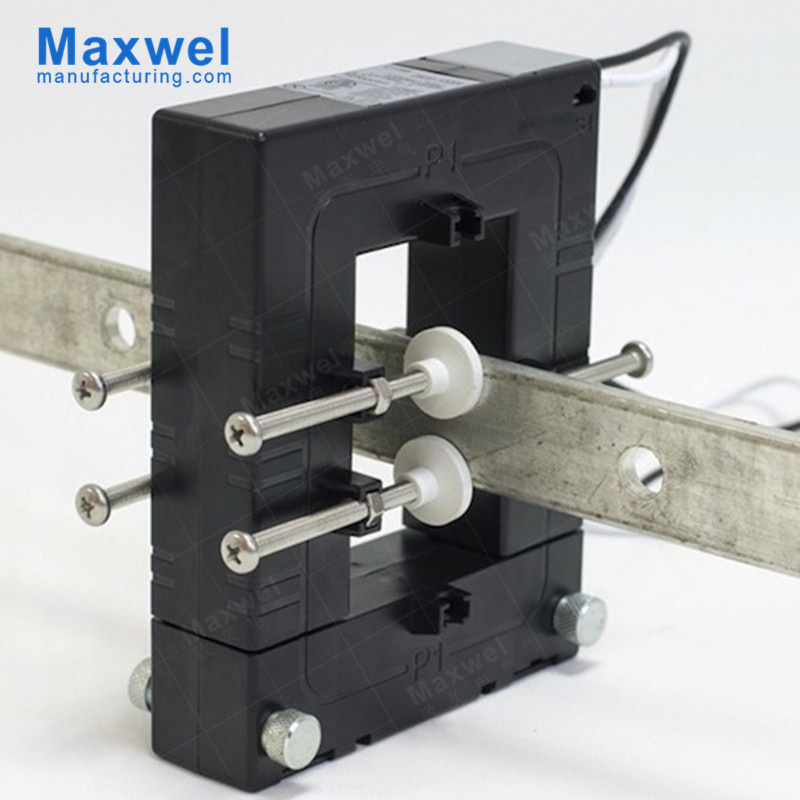

Maxwel MS1 type Split Core Current Transformer
1. Especially designed to facilitate their installation in new or already existing networks
2. Installed without opening any cable or bus bar circuit
3. Easily opened and be installed and connected without any supply interruption, saving time and installation costs
4. Popular in Greece, Italy, Southeast Asia, etc

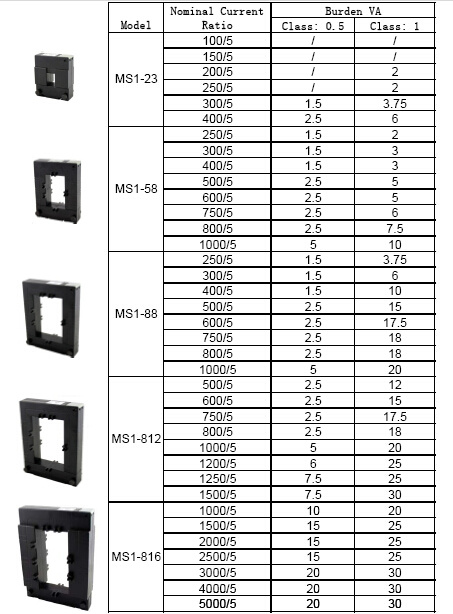

Datasheet

Model	A	B	C	D	E	F	G	H	I	Weight(kg)
MS1-23	20	30	51	89	111	34	47	40	32	0.75
MS1-58	50	80	78	114	145	32	32	32	33	0.9
MS1-88	80	80	108	144	145	32	32	32	33	1.05
MS1-812	80	120	108	144	185	32	32	32	33	1.25
MS1-816	80	120	120	184	245	52	47	52	38	4.3

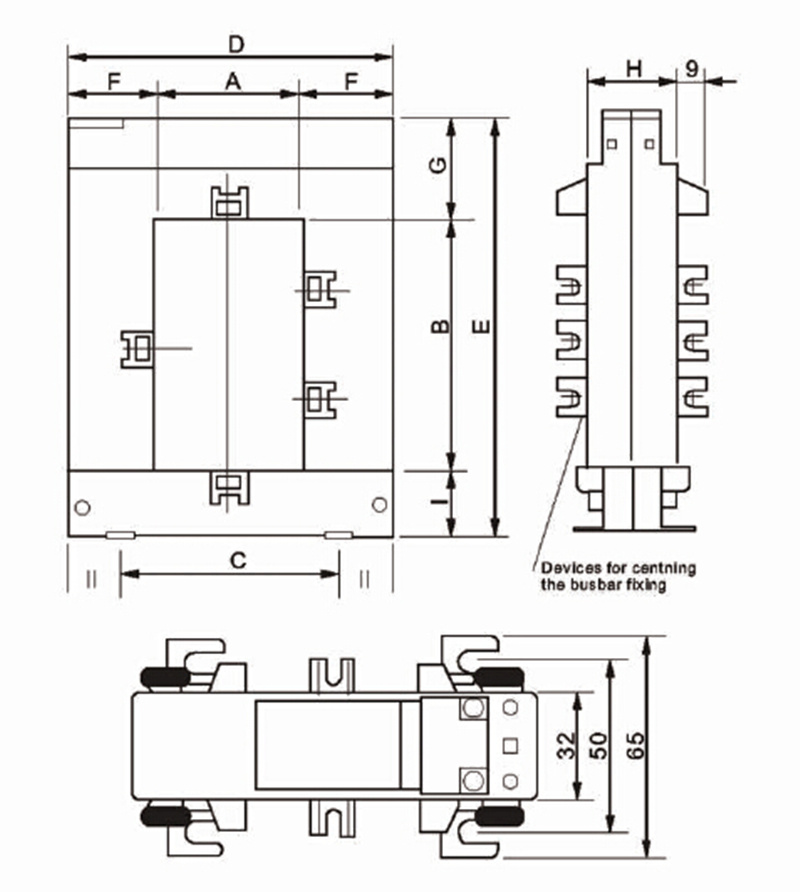

Drawing

More details
