High Sensitive Micro Pressure Sensors MPM281

Name: High Sensitive Micro Pressure Sensors MPM281
Brand: all-electronics-online.com
SKU: 837864565
Availability: InStock
Rating: 4.5 (65 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM281
Pressure Range:	0~7kpa...70MPa
Key Word:	High Stable Piezoresistive OEM Pressure Sensor
Houisng:	Stainless Steel
Weight:	16g
Compensated Temp:	-10~80c
Storage Temp:	-40~125c
Operation Temp:	-40~125c
Pressure Type:	Sealed Gauge,Gauge,Absolute
Local Air Pressure:	(86~106)Kpa
Over Pressure:	1.5 Times Fs

Product Description

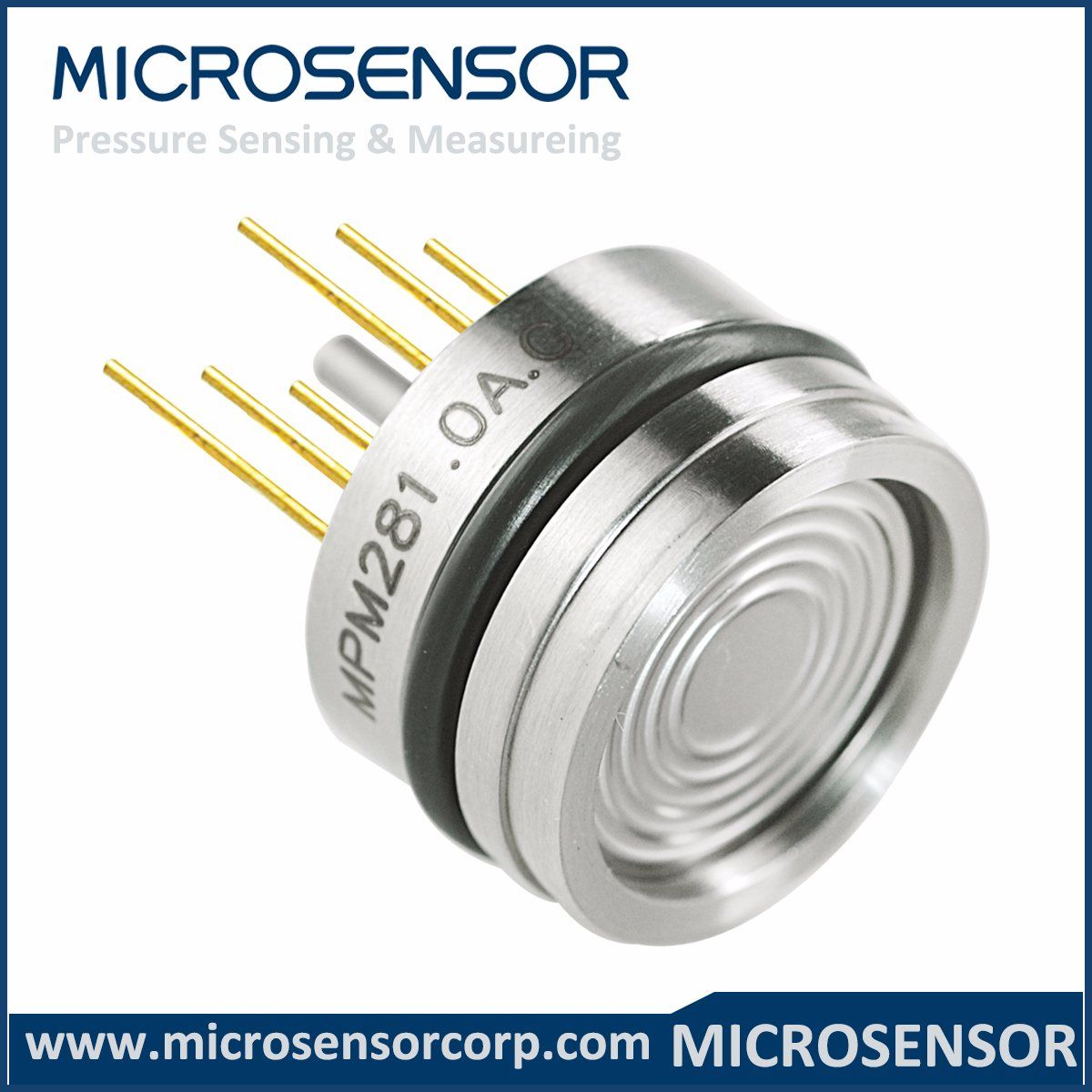

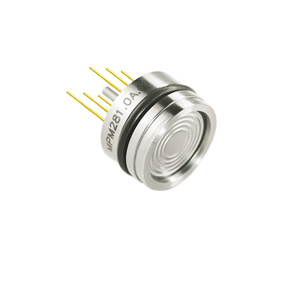

High Sensitive Micro Pressure Sensors MPM281

Features:

·Pressure range 0kPa~7kPa…100MPa

·Gauge, absolute, sealed gauge

·Constant current / Constant Voltage power supply

·Isolated construction, enable to measure various media

·Φ19mm standard OEM pressure sensor

·Full stainless steel 316L

·Wide temperature compensation -10ºC~80ºC

·Long-term stability ±0.1%FS/year

Applications:
1.Level measurement;
2.Pressure calibrator;
3.Aviation and navigation inspection;
4.Industrial process control;
5.Pressure checking meter

Options:
1.Sealed gauge, gauge, absolute;
2.Laser trimming;
3.100mm flexible rubber wire;
4.Outer compensated resistor

Description:
MPM281 High Stable Piezoresistive OEM Pressure Sensor has been tested and checked time after time strictly on automatic production line, it can be used in various occasions to measure liquids pressure with high standard.

Specification:

Item*	Min.	Typ.	Max.	Units
Linearity		±0.15	±0.20	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero output			±2	mV DC
FS output **	70			mV DC
Zero thermal error***		±0.75	±1.0	%FS,@35ºC
Span thermal error		±0.75	±1.0	%FS,@35ºC
Compensated temp. range	-10~80 0~70(7kPa,20 kPa,35 kPa)			ºC
Working temp. range	-40~125			ºC
Storage temp. range	-40~125			ºC
Stability error		±0.1	±0.2	%FS/year
testing at basic condition * for range code 0C, FS output ≥45mV ***for rang code 0C, Zero thermal error≤1.5%FS

Order guide:

MPM281

High Stable Piezoresistive OEM Pressure Sensor

Range code

Pressure range

Ref.

Range code

Pressure range

Ref.

0kPa~7kPa

0MPa~2MPa

G.A

0kPa~20kPa

0MPa~3.5MPa

G.A.S

0kPa~35kPa

G.A

0MPa~7MPa

S.A

0kPa~70kPa

G.A

0MPa~10MPa

S.A

0kPa~100kPa

G.A

0MPa~20MPa

S.A

0kPa~200kPa

G.A

0MPa~35MPa

S.A

0kPa~350kPa

G.A

0MPa~70MPa

S.A

0kPa~700kPa

G.A

0MPa~100MPa

S.A

0kPa~1000kPa

G.A

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Pressure connection

O-ring

Code

Compensation

Laser trimming

Outer compensated resistor (providing resistor value)

Code

Electric connection

Kovar pin(default)

100mm silicon rubber flexible wires

Code

Special measurement

Gauge sensor to measure vacuum

MPM281 07 G 0 L 1 Y the whole spec
