High Stable Piezoresistive Pressure Sensor for Various Media Mpm270

Name: High Stable Piezoresistive Pressure Sensor for Various Media Mpm270
Brand: all-electronics-online.com
SKU: 710154762
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM270
Pressure Range:	0kpa-100k...2MPa
Total Accuracy:	0.02%Fs
Compansated Temp.:	0-70c
Working Temp:	-40~125c
Storage Temp:	-40~125c
Power Supply:	(1.5±0.0015)Madc
Key Word:	Piezoresistive Pressure Sensor
Diaphragm:	Stainless Steel 316L
Net Weight:	~25g
Impact:	100g, 11ms

Product Description

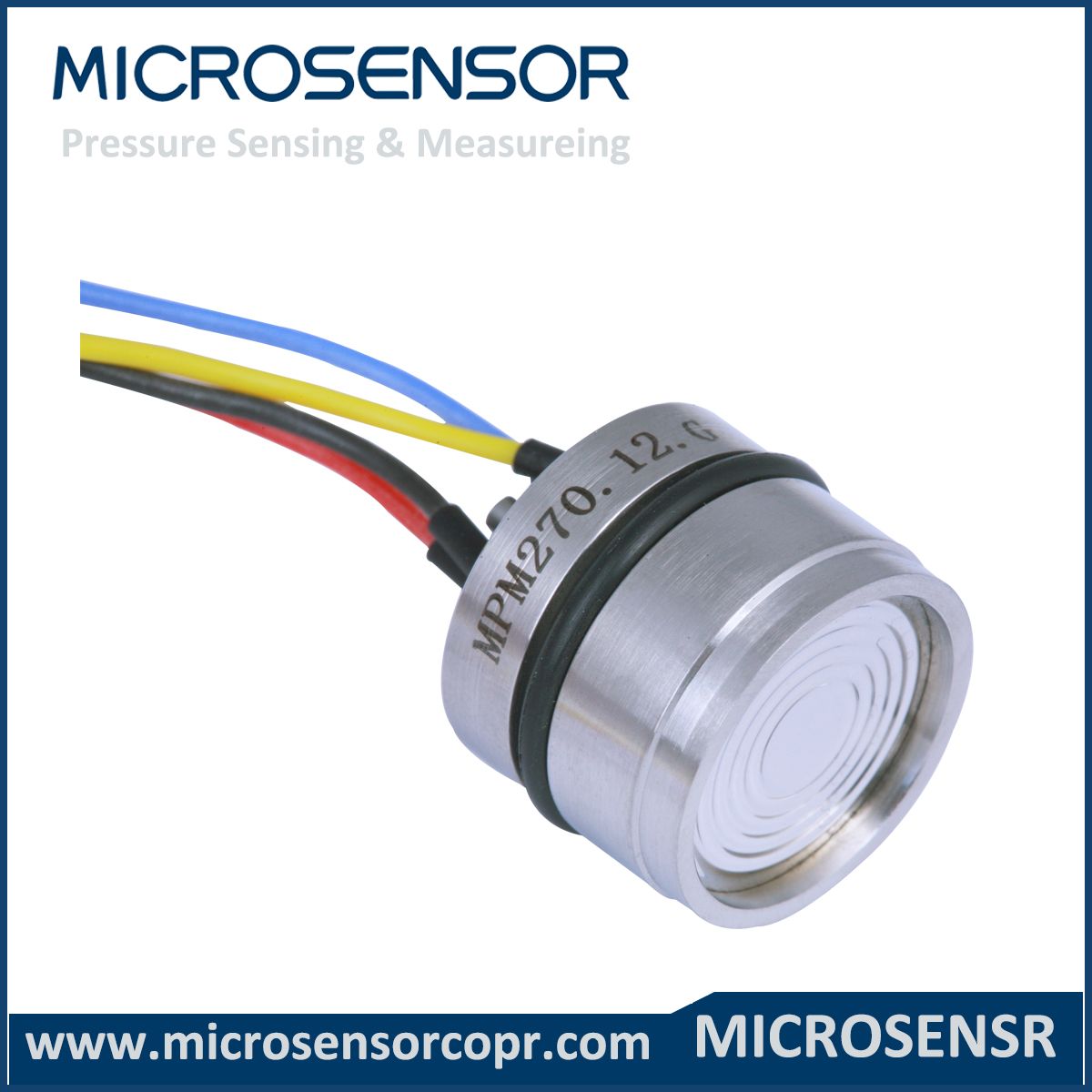

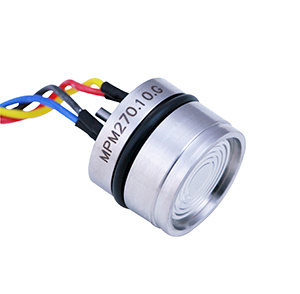

High Stable Piezoresistive Pressure Sensor for Various Media MPM270

Features:
1.High stable;
2.High accurate;
3.Constant current power supply;

Specifications:
1.pressure range:0kPa~100kPa…2MPa;
2. Total accuracy:0.02%FS;
3. Housing: stainless steel 316L;
4. Pin: Kovar or silicon rubber flexible wires;
5. O-ring: EPDM rubber;
6. Net weight: ~25g;

Basic condition:
1.Media temperature: (35±1) C
2.Environment temperature: (35±1) C
3.Shock: 0.1g (1m/s2 )Max
4.Humidity: (50%±10%) RH
5.Local air pressure: (86~106)kPa
6.Power supply: (1.5±0.0015)mADC

Order information:

MPM270

High Stable High Accurate Piezoresistive Pressure Sensor

Range Code

Pressure Range

Ref.

Range Code

Pressure Range

Ref.

0kPa~100kPa

0MPa~1MPa

0kPa~200kPa

0MPa~2MPa

0kPa~350kPa

0kPa~700kPa

Code

Pressure Type

Gauge

Code

Pressure Connection

0 or Null

O-ring

Code

Temperature compensation

Laser Trimming

Code

Electric connection

100mm silicone rubber flexible wires

MPM270 10 G 0 L 2 Whole Spec.
