High-Tech Microwave Human Detector Sensor Module Directly Connected MCU (HW-M08)

Prod Model:	HW-M08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Ray Sensor
Theory:	Optical Sensor
Output:	Analog Sensor
Frequency:	10.525GHz
Input Voltage:	6-24V
Output Voltage:	5V
Current:	<5mA
Distance:	1-5m
Time:	2s
Size:	30*18*5.5mm
Metal Coating:	Tin
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

High-Tech Microwave human detector sensor module Directly Connected MCU (HW-M08)

Samples can be sent to you for testing.
Welcome to ask for inquiry.
Ms. Jane Lee
Shenzhen Haiwang Sensor Co., Ltd
Tel:86-755-82867860 (ext:812)
Mob & : 86-15538987917

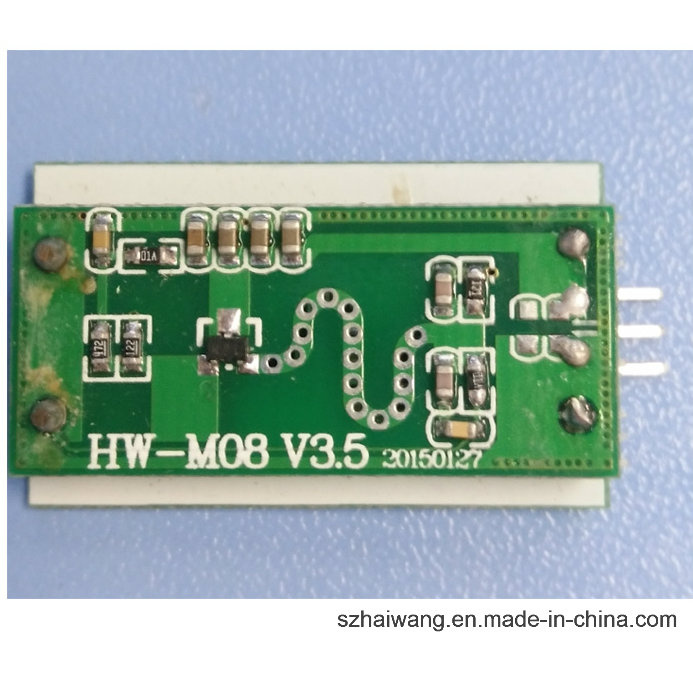

HW-M08 microwave module


1.Detail:
HW - M08 microwave module adopts the planar antenna transmitting and receiving. Induction object for moving objects (or car), after induction to the output voltage signal, for active microwave induction, induction angle is 90degree.Widely used in security monitoring, intelligent systems, control of lamps and lanterns, automatic doors, garage, corridor, roads etc

2.Features:
1).Not affected by temperature, humidity, air, dust, noise, light and dark, not affected by the direction of movement, strong anti-jamming capability.
2) Microwave module is a pattern to launch out, no dead Angle blind area, wide coverage.
3)Microwave is reflected more easily in the process of transmission, sensitivity inside will be better, outdoor is a bit poor.
4)Signal can pass through the glass, obstacles such as trees, plastic (this will make the induction distance attenuation somewhat)
5) Professional design planar with antenna, low power consumption, ROHS, high product consistency.

We can custom the module as your request,welcome to ask me.OEM is highly welcomed.

3.Technical parameters:

Frequency	10.525GHZ
Current	<5mA
Input Voltage	6-24V
Output Voltage	5V
Size	30*18*5.5mm
Distance	1-5m
Time	2S

 4. Warm note:
1)Pls use small ripple of power supply.The power supply voltage must meet the requirements.Also if the power supply current is too small,it can cause false positives or no detecting.
2)When you test the module,pls check if there is anybody within distance 1M.
3)Test In indoor is very sensitive.You shall test when there is no signal output .
4)Please note module output current is very weak, too much drive current is also easy to cause false positives.
5)Can not detect through Metal case
