High Temperature Differential Pressure Transmitter for Gas, Steam (ATEX Approved)
| Price: |
US $ 500-1000/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RP1001 |
| Overpressure Effects: |
0.05% X Span/10MPa |
| Stability: |
0.1% X Span/3 Years |
| Power Supply Effects: |
0.001%/10V (12~42V DC) |
| Output: |
2-Wire, 4-20mA Via Hart |
| Working Pressure Limits (Silicone Oil): |
Max. Working Pressure: 16MPa, 25MPa, 40MPa |
| Static Pressure Limits: |
3.5kpa ABS. to Max. Working Pressure |
| Fill Fluid: |
Silicone Oil / Fluorinated O |
| Weight: |
3.3 Kg |
| Amplifier Housing: |
Aluminum with Epoxy Resin Coat |
| Housing Gasket: |
Perbunan (NBR) |
| Structure Type: |
Monocrystalline Silicon |
| Accuracy Grade: |
0.075%F.S |
| Pressure Range: |
0 - 100PA~2MPa |
| Certification: |
Atex |
Product Description
Tosilon High Temperature Differential Pressure Transmitter for Gas, Steam (ATEX Approved)Design and Manufacturing according to ATEX StandardGeneral DescriptionThe high performance differential pressure transmitter RP1001-A is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure.
RP1001-A outputs a 4-20mA DC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications.
Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Span & Range LimitsSpan/
Range
Limits | kPa | inH20 | mbar | mmH20 |
| C | Span | 0.4~40 | 1.6~160 | 4~400 | 40~4000 |
Range
Limits | -40~40 | -160~160 | -400~400 | -4000~4000 |
| D | Span | 2.5~250 | 10~1000 | 25~2500 | 0.25~25mH2O |
Range
Limits | -250~250 | -1000~1000 | -2500~2500 | -25~25mH2O |
| E | Span | 20~2000 | 80~8000 | 0.2~20 bar | 2~200mH2O |
Range
Limits | -500~2000 | -2000~8000 | -5~20 bar | -5~200mH2O |
EMC Performance Table| Items | Test Items | Basic Standard | Test Condition | Performance Level |
| 1 | Radiated Interference (Housing) | GB/T 9254-2008 | 30 MHz~1000 MHz | OK |
| 2 | Conducted Interference
(DC Power Port) | GB/T 9254-2008 | 0.15 MHz~30 MHz | OK |
| 3 | Electrostatic Discharge (ESD)
Immunity | GB/T 17626.2-2006 | 4kV (Line)
8kV (Air) | B |
| 4 | RF Electromagnetic Field
Immunity | GB/T 17626.3-2006 | 10V/m (80 MHz~1 GHz) | A |
| 5 | Frequency Magnetic Field
Immunity | GB/T 17626.8-2006 | 30A/m | A |
| 6 | Electrical Fast Transient Burst
Immunity | GB/T 17626.4-2008 | 2kV/(5/50ns, 5kHz) | B |
| 7 | Surge Immunity | GB/T 17626.5-2008 | 1kV (Line to Line)
2kV (Line to Ground)
(1.2us/50us) | B |
| 8 | Conducted Interference
Immunity induced by RF Field | GB/T 17626.6-2008 | 3V (150 KHz ~ 80 MHz) | A |

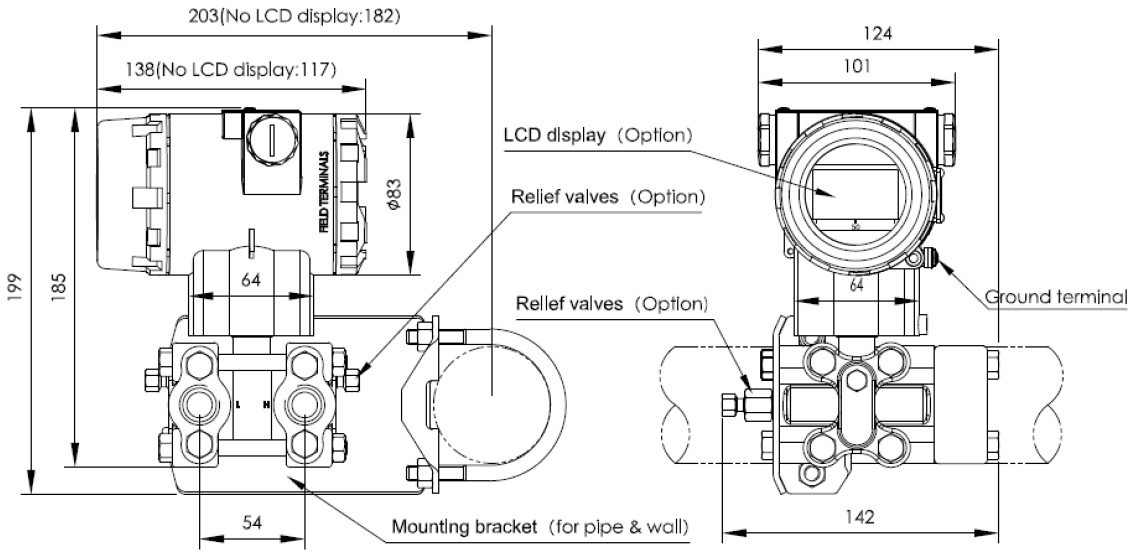

Dimensions
For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
As a China leading mass flowmeter manufacture, Tosilon Automation, establish in 1989, has been engaged in and leads the advanced technology in Coriolis Mass Flow Meter, Density Meter and Flow Metering System which are more effective, efficient and innovate.
In the past 20 years, by cooperating with Northwestern Polytechnical University, Huazhong University of Science and Technology, Xi'an Shiyou University and CSIC Xi'an Dong Yi Science Technology & Industry Group Co., Ltd, financially supported by Provincial Science Technology Program, numbers of achievements and breakthroughs had been made in product-design and production process.
As a leading company in industrial measuring field in China, Tosilon offers complete solutions to flow, density, level, pressure, explosion protection, oil condition monitoring systems, etc. Presently, Tosilon's instrumentation has acquired certifications including CE, FCC, IECEx, ATEX. By years of efforts in improving and modifying, Tosilon has its featured products professionalized to meet the needs from major industries covering Oil & Gas Industry, Petrochemical Industry, Chemical Industry, Mineral Industry, Food Industry, Wine Industry, Paper Making, Power Plant, Drilling Mud Field, Pharmaceutical Industry, aviation, etc. Tosilon is always committed to the innovation and improvements in the technology, providing advanced products, solutions, and offering professional services to clients.
Mission & Vision
Tosilon will always be in pursuit of providing professional and technical services in density and flow management with innovation and extensive research, full of energy to welcome the challenges and pressures from various industries, providing the most reliable, flexible, affordable and advanced equipment.
Tosilon will always be studying client's needs, offering specific solutions and have them integrated to your demand in process control.
