High Temperature Electrical Insulation Material DMD Paper for Motor Winding

Name: High Temperature Electrical Insulation Material DMD Paper for Motor Winding
Brand: all-electronics-online.com
SKU: 808906235
Availability: InStock
Rating: 4.5 (62 reviews)

Price:	US $ 5KG
Min Order:	100KG
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Application:	Electrical Winding Insulation
Type:	Insulation Paper
Thermal Rating:	B 130

Product Description

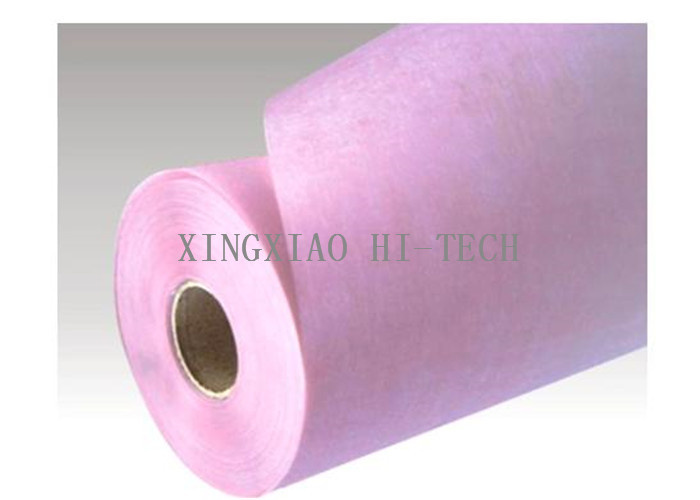

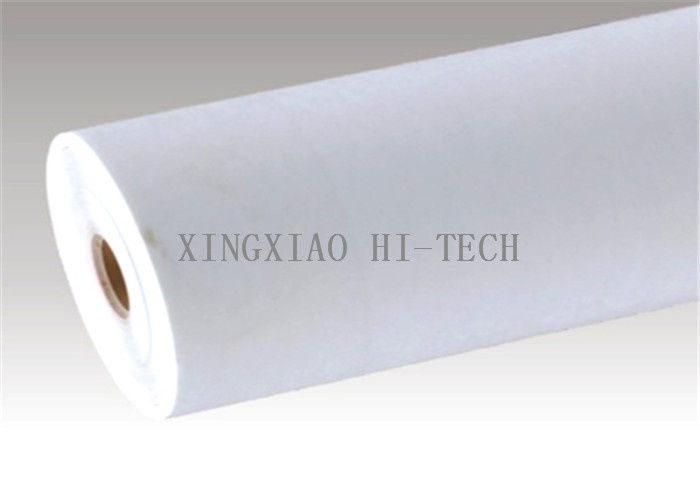

Class B or F Electrical Insulation Material Polyester Film Composite DMD Paper

Description:

Professional Class B and F composite material DMD insulation PAPER consists of two Layers of Polyester Fiber Non-woven Fabric and a single layer of Polyester Film in the center.

Features:

It is Class B & F insulating material.
This product has excellent mechanical strength,strong deflection, be suitable for mechanized insert slot.

Application:

It is suitable for Y electrical motors as slot liner and turn-to-turn insulation.

Specification :

Thickness:0.18,0.20,0.23,0.25,0.30,0.35
Nominal width(mm):1000mm

Technical Parameters:

Product Name	Properties	Value
6630/6641	Thickness(mm)	0.15	0.17	0.2	0.25	0.30	0.35
DMD composite paper	Tolerance(mm)	±0.02	±0.025	±0.03			±0.04
	Breakdown Voltage(kv)	6	7	9	12	15	18
	Bong Strength AT ROOM Temp	No Delamination
	Bong Strength at (155±2)ºC,10min	No Delamination, no blister, no adhesive flow
