High Temperature Insulated FEP Electrical Wire with UL Certificate

Name: High Temperature Insulated FEP Electrical Wire with UL Certificate
Brand: all-electronics-online.com
SKU: 830941035
Availability: InStock
Rating: 4.6 (33 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1332
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Teflon
Certification:	CSA, Ts16949
Application:	Home Appliance, Head Lamp, Industrial Machine,
Conductor Material:	Tinned Copper
Sheath Material:	FEP
Range Of Application:	Home Appliance, Head Lamp, Industrial Machine,
Brand:	Mysun

Product Description

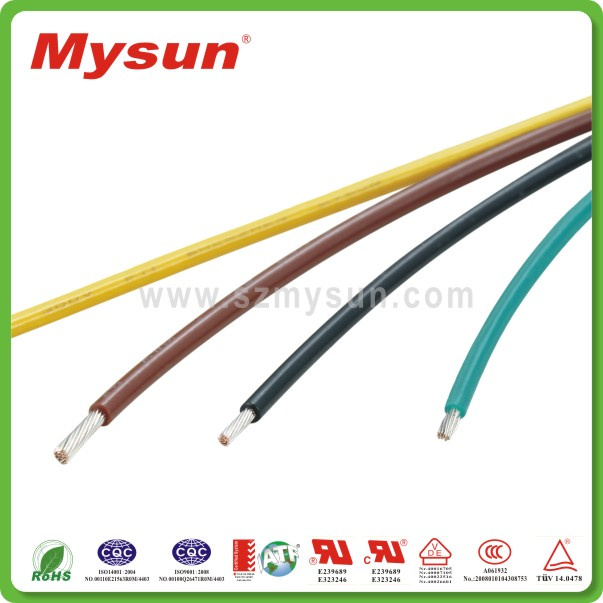

High temperature insulated FEP Electrical wire with UL certificate

Specifications:

Nominal voltage: 300V

Temperature range: 200C

Standard: UL 758

Insulation: FEP

Conductor: tinned copper wire

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
30	1/0.26	0.26	0.305	0.87	361	610/2000
30	7/0.10	0.30	0.305	0.91	361	610/2000
28	1/0.32	0.32	0.305	0.93	227	610/2000
28	7/0.12	0.36	0.305	1.38	227	610/2000
26	7/0.16	0.48	0.305	1.09	143	610/2000
26	19/0.10	0.48	0.305	1.11	143	610/2000
24	1/0.50	0.50	0.305	1.11	89.3	610/2000
	7/0.20	0.60		1.21
	19/0.12	0.60		1.21
22	1/0.65	0.65	0.33	1.31	56.4	305/1000
	7/0.254	0.76		1.42
	19/0.15	0.75		1.41
20	1/0.81	0.81	0.33	1.47	35.2	305/1000
	7/0.31	0.93		1.59
	19/0.19	0.93		1.59
18	1/1.02	1.02	0.33	1.68	22.2	305/1000
	7/0.39	1.17		1.83
	19/0.235	1.17		1.83
16	1/1.30	1.30	0.33	1.96	14	305/1000
	7/0.49	1.47		2.13
	19/0.30	1.50		2.16
14	19/0.37	1.85	0.33	2.51	8.78	305/1000
12	19/0.47	2.35	0.33	3.01	5.53	305/1000
10	19/0.61	3.05	0.33	3.71	3.476	305/1000

Service:

Shipment:

1. by express

2. by sea

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
