High Temperature PCB Board with Immersion Gold and Green Mask
| Price: |
US $ 0.86/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-227-V2.27 |
| Outer Copper Foil: |
1 Oz |
| Board Thickness: |
1.6mm |
| Surface Treament: |
Enig |
| Solder Mask: |
Green |
| Legend Color: |
White |
| Min Line Width (Mil): |
6.2 Mil |
| Min Line Spacing (Mil): |
5.8 Mil |
| Electrical Test: |
100% PCB Passed |
| Visual Inspection: |
Ipc-a-600h&Ipc-6012c |
| Solderability Test: |
245ºC 5s 1 Cycle |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

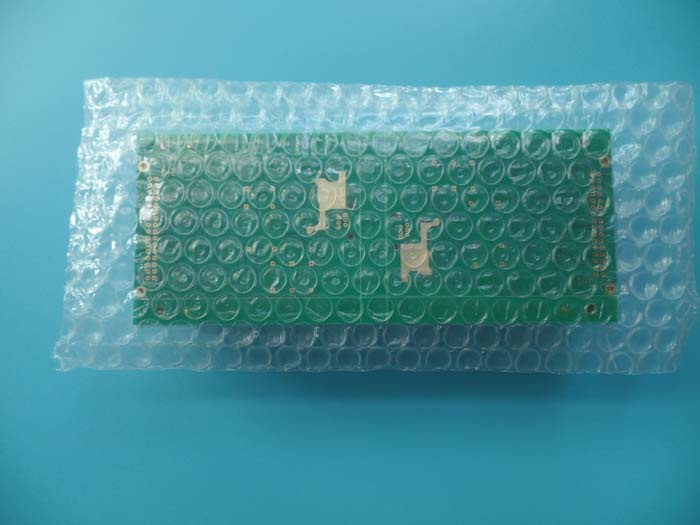

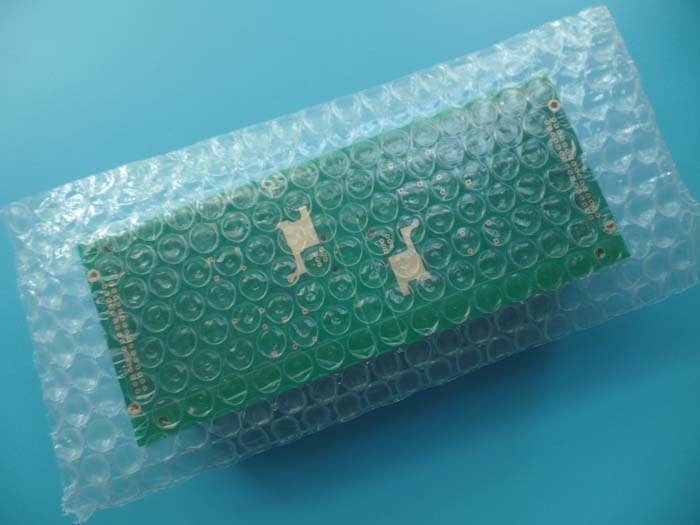

8 Layer PCB FR-4 Tg170 High Temperature PCB With Green Solder Mask and Immersion
Gold in Balanced Amplifier
Commodity Introduction
This is a type of FR-4 PCB for the application of Balanced Amplifier. It's an 8 layer board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 TG170 | FR-4 TG170 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.6+/-10%mm | 1.58-1.64mm |
| Outer copper foil | >=35 um | 43.37um |
| Inner copper foil | 1/1 OZ | / |
| Warp-twist | <= 0.75% | 0.17% |
| Legend | Type | IJR-4000 MW300 | IJR-4000 MW300 |
| Color | White | White |
| Location | CS | CS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | WWYY |
| Marking form | NA | OK |
| Location | CS | CS |
| Min line width (mil) | 6 | 6.2 |
| Min line spacing (mil) | 6 | 5.8 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | PSR-2000GT 600D | PSR-2000GT 600D |
| Color | Green | Green |
| Thickness | >=10 um | 13 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface treament | ENIG | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |

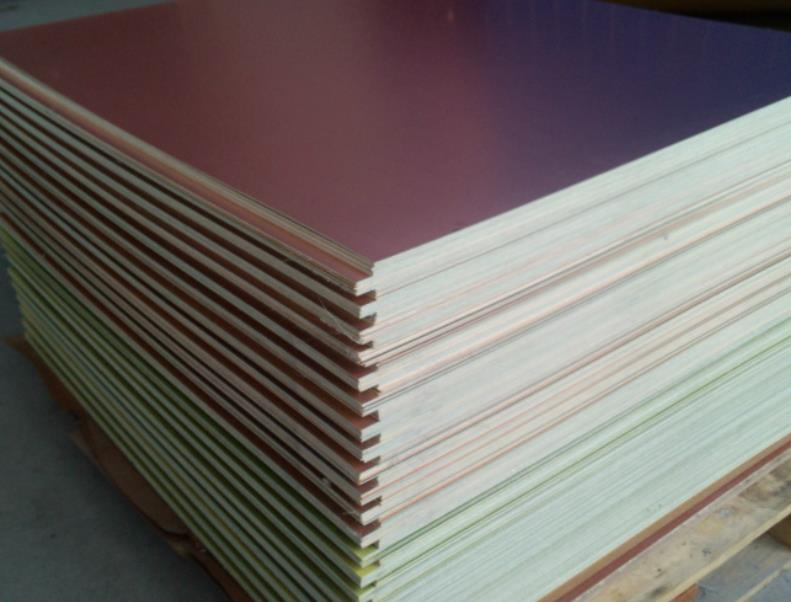

Learn PCB and Buy PCB--Specifications of Laminates FR-4
When ordering a copper clad laminate board, the FR-4 thickness and the copper foil thickness
must be specified separately.
FR-4 thickness is specified in thou or inches, and common thicknesses range from 10 thou (0.010
in, 254µm) to 3 inches (76 mm).
Copper foil thickness is specified in units of ounces per square foot (oz/ft2), commonly referred to
simply as ounce. Common thicknesses are 1 oz/ft2 (300 g/m2), 2 oz/ft2 (600 g/m2), and 3 oz/ft2
(900 g/m2). These work out to thicknesses of 34.1 µm (1.34 thou), 68.2 µm (2.68 thou), and 102.3
µm (4.02 thou), respectively. Some PCB manufacturers refer to 1 oz/ft2 copper foil as having a
thickness of 35 µm (may also be referred to as 35μ, 35 micron, or 35 mic).
1/0 - denotes 1 oz/ft2 copper one side, with no copper on the other side.
1/1 - denotes 1 oz/ft2 copper on both sides.
H/0 or H/H - denotes 0.5 oz/ft2 copper on one or both sides, respectively.
2/0 or 2/2 - denotes 2 oz/ft2 copper on one or both sides, respectively.
Due to the development needs of electronic product installation technology and PCB technology,
the high Tg (Glass temperature) FR-4 products was born.
