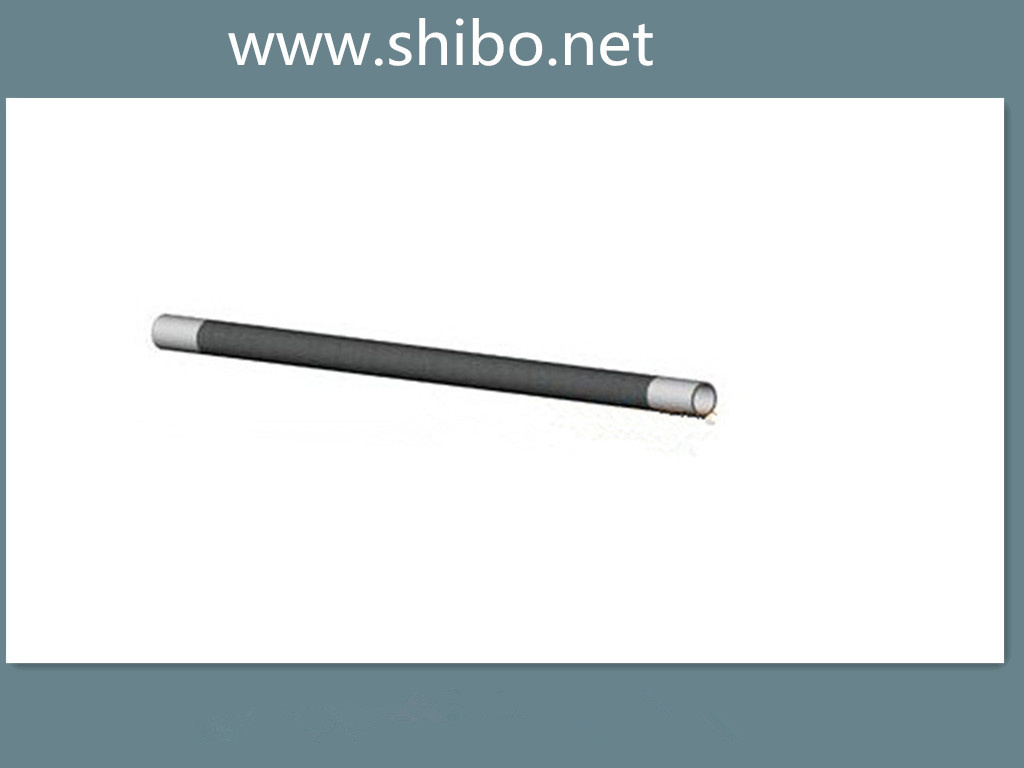

High Temperature Silicon Carbide Rod Sic Heating Element

Name: High Temperature Silicon Carbide Rod Sic Heating Element
Brand: all-electronics-online.com
SKU: 690504022
Availability: InStock
Rating: 4.3 (122 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Rod, U, W, Sprial
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Gray
Power Source:	Electric
Model Number:	Rod Heating Element
Brand Name:	Shibo
Dimension(LWH):	1800X20X20mm
Weight:	3kgs
Voltage:	220V
Power(W):	5kw
Application:	Heater
Structure Material:	Ceramic
Principle:	Regenerative Heat Exchanger
Heat Transfer Surface:	Rod

Product Description

Silicon carbide SiC heating element Specifications

1. High working temperature: 1400C.
2. Long time last.
3. Varous type available. Rod, U, W, Single Spiral, Double Spiral

Our SiC heating elements Advantage .

1. High working temperature: 1500C (Surface Temperature)

2. Various shapes: Rod, U, W, Single Spiral, Doule Spiral shapes are availible.

3. Large size range: Diameter 14-54mm, Length 200-4500mm.

4. Fast Delivery: Normal quantity can be ready in 10 days.

5. Very competitive prices.

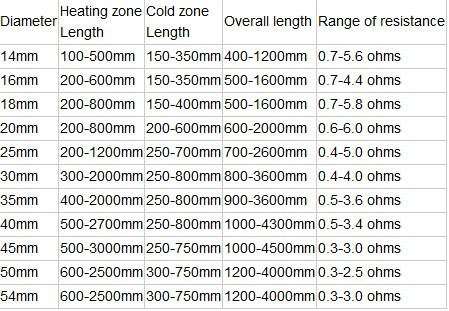

Our SiC heating elements Standard Sizes .

Order Sample of the Silicon Carbide rod

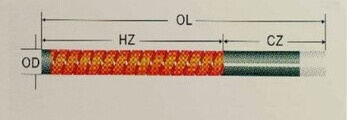

ED(Rod)Shape:OD=54mm,HZ=1575mm,CZ=419mm OL=2413mm ,Resistance :0.9

Please Specify As: 54/1575/2413/0.90

Zhengzhou Shibo Nonferrous Metals Products Co., Ltd., is the High & New technology Enterprise specially engaged in developing, manufacturing and selling nonferrous metals products, electric heating elements, furnace and fire-proof material products.

Zhengzhou Shibo locates at Zhongyuan Industry Area, Zhengzhou City, Henan Province, where is a hub of communications, commercial and trading center in China. Holding the enterprise spirit of "Unity, Hard-working, Innovation, Efficiency", Zhengzhou Shibo enjoys high reputation for its high quality products and knight service in domestic and abroad, at the same time, the Company grows very fast with a total area of about 25, 000 square meters and 103 employees. The products are exported to USA, Europe, Middle East, South East Asia, Russia, Japan and Korea and so on owing to the keen consciousness of quality and commercial reputation.

Products of Zhengzhou Shibo are widely used in the applications of glass, Chinaware, lighting, magnetism materials, fluorescent materials, false crystal, Machinery, Electro Vacuum materials, industrial apparatus etc. There are four main categories of Products: Electric heating elements, Nonferrous metals products, Furnace and fire-proof material.

Zhengzhou Shibo values product quality and keeps pursuing excellent quality. Holding the concept of "Creating the value for customers and seeking for development with mutual benefit", Zhengzhou Shibo will sincerely serve the customers at home and abroad with quality products for a better future.

We sincerely welcome all the friends at home and abroad to visit our company.
