High Temperature Teflon Insulation, 300V PFA Electrical Wire

Name: High Temperature Teflon Insulation, 300V PFA Electrical Wire
Brand: all-electronics-online.com
SKU: 831195875
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	US $ 0.021-0.05/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	8298
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Teflon
Certification:	Tsa, CSA16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Nickel Plated Copper Wire
Sheath Material:	PFA
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

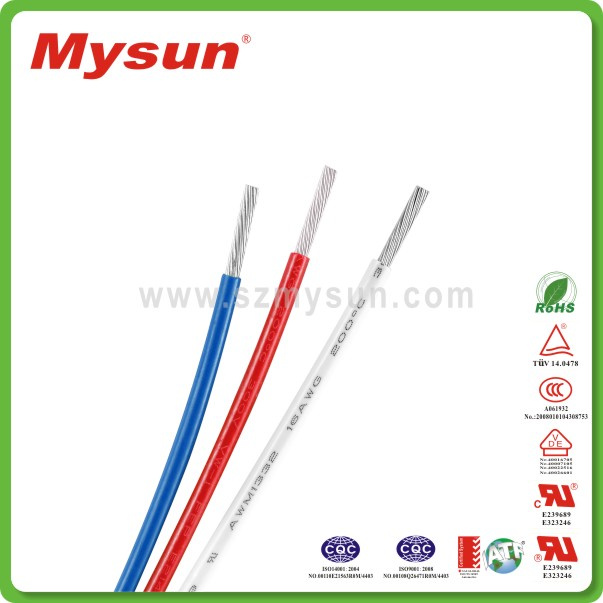

High temperature teflon insulation,300V PFA Electrical Wire

Conductor			Insulation		Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
0.12	7/0.15	0.46	0.305	1.06	150.15	610/2000
0.20	7/0.20	0.60	0.305	1.21	89.3	610/2000
0.30	19/0.15	0.75	0.305	1.36	59.78	610/2000
0.50	19/0.19	0.95	0.305	1.56	40.1	305/1000
0.75	19/0.23	1.17	0.305	1.78	26.7	305/1000
1.00	19/0.26	1.31	0.305	1.91	20	305/1000
1.25	19/0.29	1.46	0.305	2.16	14.35	305/1000
1.50	19/0.32	1.61	0.305	2.31	13.7	305/1000
2.00	19/0.37	1.85	0.305	2.55	8.78	305/1000
2.50	19/0.41	2.06	0.305	2.76	7.16	305/1000
3.00	19/0.47	2.35	0.305	3.05	6.5	305/1000
4.00	19/0.52	2.60	0.450	3.50	4.7	305/1000
5.00	37/0.43	3.01	0.450	3.91	3.76	305/1000

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
