High Tg Multilayer PCB 6 Layer White Silkscreen with Immersion Gold
| Price: |
US $ 0.84/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-156-V1.56 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Minimum Trace And Space: |
5 Mil/6.2 Mil |
| Minimum / Maximum Holes: |
0.35/5.1mm |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

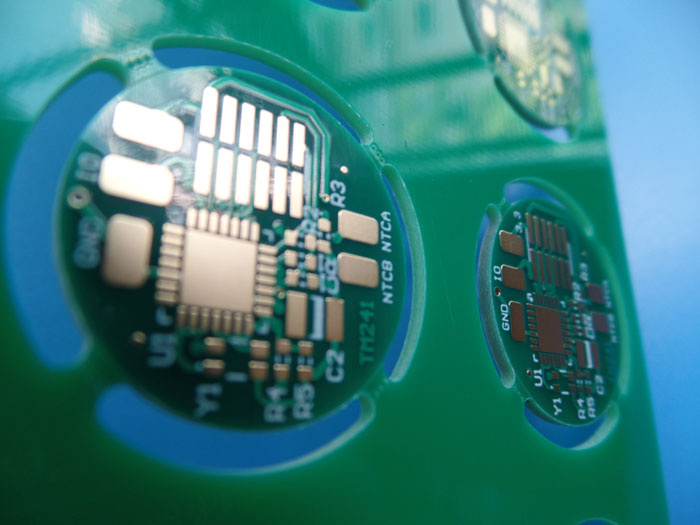

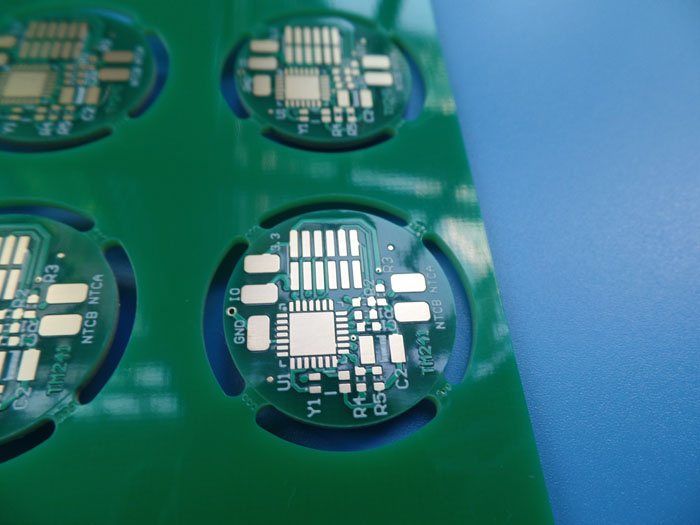

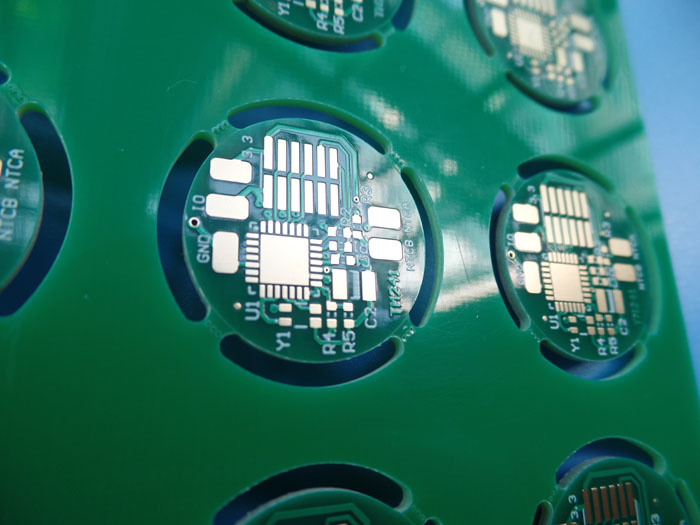

High Tg PCB Multilayer PCB 6 Layer PWB at 1.6mm 1oz Green PCB Applied in PLC
Commodity IntroductionThis is a type of FR-4 PCB for the application of PLC. It's a 6 layer board at 1.6mm thick. The base
laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2
using supplied Gerber data. Each 10 boards or panels are packed separately.

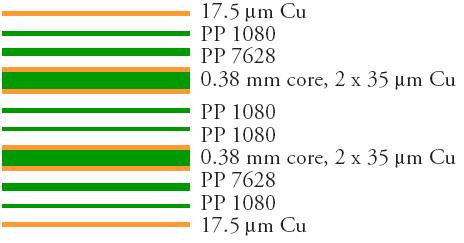

Parameters & Data Sheet| PCB SIZE | 91.5x 82mm=20PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 6 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 0.4mm |
| copper ------- 35um(1oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 3 |
| FR-4 0.4mm |
| copper ------- 35um(1oz) MidLayer 4 |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5mil/6.2mil |
| Minimum / Maximum Holes: | 0.35/5.1mm |
| Number of Different Holes: | 10 |
| Number of Drill Holes: | 591 |
| Number of Milled Slots: | 31 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (12.6%) 2micoinch
over 110 microinch nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, v-cut, Fiducial marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Dc-Dc Converters
Plc Programmer
Door Access
Plc Automation
Three Phase Inverter
Vehicle Trackers |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
The Standard 6layer PCB stackup with 1.6mm thickness from Bicheng Company
