High Thermal Conductivity PCB Board 10 Oz (350 um)

Name: High Thermal Conductivity PCB Board 10 Oz (350 um)
Brand: all-electronics-online.com
SKU: 831033575
Availability: InStock
Rating: 4.5 (88 reviews)

Price:	US $ 1.2/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-552-V5.52
Aluminum Core:	1W / Dielectric Material 75 Um
Thermal Resistance(°c/W):	<=0.45
Final Foil External:	1 Oz
Final Height Of PCB:	1.6mm
Surface Finish:	Immersion Gold
Solder Mask Color:	Black, Taiyo Psr400 Wt02
Colour Of Component Legend:	No Required
Via:	Non Plated Throught Hole (Npth)
Test:	100% Electrical Test Prior Shipment
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Aluminum
Dielectric:	Aluminum 6061

Product Description

Company Profile
Founded in Shenzhen China in 2003 Bicheng Enterprise Limited is a professional PCB export
enterprise. We have established a good relationship of cooperation with well-known enterprises
in the same industry. Our PCB products range from fiberglass PCB, high frequency PCB to metal
core PCB and ceramic PCB's.

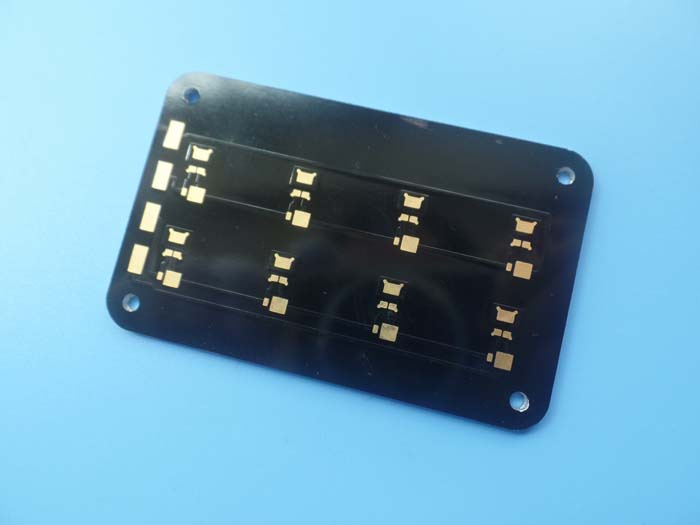

Aluminum PCB

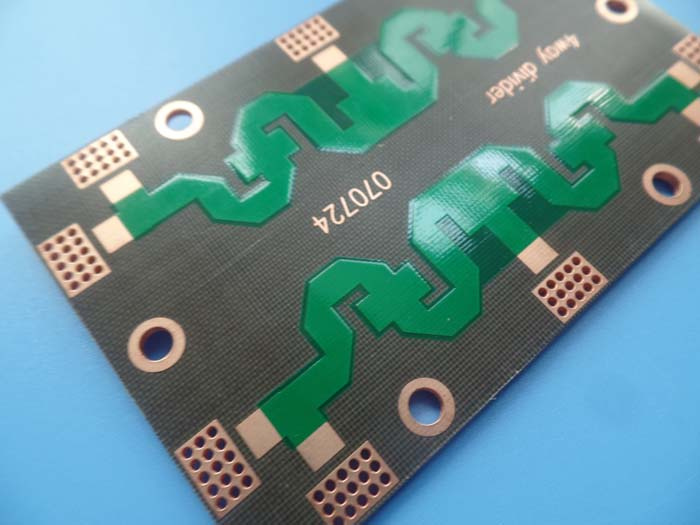

High Frequency PCB

Flex PCB

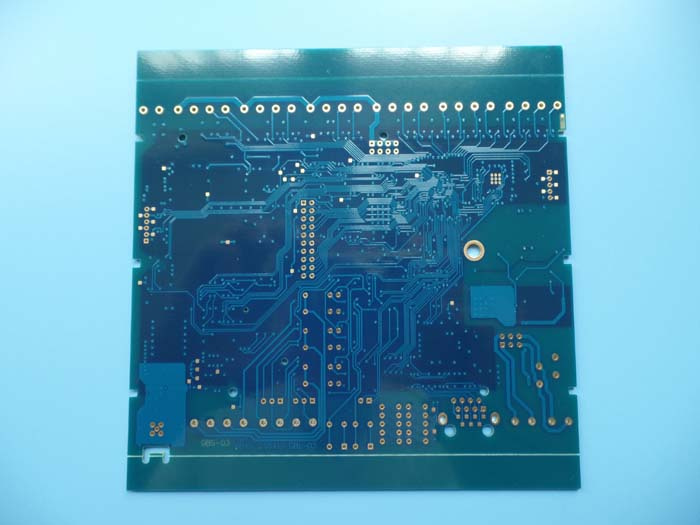

PCB Circuit Board

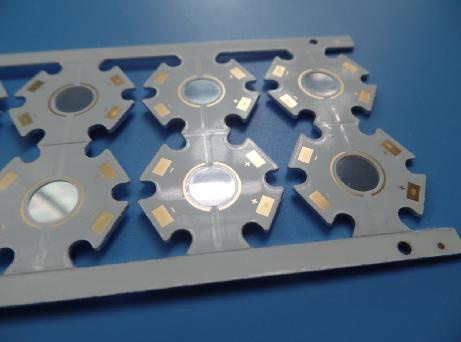

Metal core PCB, LED PCB

Metal core PCB's are thermal management circuit boards which use a base metal material as the
heat dissipater part of the PCB. They are used in high heat generating application like LED lighting
in the area of high power LED lighting, Automotive Interior, Exterior Lighting, Parking Garage
Lighting, LED spot light etc.

Bicheng provides metal core PCB (MCPCB) as follows:

1) Single sided, double sided and multi layers.
2) Insulated metal substrate (IMS PCB) and Metal core PCB (MCPCB)
3) High thermal conductivity to 3W/MK
4) Heavy copper up to 4oz
5) Proceeding thickness: 0.4-6.0mm thick
6) Plate through hole (PTH≥20μm)
7) BGA (minimum pad at 14 mils), Impedance control (+/-10)
8) V-Groove, Punch, CNC mill
9) Long strips, composite aluminum
10) ENIG, HASL, OSP and Immersion tin

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
