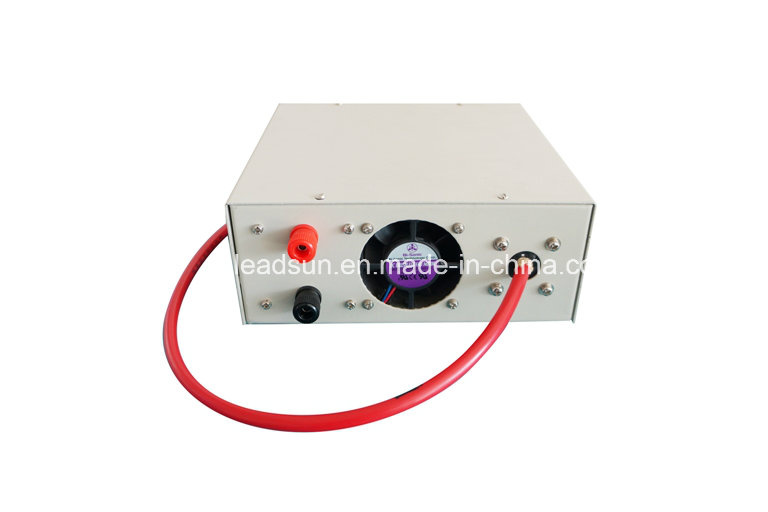

High Voltage 24V DC LS-ESP 100KV/0.15mA Variable Power Supply

Prod Model:	LS-ESP 100KV/0.15mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
L*H*B:	60*120*200mm
Ambient Temperature:	-20oc~50oc
Working Frequency:	20kHz
Cooling:	Air Cooling
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Input Voltage:	24V DC
Starting Mode:	Soft Start
Brand:	Leadsun

Product Description

High Frequency High Voltage Power Supply LP100KV-0.15mA
Specifications

Item	Parameters	Remarks
Input voltage	24V DC	Wave less than 10%
Rated power	15W	Full load, output Umax, Imax
Rated output voltage	100KV
Rated output current	0.15mA
Comparative voltage control accuracy	1%	Uo=80%Umax
Absolute voltage control accuracy	3%	Uo=80%Umax
Voltage/temperature coefficient	20V/1K
Voltage program accuracy	Better than 1%
Voltage output range	10-60KV adjustable
Output limiting current	0.15mA
Control response time	Better than 3mS
Ambient temperature	-20 ~ 50ºC
Ambient humidity	10% ~ 90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	Phase-shifting PWM
Current control mode	Constant current of average value  Peak value testing	Within 100nS peak value loading, cut off and restart automatically
Working frequency	20kHZ
Converting efficiency	Better than 80%	Output voltage from 50% - 75%, efficiency 80% - 90
Voltage regulation rate	<1.0%	0~0.2mA
Ripple Coefficient	Less than 1%
Current and voltage program mode	By 10 turns potentiometer with indicator
Dimension	60*120*200mm   L*B*H

Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of  Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
