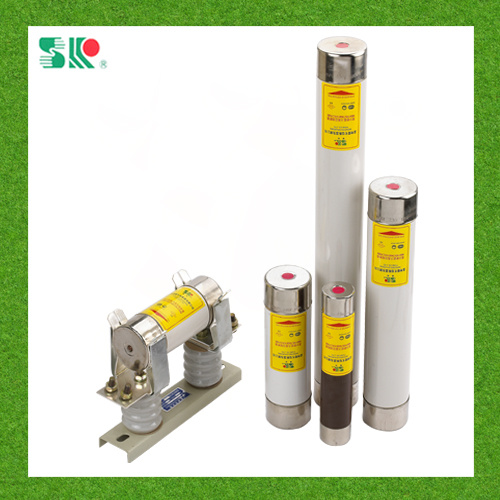

High Voltage Current Limiting Fuses for Motor Protection

Name: High Voltage Current Limiting Fuses for Motor Protection
Brand: all-electronics-online.com
SKU: 706527185
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WDFHO, WFFHO, WDNHO, WFNHO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Porcelain
Color:	Brown, White
Length:	254, 403, 600mm
Diameter:	51, 76mm
Operation:	Manual Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-Extinguishing Medium:	Air
Function:	Ovp(Overvoltage Protection)
Breaking Capacity:	High Voltage Circuit Breakers
Type:	High Voltage Fuse
Usaga:	Motor Protection,Overload Protection
Shape:	Stubular Structure
Standard:	IEC282-1 GB15166.2

Product Description

Key Specifications/Special Features:

1. Motor protection

2. High breaking capability

3. High voltage current limiting fuse

4. Suitable for electrical power system of AC 50Hz, rated voltage 10kV and below, rated current up to 400A(3.6KV), 224A(7.2KV) circuit for protecting motor and other power equipment from overload and short-circuit.

5. High-pressured fuse conforms to the national GB15166.2 standard and the international electrical committee IEC 60282 standard as well as German DIN standard and British BS standard.

Foreign Model	Department Model	Rated voltage (kV)	Rated current (A)	Rated breaking current (kA)	Diameter (mm)	Length (mm)
WDF. O	XRNM1	3.6	31.5, 40, 50, 63, 80, 100, 125	50	51	254
WFF. O	XRNM1	3.6	125, 160, 200	50	76	254
WKF. O	XRNM1	3.6	250, 315, 355, 400	50	76	254
WFN. O	XRNM1	7.2	25, 31.5, 40, 50, 63, 80, 100, 125, 160	40	76	403
WKN. O	XRNM1	7.2	200, 224	40	76	403
	XRNM1	10	25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, 224	40	76	600

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
