High Voltage Diode 2cl73A Fast Recovery

Name: High Voltage Diode 2cl73A Fast Recovery
Brand: all-electronics-online.com
SKU: 717392542
Availability: InStock
Rating: 4.6 (46 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	2CL73A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	2cl73A
Brand:	Leadsun

Product Description

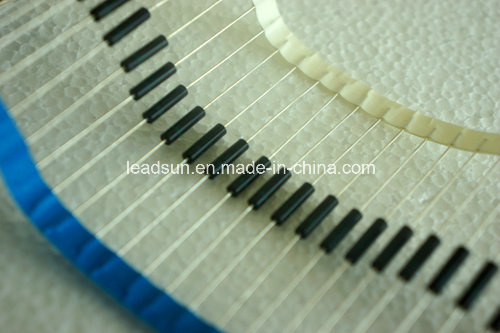

2CL73A High voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube, molded in small volume and compact packaging surface by epoxy resin.
Features:

Fast recoveryLow forward on pressure, low leakage currentProtection of avalanche breakdownAntiimpacting of discharging of CRT high voltage surge currentAxial lead diode, could weld on tube pinEpoxy resin molded and can resist corrosion on its surfaceApplication:

Television and FBT displayCathode ion generator, laser power supplyneon lamp power supply, voltage multiplier assemblyDC high voltage generator assembly
Absolute Maximum Ratings

Item	Symbol	Rating	Unit	Conditions
Repetitive Peak Reverses	VRRM	12	KV
Maximum Junction Temperature	Tjmax	120	ºC
Storage Temperature	Tstg	-40~+120	ºC
Average Forward Current	Io	5	mA	Tamb=50ºC
Forward Surge Current	IFSM	0.5	A

Electrical Characteristics (Tamb=25ºC,unless otherwise specified )

Item	Symbol	Rating	Unit	Condition
Normal Temperature Reverse Current	IR1	2.0max	μA	VR=15KV
High Temperature Reverse Current	IR2	50max	μA	VR=15KV Tamb=100ºC
Reverse Breakdown Voltage	VF	37.5	V	IF=500mA
Reverse Recovery Time	trr	100	nS	IF=100mA IR=200mA

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
