High Voltage Diode 2clg20kv/0.1A

Name: High Voltage Diode 2clg20kv/0.1A
Brand: all-electronics-online.com
SKU: 716745722
Availability: InStock
Rating: 5 (59 reviews)

Price:	Negotiable/Piece
Min Order:	10000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	2CLG20KV/0.1A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	2clg20kv/0.1A
Brand:	Leadsun

Product Description

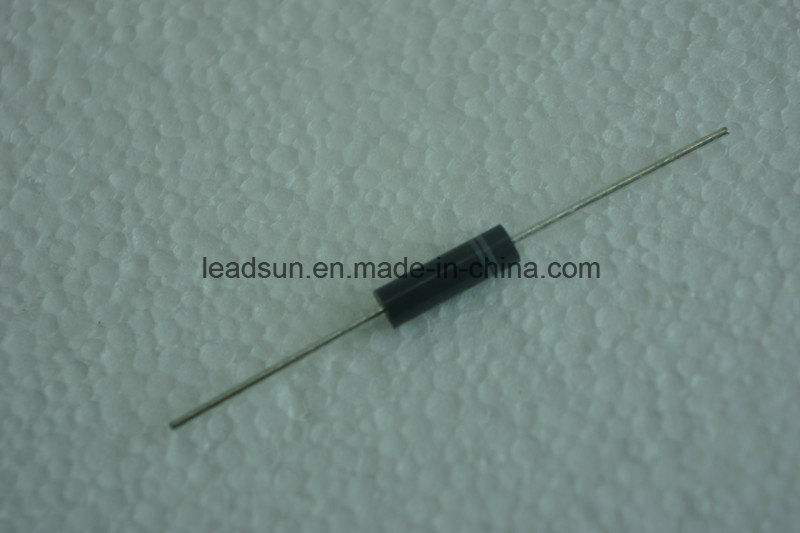

2CLG20KV/0.1A High voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube, molded in small volume and compact packaging surface by epoxy resin.

Features:
Fast recovery
Low forward on pressure,
low leakage current
Protection of avalanche breakdown
Antiimpacting of discharging of CRT
high voltage surge current
Axial lead diode, could weld on tube pin
Epoxy resin molded and can resist corrosion on its surface
Application:
Television and FBT display
Cathode ion generator, laser power supply
neon lamp power supply,
voltage multiplier assembly
DC high voltage generator assembly
MAX.RATED VALUE

Item	Symbol	Rating	Conditions	Unit
Repetitive Peak Reverses	VRRM		20	KV
Storage Temperature	Tstg		-40~+120	ºC
Average Forward Current	Io		100	mA
Forward Surge Current	IFSM		15	A

Electrical Characteristics (Tamb=25ºC,unless otherwise specified )

Item	Symbol	Condition	Rating	Unit
Normal Temperature Reverse Current	IR1	VR=VRRM·25ºC	5.0max	μA
High Temperature Reverse Current	IR2	VR=VRRM·100ºC	50max	μA
Reverse Breakdown Voltage	V	IF=100mA	35.0	V
Reverse Recovery Time	trr	IF=2mA IR=4mA	0.1	nS

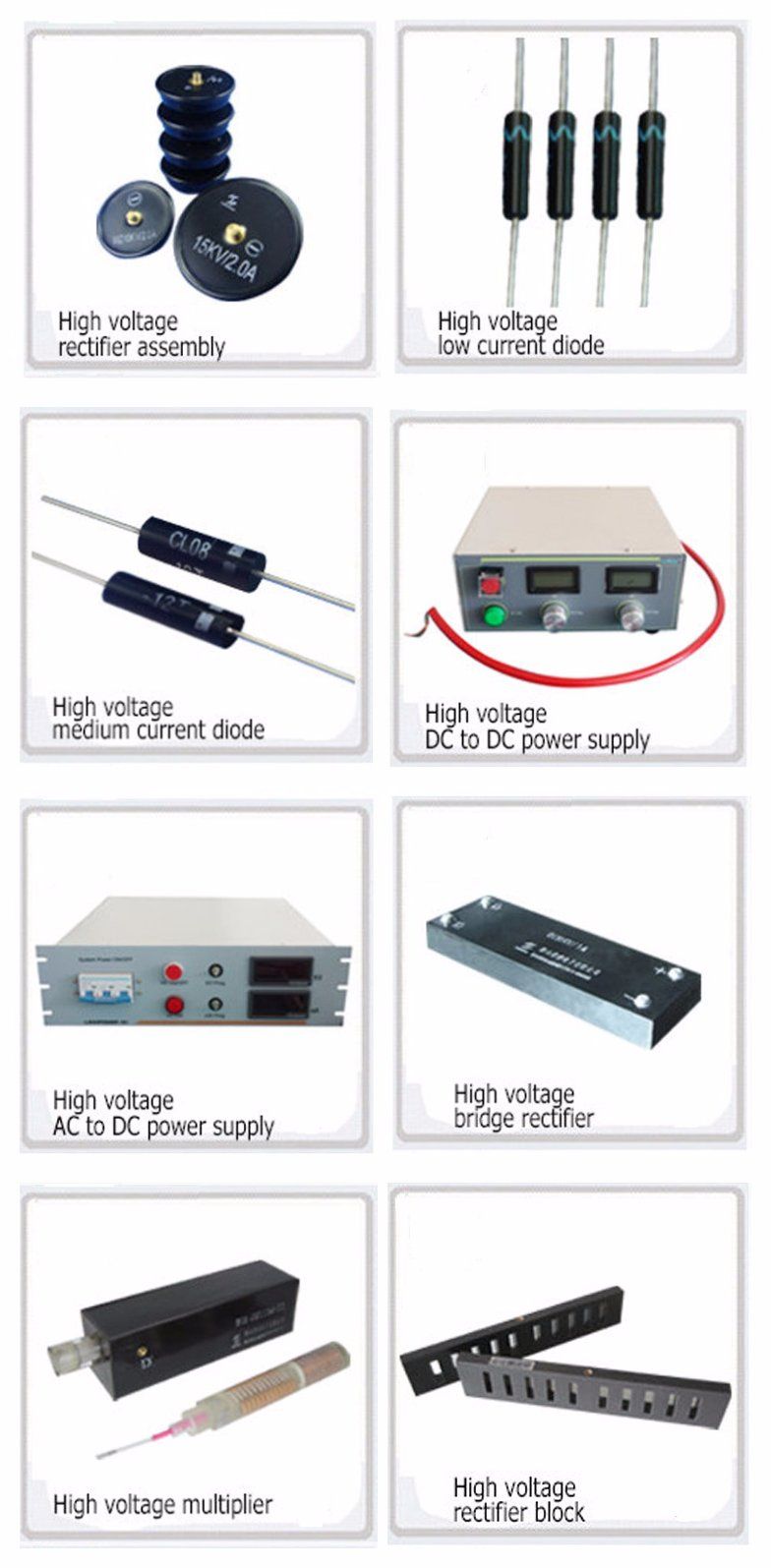

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
