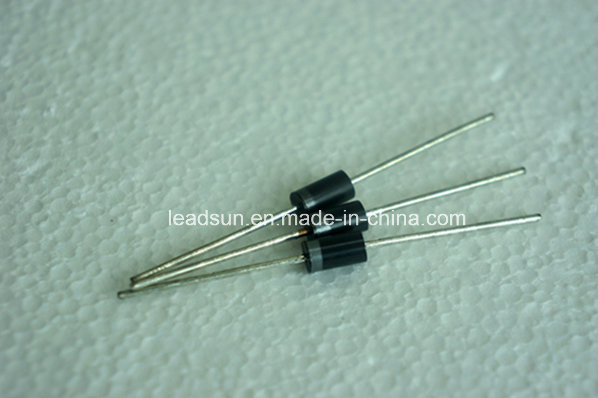

High Voltage Diode Cl01-12D High Current

Name: High Voltage Diode Cl01-12D High Current
Brand: all-electronics-online.com
SKU: 716773122
Availability: InStock
Rating: 4.4 (47 reviews)

Price:	Negotiable/Piece
Min Order:	10000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CL01-12D
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	Cl01-12D
Brand:	Leadsun

Product Description

CL01-12D High voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube, molded in small volume and compact packaging surface by epoxy resin.
Features:

Fast recoveryLow forward on pressure, low leakage currentProtection of avalanche breakdownAntiimpacting of discharging of CRT high voltage surge currentAxial lead diode, could weld on tube pinEpoxy resin molded and can resist corrosion on its surfaceApplication:

Television and FBT displayCathode ion generator, laser power supplyneon lamp power supply, voltage multiplier assemblyDC high voltage generator assembly
Absolute Maximum Ratings

Item	Symbol	Rating	Unit	Conditions
Repetitive Peak Reverses	VRRM	12	KV
Maximum Junction Temperature	Tjmax	130	ºC
Storage Temperature	Tstg	-40~+130	ºC
Average Forward Current	Io	350	mA	Tamb=50ºC
Forward Surge Current	IFSM	20	A

Electrical Characteristics (Tamb=25ºC,unless otherwise specified )

Item	Symbol	Rating	Unit	Condition
Normal Temperature Reverse Current	IR1	10max	μA	VR=8KV
High Temperature Reverse Current	IR2	20max	μA	VR=8KV Tamb=100ºC
Reverse Breakdown Voltage	VF	12	V	IF=350mA
Reverse Recovery Time	trr		nS	IF=100mA IR=200mA

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
