High Voltage Diode Cl08-08t

Name: High Voltage Diode Cl08-08t
Brand: all-electronics-online.com
SKU: 716767532
Availability: InStock
Rating: 4.7 (105 reviews)

Price:	Negotiable/Piece
Min Order:	10000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CL08-08T
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	Cl08-08t
Brand:	Leadsun

Product Description

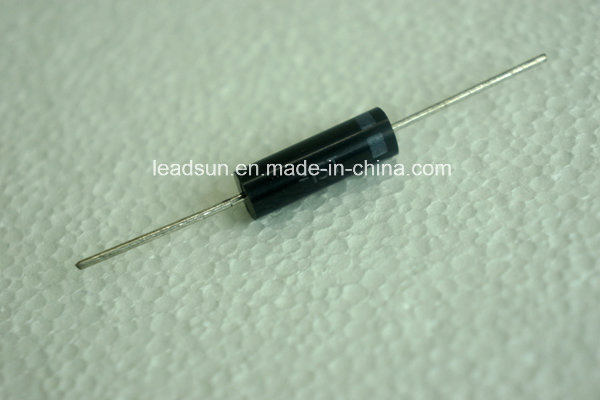

CL08-08T High voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube, molded in small volume and compact packaging surface by epoxy resin.

Features:
Fast recovery
Low forward on pressure, low leakage current
Protection of avalanche breakdown
Antiimpacting of discharging of CRT high voltage surge current
Axial lead diode, could weld on tube pin
Epoxy resin molded and can resist corrosion on its surface
Application:
Television and FBT display
Cathode ion generator, laser power supply
neon lamp power supply, voltage multiplier assembly
DC high voltage generator assembly
Absolute Maximum Ratings

Item	Symbol	Rating	Unit	Conditions
Repetitive Peak Reverses	VRRM	8	KV
Maximum Junction Temperature	Tjmax	125	ºC
Storage Temperature	Tstg	-40~+125	ºC
Average Forward Current	Io	500	mA	Tamb=50ºC
Forward Surge Current	IFSM	20	A

Electrical Characteristics (Tamb=25ºC,unless otherwise specified )

Item	Symbol	Rating	Unit	Condition
Normal Temperature Reverse Current	IR1	2.0max	μA	VR=8KV
High Temperature Reverse Current	IR2	50max	μA	VR=8KV Tamb=100ºC
Reverse Breakdown Voltage	VF	12.0	V	IF=500mA
Reverse Recovery Time	trr	100	nS	IF=100mA IR=200mA

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
