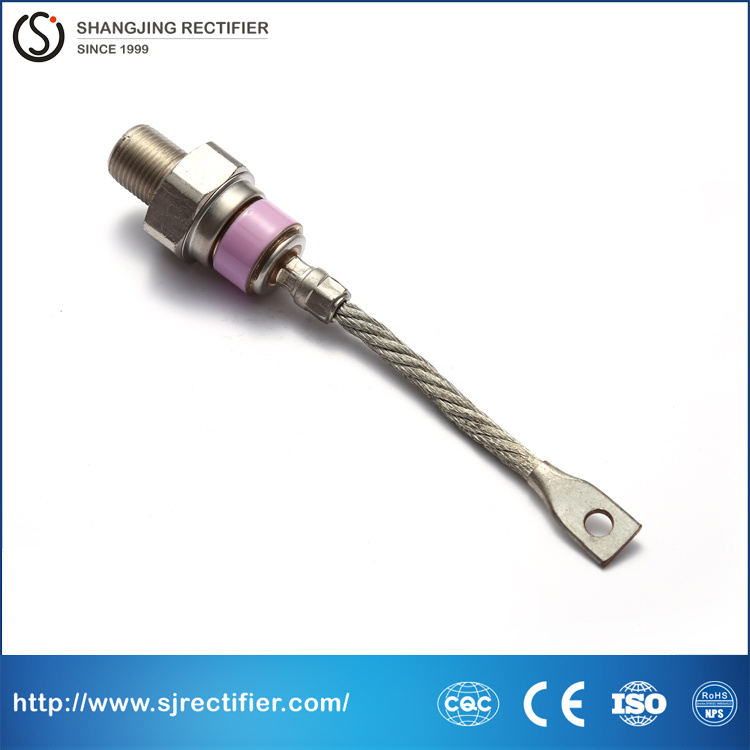

High Voltage Fast Recovery Diode

Name: High Voltage Fast Recovery Diode
Brand: all-electronics-online.com
SKU: 674444812
Availability: InStock
Rating: 4.3 (75 reviews)

Price:	US $ 0.7-4/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	250UF160
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
If(AV):	250A
Vrrm:	1600V
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Metal Ceramic Seal
Application:	Power Supplies, Machine Tool Controls,
Model:	250UF160
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
High surge current capability
Stud cathode and stud anode version
Wide current range
Metric device version available

Typical Applications
Battery charges
Converters
Power supplies
Machine tool cotrols
Welders
Motor controls

Type	I_F(AV)	V_FM/I_FM		I_F(RMS)	V_RRM	I_RRM	R_jc	t_rr	T_j	M2	Wt	Outline
	T_HS55° C	25° C
	A	V	A	A	V	mA	° C/W	μ s	° C	kN	kg
FR10F(R)	10	1.40	30	16.0	200-800	≤ 6	≤ 2.0	≤ 0.5	-40 ~ +150	≤ 1.0	0.008	DO-4
FR15F(R)	15	1.45	45	24.0	200-800	≤ 12	≤ 1.2	≤ 0.5		≤ 1.0	0.008
FR20F(R)	20	1.60	60	32.0	200-800	≤ 12	≤ 1.2	≤ 0.5		≤ 1.0	0.008
FR40HF(R)	40	1.85	120	64.0	200-1200	≤ 10	≤ 1.2	≤ 0.7		≤ 2.0	0.020	DO-5
FR50HF(R)	50	1.80	150	80.0	200-1200	≤ 10	≤ 1.2	≤ 0.7		≤ 2.0	0.020
FR70HF(R)	70	1.75	210	112.0	200-1200	≤ 12	≤ 0.8	≤ 1.0		≤ 2.0	0.020
FR80HF(R)	80	1.75	255	136.0	200-1200	≤ 12	≤ 0.8	≤ 1.0		≤ 2.0	0.020
FR100U(R)	100	1.95	300	160.0	200-1200	≤ 15	≤ 0.3	≤ 1.5		≤ 12	0.120	DO-8
FR100U(R)L	100	1.95	300	160.0	200-1200	≤ 15	≤ 0.3	≤ 1.5		≤ 12	0.140	DO-30
FR150U(R)	150	1.90	450	240.0	200-1200	≤ 20	≤ 0.2	≤ 2.0		≤ 25	0.250	DO-9
FR200U(R)	200	1.95	600	320.0	200-1200	≤ 20	≤ 0.2	≤ 2.5		≤ 25	0.250	DO-9
