High-Voltage Fuse for Overload Protection of Oil-Immersed Transformer

Name: High-Voltage Fuse for Overload Protection of Oil-Immersed Transformer
Brand: all-electronics-online.com
SKU: 831445535
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	Negotiable/Piece
Min Order:	30/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PRNT-15.5/-1.8
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Fusing Device:	Link Break

Product Description

High-voltage fuse for overload protection of oil-immersed transformer

This product applies to indoor AC 50~60Hz system with the rated voltage of 15.5kV and shall be used in series with the backup fuse for oil-immersed transformer overload protection, and can provide the full range protection for indoor power system. The product has passed the type test conducted by the national high-voltage electrical equipment quality supervision and inspection center, and conforms to GB15166.2 and IEC282-2.

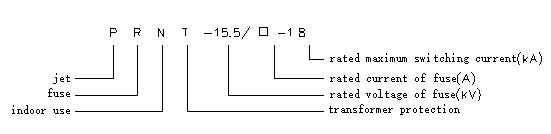

Model:

Basic parameters:

Product Model	Rated Voltage (kV)	Maximum Voltage (kV)	Rated Current (A)	Rated Maximum Breaking Current (kA)	Application Conditions
PRNT-15.5	15.5	17.2	6,10,16,25,40,50, 60,100,140	1.8	Transformer oil

Outline and installing dimensions:

Fig.2 Dimensions of the Overall and Installation
Main technical performance:

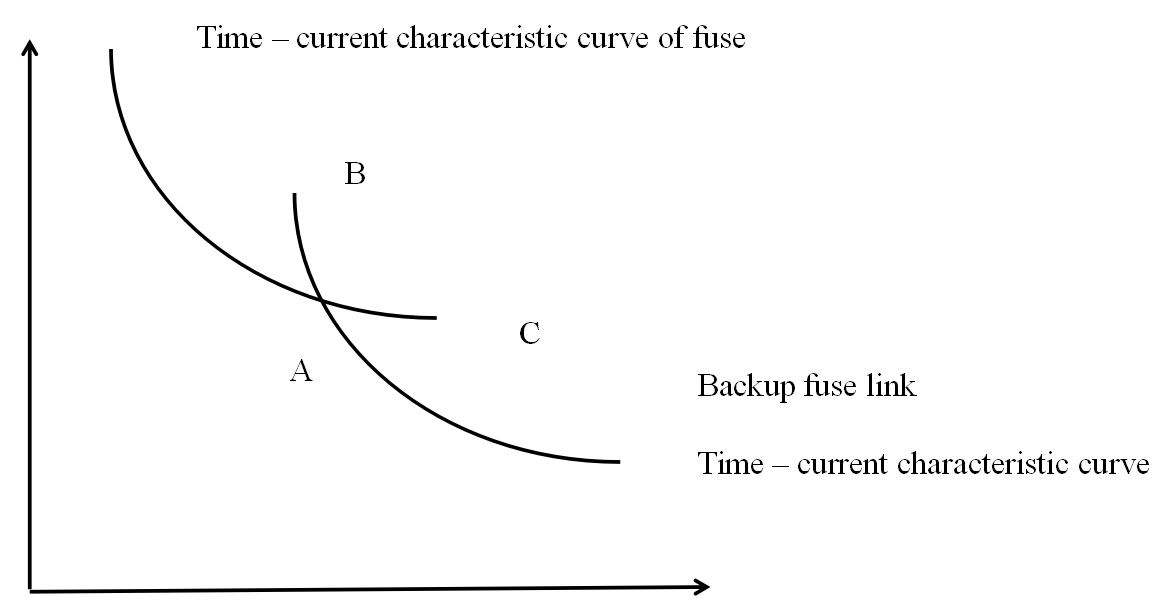

Fig.3 the fuse and backup fuse protection feature
Note: Point A: the intersection of two curves
Point B: rated minimum breaking current of backup fuse
Point C: rated maximum breaking current of fuse
During the operation, point A must be present and point B is above point A
Point C is below point A.

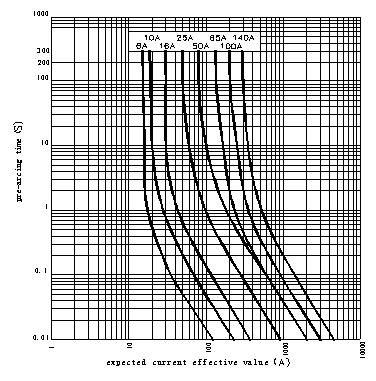

Fig. 4 Time - current characteristic curve

Installation and use
1. When mounting the fuse into the tank, ensure the oil level is within the range as shown in Fig. 2
2. When replacing the fuse, open the buckle on the handle and turn the handle for 90° to eliminate the adhesion between the sealing gasket and outer tube. Remove and replace the handle.
3. For the installation of three-phase fuse, replace all three phases unless you can confirm that the fault current passes through one phase.
